7. Place the module edges into the module guides at the top and bottom of the chassis. Slide
the module into the slot until it is fully inserted.
1. Chassis
2. System Controller
3. Hardware Module
8. Secure the module front panel to the chassis using the front-panel mounting screws.
Note
stability and also electrically connects the front panel to the chassis, which can
improve the signal quality and electromagnetic performance.
9. Cover all empty slots using EMC filler panels or fill using slot blockers to maximize
cooling air flow, depending on your application.
10. Power on the chassis.
Verifying Hardware Installation for Host Targets
You can verify that the system recognizes the NI PXIe-7867R by using Measurement &
Automation Explorer (MAX).
1. Launch MAX by navigating to Start»All Programs»National Instruments»MAX or by
clicking the MAX desktop icon.
2. Expand Devices and Interfaces.
3. Verify that the device appears under Devices and Interfaces.
If the device does not appear, press <F5> to refresh the view in MAX. If the device does
not appear after refreshing the view, visit

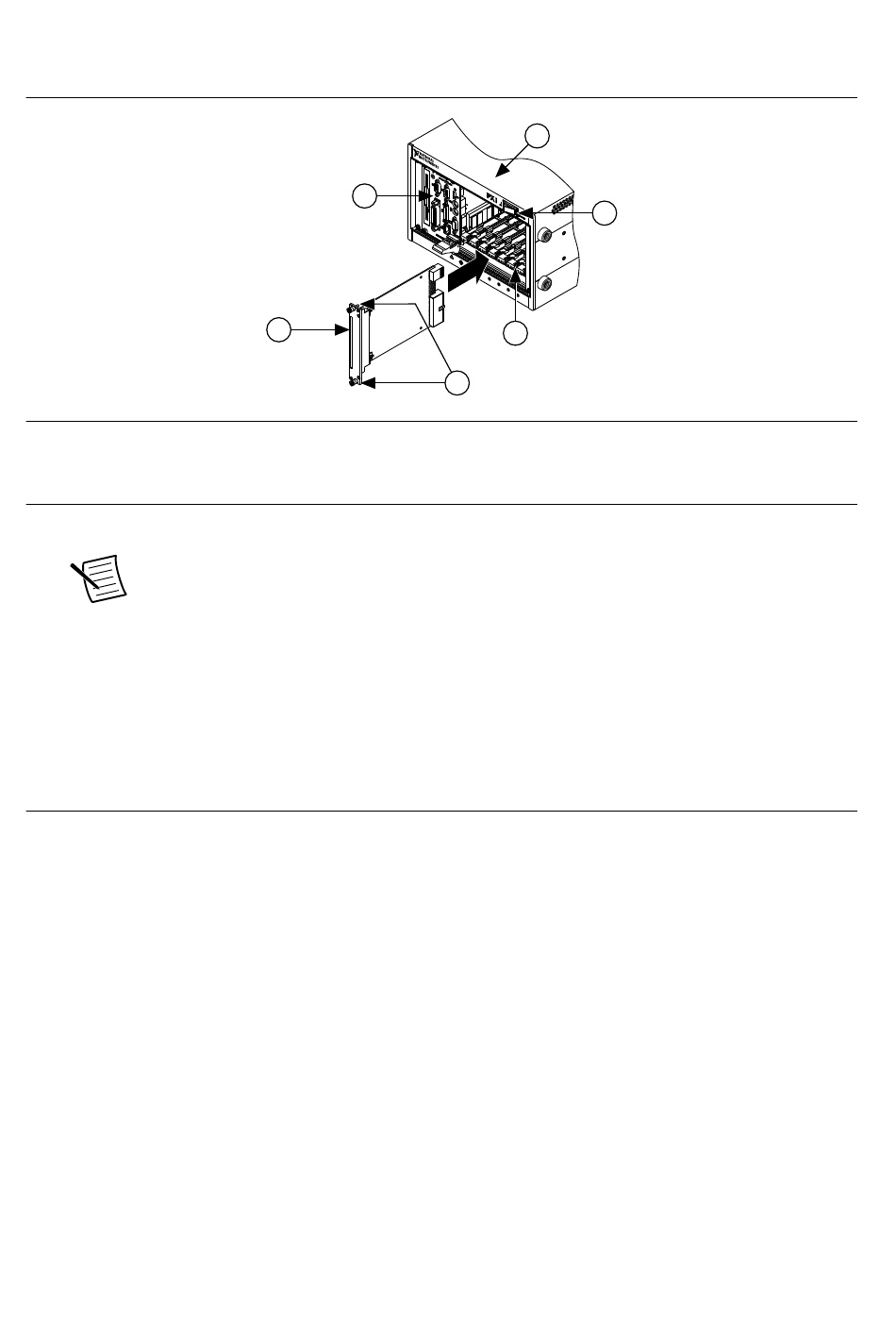

Figure 3. Module Installation
2
3
Tightening the top and bottom mounting screws increases mechanical
NI PXIe-7867R Getting Started Guide
1
P X
I - 1
0 0 0
B
6
5
4
4. Front-Panel Mounting Screws
5. Module Guides
6. Power Switch
ni.com/support for troubleshooting information.
