GrowSpan 2000 Series Manual

Hide thumbs Also See for 2000 Series:

Advertisement

Quick Links

Download this manual
GrowSpan
Series 2000
™
Steel End Frame Kits
41' Wide
©2019 GrowSpan
All Rights Reserved. Reproduction
is prohibited without permission.
Revision date: 12.06.19
STK#
GK2EW41120B
41' Wide (Base Plates)
GK2EW41120G
41' Wide (No Base Plates)

Advertisement

loading
Need help?

Need help?

Do you have a question about the 2000 Series and is the answer not in the manual?

Questions and answers

Related Manuals for GrowSpan 2000 Series

Summary of Contents for GrowSpan 2000 Series

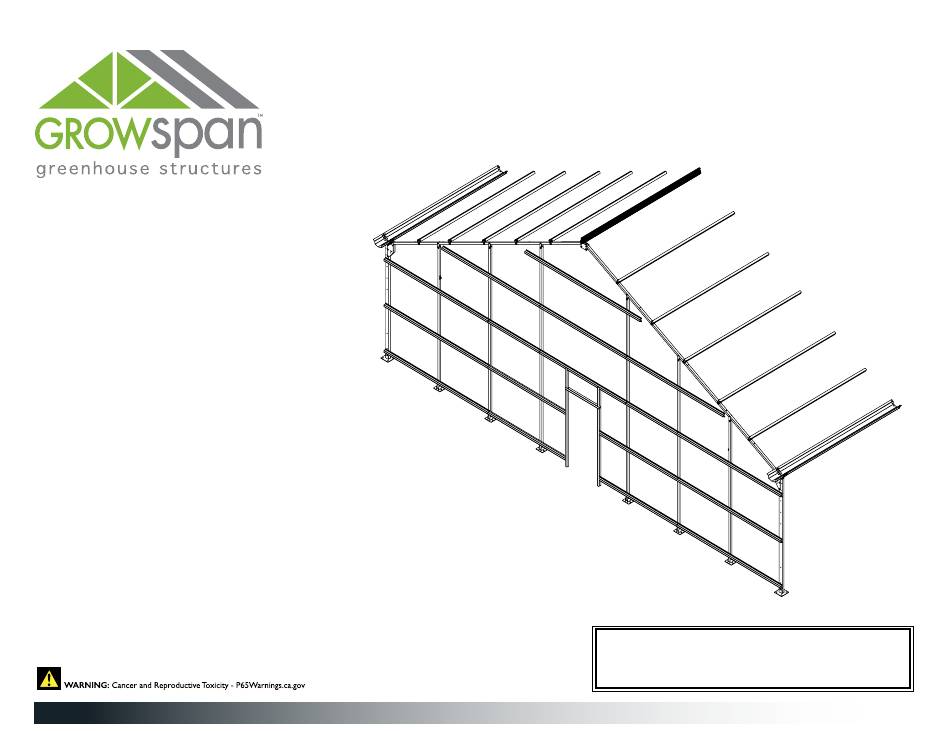

  • Page 1 GrowSpan Series 2000 ™ Steel End Frame Kits 41' Wide ©2019 GrowSpan All Rights Reserved. Reproduction STK# is prohibited without permission. GK2EW41120B 41' Wide (Base Plates) GK2EW41120G 41' Wide (No Base Plates) Revision date: 12.06.19...

  • Page 2: Safety Precautions

    Important Information READ THIS DOCUMENT BEFORE YOU BEGIN SAFETY PRECAUTIONS Thank you for purchasing this GrowSpan™ Series 2000 Steel End Frame • Wear eye, hand, and head protection. Kit. When properly assembled and maintained, this product will provide years •...

  • Page 3: Customer-Supplied Materials

    Important Information ASSEMBLY PROCEDURE UNPACK AND IDENTIFY PARTS Following these instructions helps ensure proper assembly of your end The following steps help ensure you have all parts before you begin. frame. Steps outlining assembly are as follows: 1. Unpack shipment and place where you can easily inventory parts. Refer 1.
  • Page 4 End Frame Base Plate Layout (B) 5 1/2" 1 1/4" 6" 3" 7/8" TYP. 8" 111817 DETAIL (OPTIONAL) NOTE: USE PLATE CENTERS FOR GROUND POST APPLICATION. PLATE CENTERS: ANCHOR HOLE CENTERS: GK2EW41120B_G Revision date: 12.06.19...
  • Page 5 End Frame Solid (B) 4'-0" 2'-7" TOP OF POST 1'-5" 4'-0" 4'-0" GROUND LEVEL 5'-4" 5'-4" 5'-4" 9'-0" 5'-4" 5'-4" 5'-4" 41'-0" NOTES: GIRT/DOOR FRAME ALL DIMENSIONS ARE FROM CENTER TO CENTER UNLESS OTHERWISE NOTED. GRT2X2G16L144 (16 GA PROFILE) GT 111635 (14 GA PROFILE) GIRTS/FRAMING CHANNEL MAY REQUIRE FIELD CUTTING TO FIT.
  • Page 6 End Frame Diagram: Door Frame (B) 4'-0" 2'-7" TOP OF POST 1'-5" 4'-0" VERIFY DOOR ROUGH OPENING 5/8"FROM GROUND LEVEL 4'-0" TO BOTTOM OF COLUMN GROUND LEVEL 2'-0" 5'-4" 5'-4" 5'-4" 9'-0" 5'-4" 5'-4" 5'-4" EMBEDMENT 41'-0" NOTES: GIRT/DOOR FRAME ALL DIMENSIONS ARE FROM CENTER TO CENTER UNLESS OTHERWISE NOTED.
  • Page 7 Vent End Frame Diagram (B) IMPORTANT: IF A GUILLOTINE VENT WAS PURCHASED TO INSTALL IN THE END WALL, CONSULT THE INSTRUCTIONS INCLUDED WITH THAT KIT FOR REQUIRED VENT DIMENSIONS AS THEY MAY DIFFER FROM THOSE SHOWN. 4'-0" 1'-1 3/8" TOP OF POST 2'-10 5/8"...
  • Page 8 End Frame (G): Vertical Supports Layout Concrete to anchor vertical supports (required). 5'-4" 5'-4" 5'-4" 9'-0" 5'-4" 5'-4" 5'-4" 41'-0" GK2EW41120B_G Revision date: 12.06.19...
  • Page 9 End Frame Solid (G) ATTENTION: See End Frame Connections Details 1-4 showing how to anchor vertical end wall columns in concrete. 4'-0" 2'-7" TOP OF POST 1'-5" 4'-0" 5/8"FROM GROUND LEVEL 4'-0" TO BOTTOM OF COLUMN GROUND LEVEL 2'-0" 5'-4" 5'-4"...
  • Page 10 End Frame Diagram: Door Frame (G) 4'-0" 2'-7" TOP OF POST 1'-5" 4'-0" VERIFY DOOR ROUGH OPENING 5/8"FROM GROUND LEVEL 4'-0" TO BOTTOM OF COLUMN GROUND LEVEL 2'-0" 5'-4" 5'-4" 5'-4" 9'-0" 5'-4" 5'-4" 5'-4" EMBEDMENT 41'-0" NOTES: GIRT/DOOR FRAME ALL DIMENSIONS ARE FROM CENTER TO CENTER UNLESS OTHERWISE NOTED.
  • Page 11 Vent End Frame Diagram (G) ATTENTION: See End Frame Connections IMPORTANT: IF A GUILLOTINE VENT WAS PURCHASED TO INSTALL IN THE END Details 1-4 showing how to anchor vertical WALL, CONSULT THE INSTRUCTIONS end wall columns in concrete. INCLUDED WITH THAT KIT FOR REQUIRED VENT DIMENSIONS AS THEY MAY DIFFER FROM THOSE SHOWN.
  • Page 12 End Frame Connections (B & G) VIEW 2 - COLUMN TO TOP CHORD VIEW 3 - COLUMN TO GIRT (NON-SPLICE) VIEW 1 - COLUMN TO BASE PLATE/GIRT (BASE PLATE OPTION) VIEW 1A - COLUMN TO GIRT (GROUND POST OPTION) VIEW 4 - LATERAL BRACE TO COLUMN GK2EW41120B_G Revision date: 12.06.19...
  • Page 13 End Frame Connections Details 1-4 (B & G) ENDWALL COLUMN ENDWALL GIRT ENDWALL GIRT ENDWALL COLUMN ENDWALL GIRT ENDWALL GIRT -(4X) #14 X 1" TEK SCREW -(4X) #14 X 1" TEK SCREW -(1X) BASE PLATE ( 111817) -(1X) 1/2" X 3-1/2" HEX BOLT (A325) -(2X) 1/2"...
  • Page 14 End Frame Connections—Door Option (B & G) VIEW 5 - DOOR JAMB TO GIRT (ONLY APPLIES TO DOOR ENDWALL OPTION) VIEW 6 - DOOR HEADER TO JAMB (ONLY APPLIES TO DOOR ENDWALL OPTION) VIEW 7 - DOOR JAMB ANCHOR/GIRT (BASE PLATE OPTION) (ONLY APPLIES TO DOOR ENDWALL OPTION) GK2EW41120B_G Revision date: 12.06.19...
  • Page 15 End Frame Connections Details 5-7—Door Option (B & G) DOOR JAMB ("C" CHANNEL) ENDWALL GIRT - (2X) WAFER HEAD SCREW #10 X 3/4 - (1X) #14 X 1" TEK SCREW - (2X) WAFER HEAD SCREW #10 X 3/4 - (2X) WAFER HEAD SCREW #10 X 3/4 - (1X) #14 X 1"...
  • Page 16 Aluminum Angle Installation Option—Base Plates Only (B) IN SOME INSTANCES, ALUMINUM ANGLE IS REPLACED WITH 113301 ALUMINUM TUBING. SEE NEXT PAGE. ATTENTION: INSTALL BOTTOM RUN OF GIRT AFTER INSTALLING THE ALUMINUM ANGLE. PRE-DRILL MOUNTING HOLES IN ALUMINUM; SPACE AT 12"-16" ON CENTER.
  • Page 17 Aluminum Square Tube Installation Option—Base Plates Only (B) RUN OF GIRT AFTER INSTALLING THE ALUMINUM TUBING. PRE-DRILL MOUNTING HOLES IN ALUMINUM; SPACE AT 12"-16" ON CENTER. APPLY SEALANT (112263) UNDER ALUMINUM THEN SECURE TO CONCRETE USING CONCRETE FASTENERS INCLUDED WITH KIT. TO PREVENT LEAKS AT THIS CONNECTION, INSTALL PC PANEL OVER GIRT AND ALUMINUM.
