GrowSpan 500 Series Assembly Instructions Manual

Door kits, double sliding door, twin-wall/corrugated polycarbonate
Hide thumbs Also See for 500 Series:
Table of Contents

Advertisement

Quick Links

Download this manual

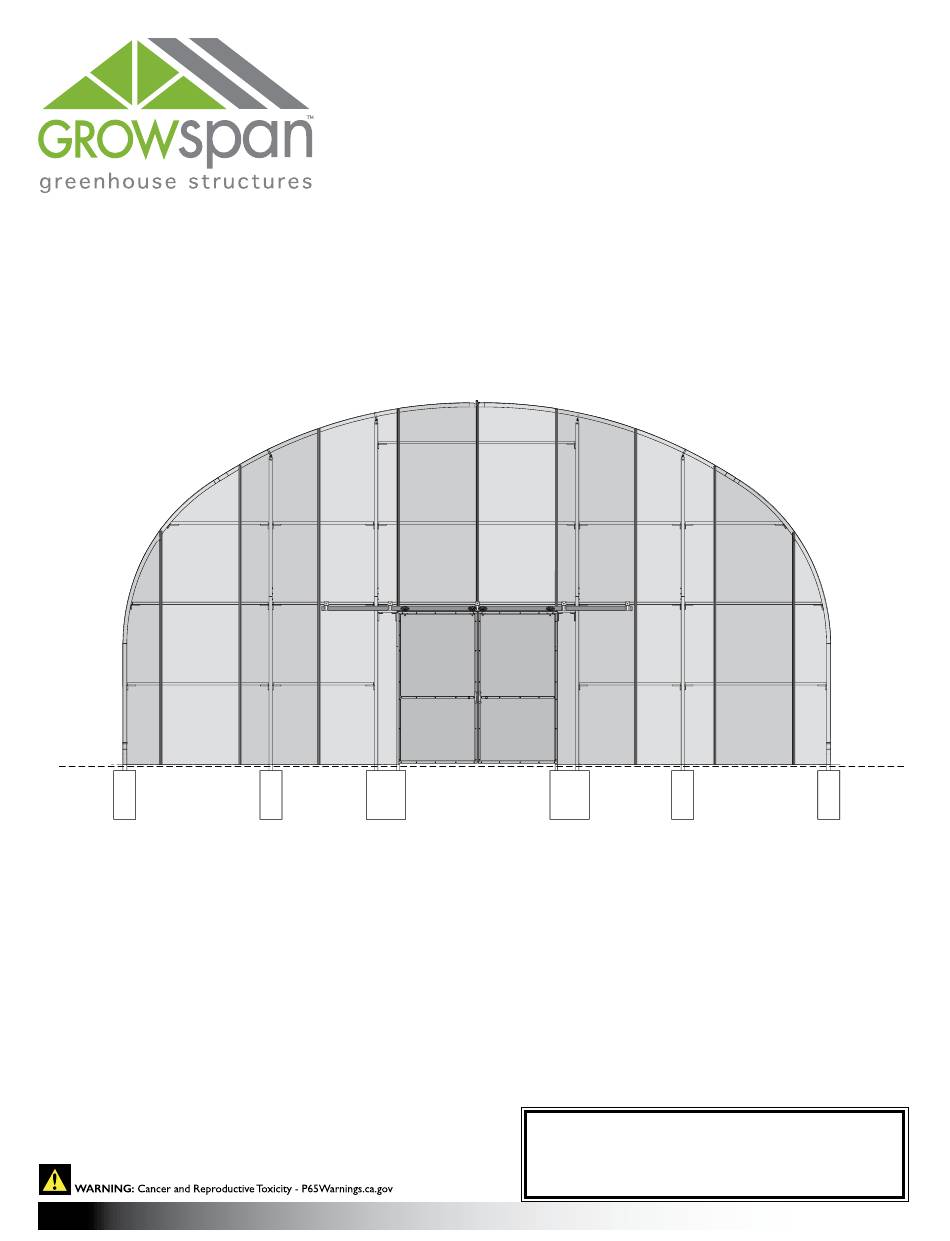

Diagram shows a double-sliding door centered and installed in an end wall frame. The door kit includes materials
for the door only. All other components shown in the diagram above and other diagrams throughout this guide
are not included and require additional purchase.
Finished Grade
©2019 GrowSpan
All Rights Reserved. Reproduction
is prohibited without permission.
Revision date: 04.30.19
GrowSpan
Series 500
™
Door Kits
Double Sliding Door
Finished Grade
STK#
GS05KDR2SLT (Twin-Wall Polycarbonate)
GS05KDR2SLC (Corrugated Polycarbonate)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 500 Series and is the answer not in the manual?

Questions and answers

Related Manuals for GrowSpan 500 Series

Summary of Contents for GrowSpan 500 Series

  • Page 1 All other components shown in the diagram above and other diagrams throughout this guide are not included and require additional purchase. Finished Grade Finished Grade ©2019 GrowSpan All Rights Reserved. Reproduction STK# is prohibited without permission.

  • Page 2: Table Of Contents

    Table of Contents DOUBLE SLIDING DOOR KIT: READ BEFORE YOU Important Information ..........3 BEGIN Bearing Hangers ............5 Door Frame Assembly ..........6 The double sliding door kit is designed to attach Stay Roller Assembly ..........7 to any of these end frame kits: GS05KEW20G72, Sliding Door Track Assembly ........8 GS05KEW24G72, GS05KEW30G72 and Adjust Doors .............11...

  • Page 3: Important Information

    BEGIN TO ASSEMBLE THE DOOR KIT. • Variable speed drill (cordless with extra batteries works the best) Thank you for purchasing this GrowSpan™ door kit. • Drill bit set with 7/16" and 1/2" drill When properly assembled and maintained, this product will provide years of reliable service.
  • Page 4 Important Information ASSEMBLY PROCEDURE PARTS IDENTIFICATION Following the instructions as presented will help ensure The following graphics and photos will help identify the the proper installation of the end frame and door. The different hardware for each door kit. (Some parts are not steps outlining the assembly process are as follows: shown.) 1.

  • Page 5: Bearing Hangers

    Bearing Hangers ASSEMBLE AND INSTALL SLIDING DOORS — OVERVIEW The general steps to install the sliding doors are as follows: 1. Assemble the 102923 door frames. 2. Attach bearing hangers to the door frames. 3. Construct the rough opening in end wall frame. 4.

  • Page 6: Door Frame Assembly

    Door Frame Assembly ASSEMBLING THE DOOR FRAME COMPONENTS Consult the diagrams at the back of these instructions before you begin. Assistance is required to assemble the door frame and door. The following steps describe one way to assemble the door frame and door. 1.

  • Page 7: Stay Roller Assembly

    Stay Roller Assembly ASSEMBLE AND ATTACH STAY ROLLERS Reattach the roller and related parts to the angled bracket ATTENTION: Stay roller assembly is attached to the door attached to the end wall frame. jamb on the same side the door is on when in the open position.

  • Page 8: Sliding Door Track Assembly

    Sliding Door Track Assembly ATTACH DOOR TRACK Gather the parts: • FAK26 3/8" threaded rods, FALB04B 3/8" nuts, FAME18B 3/8" SS flat washers, FAMA38B lock washers, and FAME52B 3/8" flat washers • FA4484B Tek screws and 102921B neo-bonded washers • 100377 door tracks and 100380 hanger brackets for door track Complete these steps to install the slider door tracks (100377).
  • Page 9 Sliding Door Track Assembly ATTACH DOOR TRACK (continued) Mark bracket positions on end wall cladding. Space brackets evenly along the length of slider track. For corrugated panels, drill 7/16" mounting holes in the valleys of the panels. Shift brackets left or right as needed. Drill one 7/16"...
  • Page 10 Sliding Door Track Assembly ATTACH DOOR TRACK (continued) 4. Install the mounting brackets and door tracks. See diagrams below. NOTE: For polycarbonte panels, install as many FAME52B washers as needed to prevent the track brackets from touching the panel when installed, then secure with the nut, lock washer and flat washer. See diagrams below. Track bracket with track installed.

  • Page 11: Adjust Doors

    Adjust Doors INSTALL AND ADJUST SLIDING DOOR Space below is reserved for customer notes. Complete these steps: 1. With assistance, carefully lift doors into position and slide bearing hangers into the end of the door track. 2. Slide doors to the closed position. 3.

  • Page 12: Twin-Wall Single Sliding Door Assembly

    Twin-Wall Single Sliding Door Assembly TWIN-WALL DOOR ASSEMBLY 5. Using 115581 screws and galvanized neo-bonded washers, attach panel to horizontal cross tube of door If your door kit includes a corrugated polycarbonate frame. Evenly space Tek screws and washers every panel, skip this section and continue with the 12"...
  • Page 13 Twin-Wall Single Sliding Door Assembly TWIN-WALL DOOR ASSEMBLY (continued) 11. Install two Tek screws through the front of the door track at each end to prevent the doors from sliding out 7. Take the 115581 screws and, using the 100448 bit of the track.

  • Page 14: Corrugated Single Sliding Door Assembly

    Corrugated Single Sliding Door Assembly CORRUGATED DOOR ASSEMBLY Valley The materials and parts needed to assemble the door include: • Door frame (102923) and corrugated panel (104620) • Tek screws (FA4484B) Corrugated Panel NOTE: Verify that the horizontal closure strip under •...
  • Page 15 Corrugated Single Sliding Door Assembly CORRUGATED DOOR ASSEMBLY (continued) Install the 104548 profile along the end wall door frame as shown in the following photos. 7. With assistants, lift door up and into place with the panel facing out and insert the hangers into the track. ATTENTION: Installation of the 104548 profile is an 8.

  • Page 16: Shelter Care And Maintenance

    Shelter Care and Maintenance SHELTER CARE AND MAINTENANCE Proper care and maintenance of the door are important. Space below is reserved for customer notes. Check the following items periodically to properly maintain the door and door frame: • Regularly check the polycarbonate panels to see that they remain secure and in good condition.

  • Page 17: Quick Start Guide

    Quick Start Guide ATTENTION: End frame and end rafter are not included with any door kit. Actual width of the building end wall may differ. QUICK START GUIDE Double Sliding Door Kit (GS05KDR2SLT and GS05KDR2SLC) Twin-Wall Door Sample GS05KDR2SLT Finished Grade Finished Grade Corrugated Door Sample GS05KDR2SLC...

  • Page 18: Door Frame Layout

    Revision date: 04.30.19...

  • Page 19: Door Frame Detail Connections

    Revision date: 04.30.19...
