Connecting the appliance

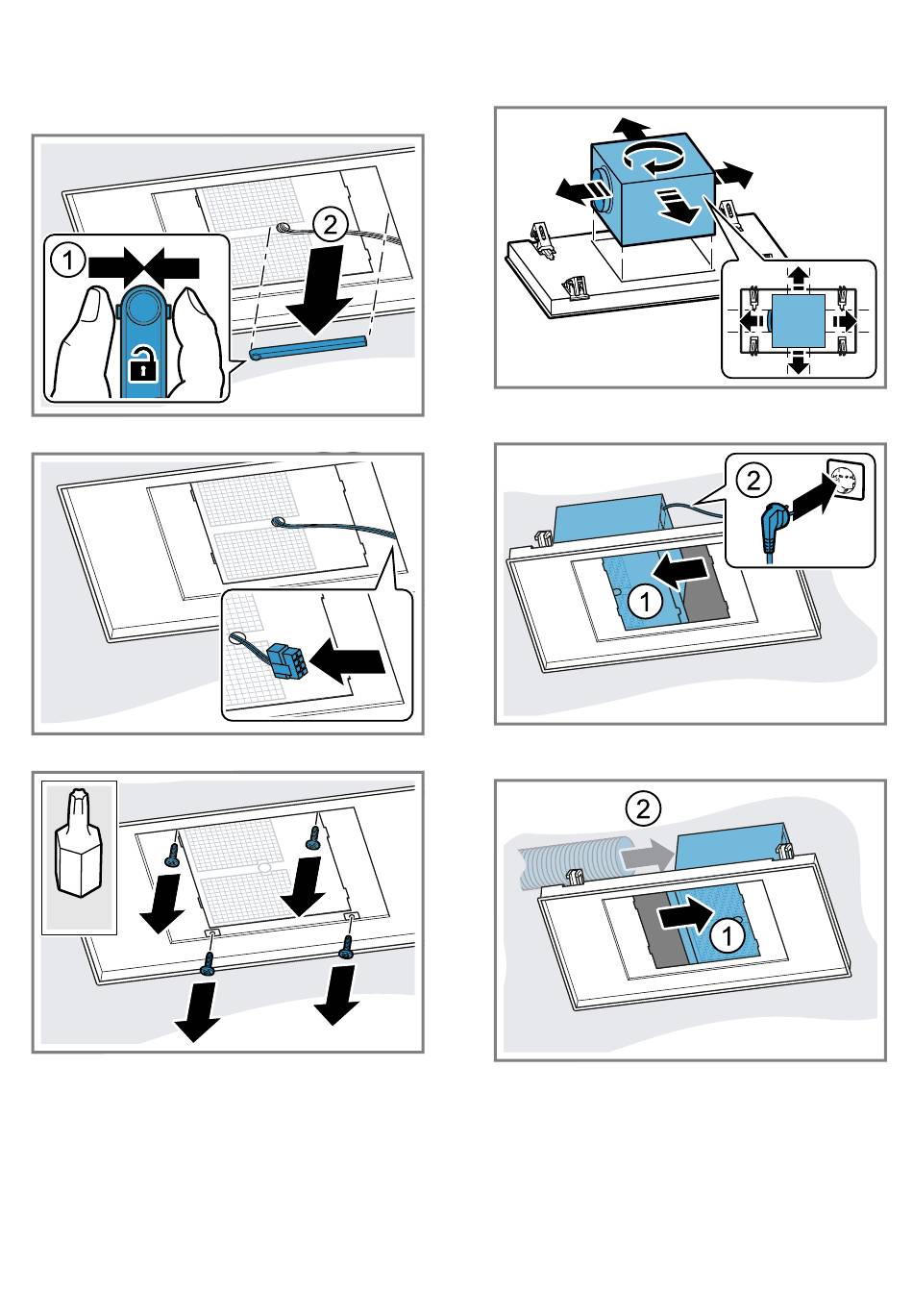

Press together the cable duct at the sides and re-
1.
move it.
Disconnect the cable at the appropriate point.
2.
Undo the opposite screws to loosen the fan box.
3.
T 20
Turn the fan box into the correct position according
4.
to the installation situation.
Push the fan box to the side and connect the appli-
5.
ance to the power supply.
Push the fan box to the other side and connect the
6.
pipework.
Position the fan box in the centre and screw it firmly
7.
in place.
