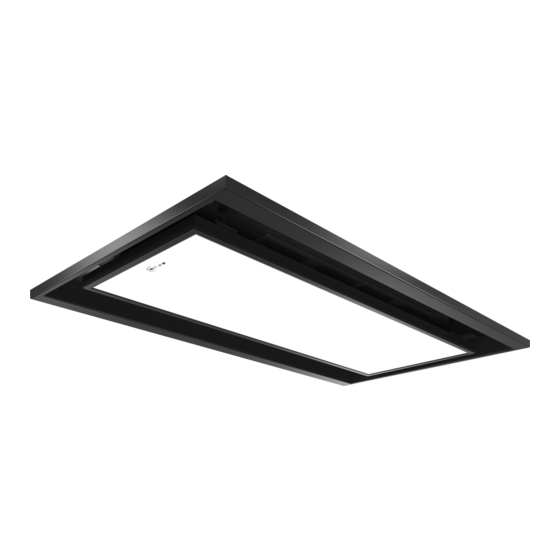

Ceiling-mounted ventilation system
Hide thumbs
Also See for I97CQS9S5:
- User manual and assembly instructions (24 pages) ,
- User manual and installation instructions (24 pages) ,
- User manual and assembly instructions (24 pages)
Subscribe to Our Youtube Channel
Related Manuals for NEFF I97CQS9S5
Summary of Contents for NEFF I97CQS9S5
- Page 1 Ceiling-mounted ventilation system [en] User manual and installation in- structions I95CPS8W5, I97CQS9S5...
-
Page 2: Table Of Contents
en Safety Only use this appliance: Table of contents ¡ For extracting cooking vapour. ¡ In private households and in enclosed spaces in a domestic environment. INFORMATION FOR USE ¡ Up to an altitude of max. 2000 m above sea level. Safety .............. 2 Do not use the appliance: Preventing material damage ....... - Page 3 Safety en WARNING ‒ Risk of poisoning! WARNING ‒ Risk of fire! Risk of poisoning from flue gases being Fatty deposits in the grease filters may catch drawn back in. Room-air-dependent heat-pro- fire. ducing appliances (e.g. gas, oil, wood or coal- ▶ Never operate the appliance without a operated heaters, continuous flow heaters or grease filter.
-
Page 4: Safety
en Safety WARNING ‒ Risk of injury! WARNING ‒ Risk of electric shock! Components inside the appliance may have If the appliance or the power cord is dam- sharp edges. aged, this is dangerous. ▶ Carefully clean the appliance interior. ▶ Never operate a damaged appliance. Items placed on the appliance may fall off. -
Page 5: Preventing Material Damage
Preventing material damage en 2 Preventing material damage If you put incorrect stress on the design elements, they 2.1 Avoiding material damage may break off. ATTENTION! Do not pull design elements. ▶ Condensate may cause corrosion damage. Do not place objects on the design elements or ▶... - Page 6 en Operating modes 4.2 Air recirculation mode The air which is drawn in is cleaned by the grease fil- ters and an odour filter, and conveyed back into the room. To bind odours in circulating-air mode, you must install an odour filter. The dif- ferent options for operating the appli- ance in circulating-air mode can be found in our catalogue.
-
Page 7: Familiarising Yourself With Your Appliance
Familiarising yourself with your appliance en 5 Familiarising yourself with your appliance 5.1 Controls Switch the fan run-on on or off Home Connect You can use the control panel to configure all functions of your appliance and to obtain information about the Reset the filter saturation indicator operating status. - Page 8 en Basic operation 7.2 Switching off the appliance 7.10 Intermittent ventilation Switch the appliance off when you are not using it. With interval ventilation, the ventilation system switches on and off in the selected setting for the selected time. Press to switch the appliance off. ▶...
- Page 9 Home Connect en Press and hold and for approx. three seconds. 7.14 Resetting the saturation indicator a In the LED display, the LED for the setting that is After cleaning the grease filter or after changing the currently selected lights up.
-
Page 10: Hob-Based Hood Control
en Hob-based hood control ¡ We recommend that you install security updates as soon as possible. ¡ Installation takes a few minutes. You cannot use your appliance during installation. 8.4 Remote diagnostics Customer Service can use Remote Diagnostics to ac- cess your appliance if you contact them, have your ap- pliance connected to the Home Connect server and if Remote Diagnostics is available in the country in which you are using the appliance. -
Page 11: Cleaning And Servicing
Cleaning and servicing en 10 Cleaning and servicing To keep your appliance working efficiently for a long Observe the information regarding the cleaning time, it is important to clean and maintain it carefully. agents. → "Cleaning products", Page 11 Clean as follows, depending on the surface: 10.1 Cleaning products Clean stainless steel surfaces in the direction of ‒... - Page 12 en Cleaning and servicing Press the lock on the filter cover. ATTENTION! The grease filters may become damaged if they are squeezed. Do not squeeze the grease filters. ▶ Note: When cleaning the grease filter in the dish- washer, light discolouration may occur. This discoloura- tion has no effect on the performance of the metal grease filters.
-
Page 13: Troubleshooting
Troubleshooting en Remove the empty batteries. 10.8 Replacing the batteries in the remote control WARNING ‒ Risk of injury! Children may swallow batteries. Keep batteries out of the reach of children. ▶ Keep an eye on any children when you are repla- ▶ cing batteries. Batteries may explode. -
Page 14: Accessories
Long Life recirc. kit ex- Z52JCD0W0 your appliance in our catalogue, in the online shop or ternal white from our after-sales service. Long Life odour filter (re- Z50XXP0X0 www.neff-international.com placement) Clean Air Plus odor filter Z53XXB1X6 Accessories Order number (replacement) -
Page 15: Disposal
2014/53/EU. A detailed Declaration of Conformity can be found on- A detailed RED Declaration of Conformity can be found line at www.neff-home.com/uk among the additional online at www.neff-international.com among the addi- documents on the product page for your appliance. - Page 16 en Installation instructions 16.1 Included with the appliance After unpacking all parts, check for any damage in transit and completeness of the delivery. 16.3 Dimensions You will find the dimensions of the appliance here 16.2 Safety clearances Comply with the safety clearances for the appliance.
-
Page 17: Installation Instructions
Installation instructions en Risk of poisoning from flue gases being 16.4 Secure installation drawn back in. Follow these safety instructions when in- ▶ If an extractor hood with an open-flued heat stalling the appliance. production source is installed, the power WARNING ‒ Risk of poisoning! supply for the extractor hood must be Risk of poisoning from flue gases being provided with a suitable safety switch. - Page 18 en Installation instructions The appliance may fall down if it has not been If the appliance or the power cord is dam- properly fastened in place. aged, this is dangerous. ▶ All fastening components must be fixed ▶ Never operate a damaged appliance. firmly and securely in place.
- Page 19 Installation instructions en ¡ To optimally detect the cooking vapours, install the ¡ Only a licensed professional may connect appli- appliance in the middle of the hob. ances without plugs. They are subject to the require- ments of the local electricity provider. 16.6 Instructions for the exhaust air pipe 16.8 General information The appliance manufacturer does not provide any war-...
- Page 20 en Installation instructions Note: Avoid scratching the side covers as they are Connecting the appliance within view. Press together the cable duct at the sides and re- Remove the side covers. move it. Disconnect the cable at the appropriate point. Installing the appliance WARNING ‒ Risk of injury! Components inside the appliance may have sharp edges.
- Page 21 Installation instructions en Push the fan box to the side and connect the appli- Fitting the filter cover ance to the power supply. WARNING ‒ Risk of injury! Components inside the appliance may have sharp edges. Wear protective gloves. ▶ Risk of injury when opening and closing the hinges. Keep your hands away from the hinges.
- Page 22 en Installation instructions Check whether the appliance frame is lying flush. Note: The metal cover has sharp edges. Protect the filter cover against scratches. Appliance variant A: Retighten the screws if necessary. Undo the screws on the hinges up to approx. 7 mm. Do not loosen them fully. Unhook and remove the filter cover.
- Page 23 Installation instructions en Press together the cable duct at the sides and re- Loosen the mounting brackets. Push the removal move it. slide inwards. Disconnect the cable at the appropriate point. Slowly take the appliance out of the cutout. Loosen the screws on the side covers. Remove the side covers.
- Page 24 Valid within Great Britain: Imported to Great Britain by BSH Home Appliances Ltd. Grand Union House Old Wolverton Road Wolverton, Milton Keynes MK12 5PT United Kingdom *9001487470* 9001487470 BSH Hausgeräte GmbH Carl-Wery-Straße 34 020708 81739 München, GERMANY...
