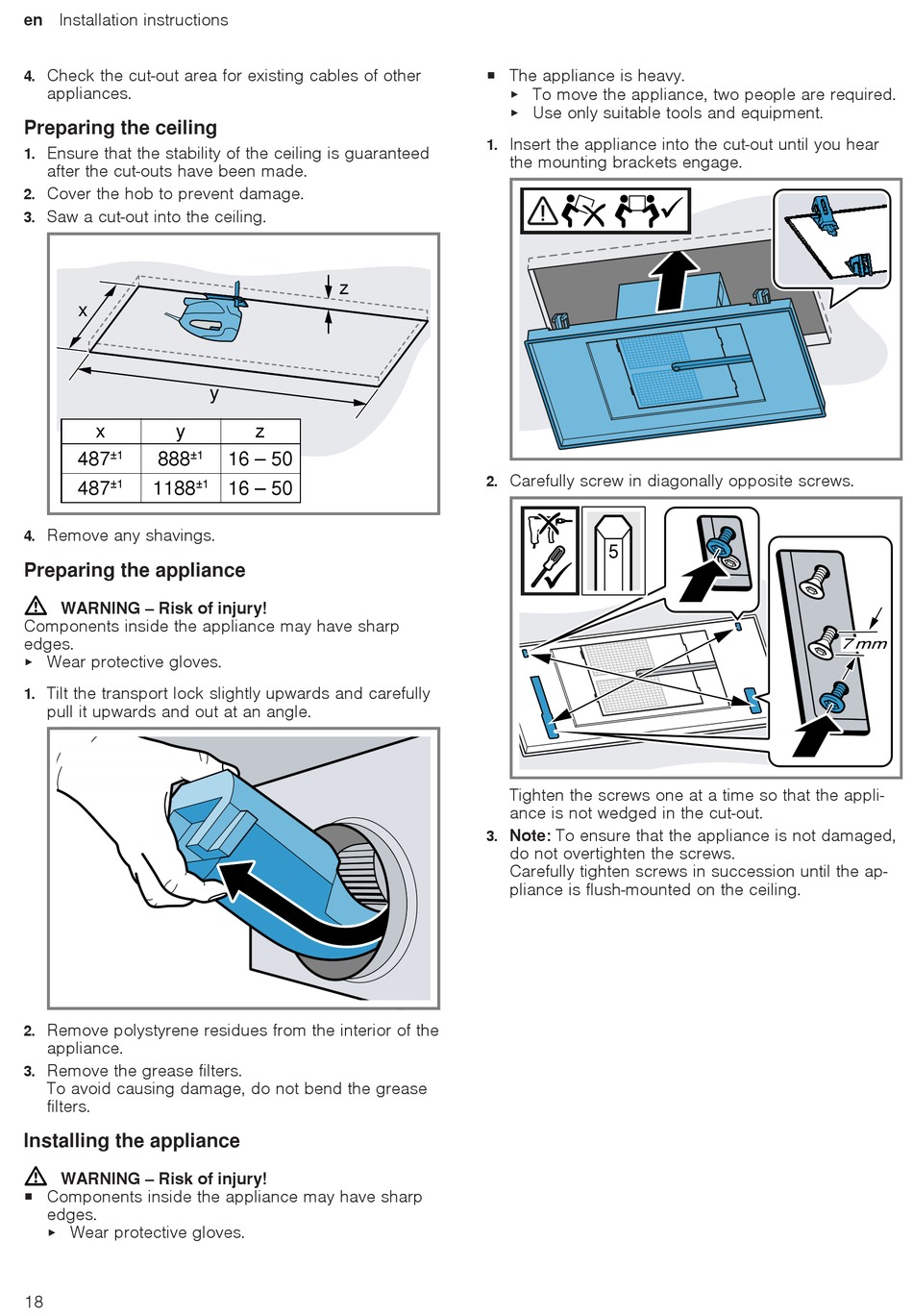

NEFF I95CBS8W0 Series User Manual And Assembly Instructions page 18

en Installation instructions
Check the cut-out area for existing cables of other
4.
appliances.
Preparing the ceiling
Ensure that the stability of the ceiling is guaranteed
1.
after the cut-outs have been made.
Cover the hob to prevent damage.
2.
Saw a cut-out into the ceiling.
3.
x
x y
487 ±1 888 ±1
487 ±1 1188 ±1
Remove any shavings.
4.
Preparing the appliance
WARNING ‒ Risk of injury!
Components inside the appliance may have sharp
edges.
Wear protective gloves.
▶
Tilt the transport lock slightly upwards and carefully
1.
pull it upwards and out at an angle.
Remove polystyrene residues from the interior of the
2.
appliance.
Remove the grease filters.
3.
To avoid causing damage, do not bend the grease
filters.
Installing the appliance
WARNING ‒ Risk of injury!
¡ Components inside the appliance may have sharp
edges.
Wear protective gloves.
▶
18
z
y
z
16 – 50
16 – 50
¡ The appliance is heavy.
To move the appliance, two people are required.
▶
Use only suitable tools and equipment.
▶
Insert the appliance into the cut-out until you hear
1.
the mounting brackets engage.
Carefully screw in diagonally opposite screws.
2.
5
Tighten the screws one at a time so that the appli-
ance is not wedged in the cut-out.
Note: To ensure that the appliance is not damaged,
3.
do not overtighten the screws.
Carefully tighten screws in succession until the ap-
pliance is flush-mounted on the ceiling.
