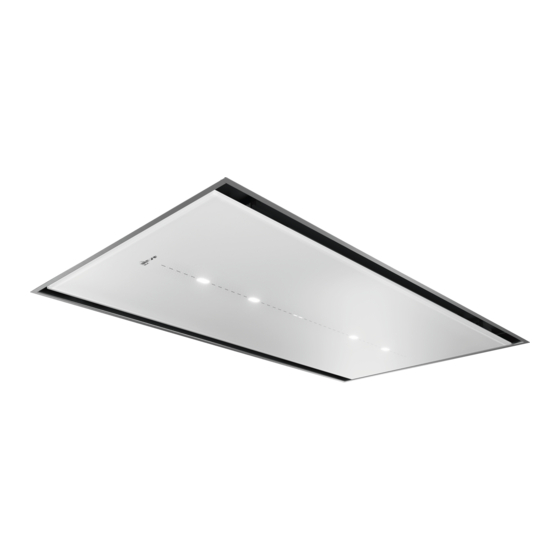

Ceiling-mounted ventilation system
Hide thumbs
Also See for I95CBS8W0 Series:
- User manual and installation instructions (24 pages) ,
- User manual and installation instructions (24 pages)
Related Manuals for NEFF I95CBS8W0 Series
Summary of Contents for NEFF I95CBS8W0 Series
- Page 1 Ceiling-mounted ventilation system [en] User manual and assembly instructions I95CBS8W0., I25CBS8W0., I25CBS8W0., I97CPS8W5., I97CQS9S5...
-
Page 2: Table Of Contents
en Safety The appliance can only be used safely if it is Table of contents correctly installed according to the safety in- structions. The installer is responsible for en- Safety ................ 2 suring that the appliance works perfectly at its Preventing material damage ........ - Page 3 Safety en installed and discharge the exhaust gases ▶ Do not install the appliance near a into the open through an exhaust gas sys- solid fuel heating appliance (e.g. wood- tem (e.g. a chimney). With the extractor or coal-burning) unless the heating ap- hood switched on, air is extracted from pliance has a sealed, non-removable the kitchen and the adjacent rooms.
-
Page 4: Preventing Material Damage
en Preventing material damage ¡ Changes to the electrical or mechanical ▶ Never pull on the power cord to unplug assembly are dangerous and may lead to the appliance. Always unplug the appli- malfunctions. ance at the mains. ▶ Do not make any changes to the elec- ▶... -
Page 5: Environmental Protection And Saving Energy
Environmental protection and saving energy en ¡ If moisture gets into the controls, this may result in If cooking produces large amounts of steam, select a damage. higher fan speed in good time. Never clean controls with a wet cloth. ▶ The odours are distributed around the room less. -
Page 6: Before Using For The First Time
en Before using for the first time Controls Infrared receiver Depending on the appliance specifications Use the remote control to set all of the functions of your appliance. Tip: Align the remote control as precisely as possible to the infrared receiver for the LED display. Before using for the first time Configure the settings for initial start-up. - Page 7 Basic operation en If the interval ventilation is switched on, LED 6 continu- Selecting a fan setting ously flashes in the LED display for the interval ventila- Press or . tion and the LED for the selected fan setting lights up. ▶...
-
Page 8: Hob-Based Hood Control
en Hob-based hood control Requirements Hob-based hood control ¡ After the appliance has been switched off, LED 1 flashes in the LED display for the grease filter satura- tion display and/or LED 2 flashes for the saturation You can connect your appliance to a suitable hob and, indicator for the odour filter. - Page 9 Home Connect en The Home Connect services are not available in every Press the WPS button on the router within the next country. The availability of the Home Connect function 2 minutes. depends on the availability of Home Connect services a If the connection has been established, the appli- in your country.
-
Page 10: Cleaning And Servicing
▶ LED display. Declaration of Conformity a An audible signal sounds. Constructa Neff Vertriebs-GmbH hereby declares that the appliance with Home Connect functionality meets Remote diagnostics the essential requirements and other relevant provi- Customer Service can use Remote Diagnostics to ac- sions of the Directive 2014/53/EU. - Page 11 Cleaning and servicing en ¡ Risk of falling when working on the appliance Cleaning the stainless steel surfaces Observe the information regarding the cleaning agents. → "Cleaning products", Page 10 Clean using a sponge cloth and hot soapy water in the direction of the finish. Dry with a soft cloth.
- Page 12 en Cleaning and servicing ATTENTION! Falling grease filters may damage the WARNING ‒ Risk of fire! hob below. Fatty deposits in the grease filters may catch fire. Grip below the grease filter with one hand. ▶ Clean the grease filters regularly. ▶ Open the locks on the grease filters. Requirement: The grease filters have been removed.
-
Page 13: Troubleshooting
Troubleshooting en Remove the empty batteries. Close the cover. Dispose of the empty batteries in an environmentally friendly manner. Troubleshooting You can rectify minor faults on your appliance yourself. Read the troubleshooting information before contacting after-sales service. This will avoid unnecessary costs. WARNING ‒ Risk of injury! Improper repairs are dangerous. -
Page 14: Customer Service
en Customer Service Fault Cause troubleshooting LED 1 flashes in the LED display. The grease filters are saturated. → "Cleaning grease filters in the dish- ▶ washer", Page 12 → "Cleaning grease filters manually", ▶ Page 12 LED 2 flashes in the LED display. The odour filters are saturated. Change the odour filter. -
Page 15: Installation Instructions
Installation instructions en Dispose of batteries in an environmentally friendly Safety clearances ▶ manner. Comply with the safety clearances for the appliance. Only for EU countries: According to the European Guideline 2006/66/EC, defective or used bat- tery packs/batteries, must be collec- ted separately and disposed of in an environmentally correct manner. - Page 16 en Installation instructions WARNING ‒ Risk of poisoning! WARNING ‒ Risk of injury! Risk of poisoning from flue gases being drawn back in. ¡ Components inside the appliance may have sharp Room-air-dependent heat-producing appliances (e.g. edges. gas, oil, wood or coal-operated heaters, continuous Wear protective gloves. ▶...
- Page 17 Installation instructions en ¡ Improper installation is dangerous. WARNING ‒ Risk of electric shock! Connect and operate the appliance only in ac- ▶ ¡ It must always be possible to disconnect the appli- cordance with the specifications on the rating ance from the electricity supply. The appliance must plate.
- Page 18 en Installation instructions Check the cut-out area for existing cables of other ¡ The appliance is heavy. appliances. To move the appliance, two people are required. ▶ Use only suitable tools and equipment. ▶ Preparing the ceiling Insert the appliance into the cut-out until you hear Ensure that the stability of the ceiling is guaranteed the mounting brackets engage.
- Page 19 Installation instructions en Turn the fan box into the correct position according Connecting the appliance to the installation situation. Press together the cable duct at the sides and re- move it. Push the fan box to the side and connect the appli- ance to the power supply.
- Page 20 en Installation instructions Connect the cable. Mount the filter cover on the designated screws and push it backwards/forwards depending on the key hole opening into the narrow section. Press together the cable duct at the sides and at- tach. Tighten the fastening screws on the hinges. Fitting the filter cover Check whether the appliance frame is lying flush.
- Page 21 Installation instructions en Note: The metal cover has sharp edges. Protect the ¡ Components inside the appliance may have sharp filter cover against scratches. edges. Appliance variant A: Wear protective gloves. ▶ ¡ Risk of injury when opening and closing the hinges. Keep your hands away from the hinges.
- Page 22 en Installation instructions Undo the opposite screws to loosen the fan box. T 20 Push the fan box to the side and release the pipe- work. Push the fan box to the other side and pull out the mains plug. Screw the fan box firmly back in place. Loosen the mounting brackets.
- Page 24 *9001487515* Constructa-Neff Vertriebs-GmbH 9001487515 Carl-Wery-Straße 34 81739 München (000219) GERMANY...
