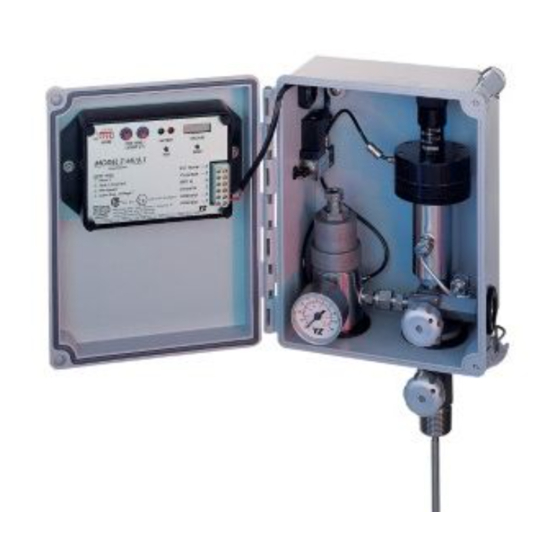

DynaPak Gas Sampler
S Y S T E M
S U P P O R T
M A N U A L
DP-2010RXNLF

Advertisement

Table of Contents
loading

Related Manuals for YZ Systems DynaPak 2010 Series

Summary of Contents for YZ Systems DynaPak 2010 Series

  • Page 1 DynaPak Gas Sampler S Y S T E M S U P P O R T M A N U A L DP-2010RXNLF...
  • Page 3 DynaPak 2010RXNLF System Support Manual Version 08202001 Systems, Inc. • 3101 Pollok Drive • Conroe, Texas • • 77303 • 936.788.5793 • 936.788.5720 DP-2010RXNLF 08202001 ATEX Rev.

  • Page 4: Table Of Contents

    Table Of Contents 1. Introduction 2. System Components 3. Theory of Operation 4. Sampler Location 5. Sampler Installation 6. Sample Vessel Installation 7. Operational Check & Leak Testing 8. Sampler Set-Up: time-based sampling 9. Sampler Set-Up: time-based sampling with the DPS-2 10.

  • Page 5: Introduction

    1. Introduction Congratulations on your purchase of the DynaPak 2010 Series Sampler. You've made a wise measurement investment for your company. Before you begin installation, insure that all of the necessary components are present. You will need a sample cylinder(s) during the installation. If you have questions concerning installation/ operation, contact your YZ representative or YZ Customer Service at 936.788.5593.

  • Page 6: Theory Of Operation

    3. Theory of Operation DynaPak 2010 Gas Sampler C. Proportional-to-flow sampling - in this mode The DynaPak 2010R Sampler is an off the pipe- of operation, the Z-65 counter operates as a line mounted system which uses the pneumati- dividing counter. The Z-65 counter periodically cally operated, positive displacement DynaPak energizes a low power solenoid valve.

  • Page 7: Sampler Location

    4. Sampler Location 4.1 The sampler should be connected to the pipeline using stainless steel tubing and a sample probe. The sample probe should be located a minimum of five pipe diameters from any device which could cause aerosols or significant pressure drops.
  • Page 8 5. System Installation **CAUTION Incorrect operation of valves (over tightening) can result in damage to the valve components (isolation valve bonnet assembly) which might result in the valve stem being screwed out of the probe body. This of course results in product at pipeline pressure being vented continually through this port until this section of the pipeline is shut in.
  • Page 9 5. System Installation 5.2 Optional DPS-2 Maximum Pipeline Pressure is 1500 psi, when using this option. Black a. With the low pressure supply valve and the high pressure supply valve closed, connect the DPS-2 to the orifice connection tubing. Clear Factory b.

  • Page 10: Sample Vessel Installation

    6. Sample Vessel Installation 6.1 Variable pressure/constant volume cylinders. Spun cylinders may be installed in a horizontal position on the DynaPak BackRack vessel rack. Avoiding traps in the line, install stainless steel tubing and fittings from the sample discharge port of the sampler to the product end of the sample cylinder.

  • Page 11: Operational Check & Leak Testing

    7. Operational Check & Leak Testing 7.1 When all of the tubing connections have been completed, close the purge valve on the front of the sampler probe body. Open the sample probe supply valve to allow pipeline pressure into the sampler. Check all connections using a liquid leak detector.

  • Page 12: Sampler Set-Up: Time-Based Sampling

    8. Sampler Set-Up - Time-based sampling 8.1 Calculate the sampling rate using the following 30 day chart: Number of turns sample Sample cylinder volumes open on pump pump stroke knob displacement 1000 cc 300 cc 500 cc per stroke .100 .200 Sample rate...
  • Page 13 8. Sampler Set-Up - Time-based sampling 8.3 Adjust the pump volume adjustment knob to the value used in the calculations in step 8.1. Number of turns open on the pump volume knob Sample pump displacement per stroke .1cc .2cc .4cc Factory Mutual System...
  • Page 14 9. Sampler set-up - .0time-based sampling with the Optional DPS-2 9.1 Calculate the sampling rate using the following 30 day chart Number of turns sample Sample cylinder volumes open on pump pump stroke knob displacement 1000 cc 300 cc 500 cc per stroke .100 .200...
  • Page 15 9. Sampler set-up - time-based sampling with the Optional DPS-2 9.3 Adjust the pump volume adjustment knob to the value used in the calculations in step 9.1. Sample pump displacement per stroke Number of turns open on the pump volume knob .1cc .2cc .4cc...

  • Page 16: Sampler Set-Up: Proportional- To-Flow Sampling

    10. Sampler set-up - proportional-to-flow sampling In this mode of operation, the Z-65 controller is used as a dividing counter to control the rate at which the pump is actuated. The desired time between pump strokes is controlled by the host computer or output device that will give an input pulse to the Z-65 controller.
  • Page 17 10. Sampler set-up - proportional-to-flow sampling 10.4 Calculate the counter setting using the following chart: 1. your pump displacement (from .1 to .4cc’s) a.__________ 2. your sample cylinder volume in cc’s (300cc, 500cc, etc.) b.__________ 3. average flow rate (MMCF per day or MCM per day) c.__________ 4.

  • Page 18: Sampler Maintenance

    11. Sampler maintenance 11.1 Recommended preventative maintenance f. Remove the diaphragm housing from the pump schedule body by unscrewing the diaphragm housing and Every sampling situation is unique. Below are our carefully pulling the plunger out of the pump body. recommendations for average conditions.
  • Page 19 11. Sampler maintenance g. Remove the internal bushings and o-rings from the pump body by inserting a nonmetallic rod (larger than 1/4", smaller than 1/2") into the top of the pump body. Gently tap to remove all bushings and o-rings out the bottom of the pump body. h.
  • Page 20 NOTE: Follow the illustration to assure proper Battery Pack battery wire placement in the Z-65 enclosure. 5. Return the mode switches to their original positions. 6. Send your depleted battery to: YZ Systems, Inc. 206 Lubbock Hwy. Snyder, TX 79549 USA...
  • Page 21 11. Sampler maintenance 11.4 Recommended spare parts for the DynaPak 2000 Series gas samplers Part Number Description Qty. Location C4-0004 Filter element see diagrams #3 and #4 D3-0002 DP-2000 pump seal kit see diagrams #1 and #2 D3-0003 YZ filter regulator repair kit see diagrams #3 and #4 D3-0142 Z-65/200 fuse replacement kit...

  • Page 22: Trouble Shooting

    12. Troubleshooting - Timer Mode 12.1 Mechanical Operation Test A. Set the mode switches as follows: 1. Positions 1, 2 and 3 on. 2. Position 4 off. B. Set the time switches to 00 to enter the diagnostic mode. This mode enables the user to Factory Mutual increase the solenoid output rate to one pulse...
  • Page 23 12. Troubleshooting - Timer Mode E. This will cause all six digits to become active on the stroke counter. Depress the reset. The stroke counter should increment 000000, 111111, etc., up to 999999 each time the solenoid fires. When the counter display reads 999999, the test is complete.
  • Page 24 12. Troubleshooting - Timer Mode 12.4 Timer Range Setting 2. Z-65/6.03 Range Setting: a. x.x minutes: set the configuration jumper to the far left position (factory setting). b. .xx minutes: set the configuration jumper to the center position. Factory Mutual System Approved Note: To obtain maximum battery life, choose the...
  • Page 25 12. Trouble Shooting - Counter Mode 12.5 Input Pulse Test A. Set the mode switches as follows: 1. Position 1 and 3 on, 2 and 4 off. B. Set the count switches to 00 to enter the diagnostic mode. This mode enables the user to Factory Mutual System...
  • Page 26 Diagram #1- DP 2000NLF pump (assembled) Volume Adjustment Set Screw Knob P/N C0-0096 P/N B1-0002 P/N B1-0059 Volume Adjustment Detent P/N B1-0030 O-Ring (010) P/N A5-1010 Volume Adjustment Spring Stroke Adjustment P/N C3-0005 Screw Assembly P/N B1-0004 Upper Diaphragm Housing Cap Screw P/N B1-0054 (6 Each)

  • Page 27: Dp-2000 Pump (Exploded)

    Diagram #2 - DP 2000NLF pump (exploded) Set Screw *Seal P/N C0-0096 P/N A6-0018 Spring Retainer Bushing Volume Adjustment Knob P/N B1-0011 P/N B1-0002 P/N B1-0059 Discharge Check Valve Spring O-Ring (010) P/N C3-0007 P/N A5-1010 Cap Screw (6 Each) Discharge Check Valve Sleeve P/N C0-0014 P/N B1-0014...

  • Page 28: Diagrams

    Diagram #3 YZ filter/regulator (assembled)

  • Page 29: Yz Filter Regulator (Exploded)

    Diagram #4 YZ filter/regulator (exploded) Adjustment Screw P/N A3-0066 O-Ring (214) * P/N A5-1214 Pneumatic Body Fitting P/N A3-0074 P/N A1-0113 Pneumatic Fitting P/N A1-0113 Bonnet P/N A3-0067 Tubing Fitting Spring Cap P/N A1-0117 P/N A3-0068 Pressure Gauge P/N A8-0016 Piston Spring O-Ring (120) * P/N C3-0009...

  • Page 30: Linkplus

    Diagram #5 - LinkPlus Pressure Gauge Part Numbers 0-100 PSI (LinkPlus Model No. C1-0002) P/N A8-0010 0-300 PSI (LinkPlus Model No. C1-0003) P/N A8-0008 0-600 PSI (LinkPlus Model No. C1-0004) P/N A8-0011 0-1000 PSI (LinkPlus Model No. C1-0005) P/N A8-0007 0-2000 PSI (LinkPlus Model No.

  • Page 31: Dps-2

    Diagram #6 Optional - DPS-2 Cable Assembly (30 Ft.) P/N G2-0002 Strain Relief P/N H2-1001 Shrink Wrap P/N H2-0002 (Qty. 2) Reed Switch P/N E1-0003 SS Bolt P/N C0-0047 (Qty. 8) P/N A9-5001 Set Screw P/N C0-0005 Diaphragm Body Low Pressure P/N A9-5002 Magnet P/N E0-5001...

  • Page 32: 65 Controller

    Diagram #7 - Z-65 Controller Qty. Ref. No. Description Part No. Z-65/6 Controller Assembly Model Z-65/6.1 F2-0001 Model Z-65/6.03 F2-0018 Battery Pack E3-2001 Stroke Counter Assembly G1-0001 Terminal Strip, 6 Position H1-0001 BCD Switch E1-0001 Mode Switch E1-0002 Face Plate Model Z-65/6.1 A9-3001 Model Z-65/6.03...

  • Page 33: 65 Installation Notes/Wiring Control Documentation

    Diagram #8 - Z-65 Installation Notes/Wiring Control Documentation System Installation Notes and Recommendations Systems, Inc. • 3101 Pollok Drive • Conroe, Texas • • 77303 • 936.788.5793 • 936.788.5720 DP-2010RXNLF 08202001 ATEX Rev.
  • Page 34 Diagram #9 - DuraSite Portable Sample Vessel Instructions Purpose: The DuraSite Portable Sample Vessel permits the STEP 3: FOR DIRECT CONNECTION TO user to remove a liquid or gas hydrocarbon sample from a SAMPLER. pipeline or a sampling device. This is accomplished without changing the pressure of the product or exposing it to a 3a: Connect the sampler discharge port to the product inlet port contaminant fluid.
  • Page 35 DuraSite-9 Sample Vessel, (3600 psi maximum working pressure) Valve Seat P/N A3-0063 Purge Valve Nut P/N A3-0080 YZ UniValve Product Head P/N C6-1000 Stainless Steel Hex Nuts P/N C0-0355 Back-Up Washer Gauge P/N A5-4222B P/N A8-0070 Magnetic Volume Indicator P/N C6-1203 (DS9-150) P/N C6-1303 (DS9-300) O-Ring P/N C6-1403 (DS9-500)

  • Page 36: Notes

    Notes...
  • Page 37 Notes...
  • Page 38 YZ has been advised of the possibility of such damages. Information contained in this document is subject to change without notice and does not represent a commitment on the part of YZ Systems, Inc. All prices quoted are in U.S. dollars, F.O.B. Snyder, Texas. NJEX is a trademark of YZ Systems, Inc. All other product names and/or registered trademarks are the property of their respective holders.
