- Page 1 CPCI Case System 6/7 U User’s Manual Product No.: 24579-612 December 16, 2010 Doc-No: 63972-261_R1.1...
- Page 2 Rev. Date updated Change R1.0 February 16, 2009 Initial Release R1.1 December 16, 2010 New ATX PSU, ECN 10/2345 Impressum: Schroff GmbH D-75334 Straubenhardt, Germany The details in this manual have been carefully compiled and checked - supported by certified Quality Management System to EN ISO 9001/2000 The company cannot accept any liability for errors or misprints.
-
Page 3: Table Of Contents
CPCI Case System 6/7 U 24579-612 Table of Contents Safety ......................... 1 Intended Application .................... 1 Safety Instructions ....................2 1.2.1 Safety Symbols used in this document ..........2 General Safety Precautions................. 2 Product Definition..................... 3 References and Architecture Specifications ............3 Case System Overview .................. - Page 4 CPCI Case System 6/7 U 24579-612 www.schroff.biz R1.1, December 16, 2010...
-
Page 5: Safety
CPCI Case System 6/7 U Safety 24579-612 1 Safety 1.1 Intended Application The CompactPCI (CPCI) system, described in this manual, is intended as a platform for a microcomputer system based on the CompactPCI Standard PICMG 2.0 Rev.3. The CPCI case systems are designed for protection class IP 20 and can be used only in the resp. -
Page 6: Safety Instructions
CPCI Case System 6/7 U Safety 24579-612 1.2 Safety Instructions The intended audience of this User’s Manual is system integrators and hardware/software engineers. 1.2.1 Safety Symbols used in this document Hazardous voltage! This is the electrical hazard symbol. Familiarise yourself with the danger of electrical voltages and the safety precautions to avoid accidents before starting to work with parts that carry dangerous voltages. -
Page 7: Product Definition

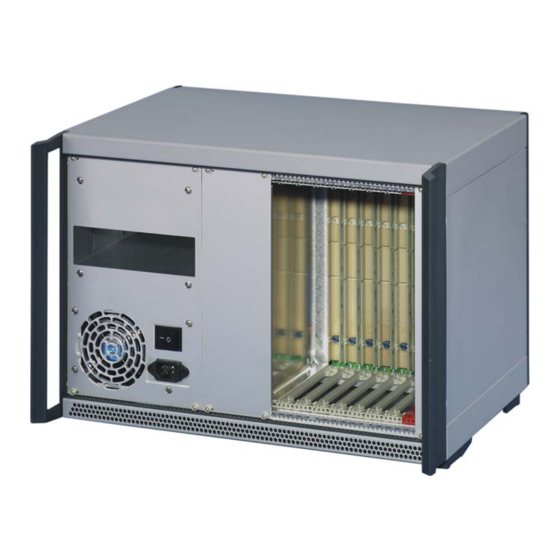

CPCI Case System 6/7 U Product Definition 24579-612 2 Product Definition The Schroff CPCI case system consists of: • A shielded ratiopacPRO-air case with front and rear card cage for 6 U boards according to CompactPCI Standard PICMG 2.0 Rev.3 •... -
Page 8: Subrack
CPCI Case System 6/7 U Product Definition 24579-612 2.3 Subrack The 7 U case is based on the Schroff ratiopacPRO-air system with EMC shielding. The card cage enables the assembly of 8 CPCI front boards (6 U, 4 HP, 160 mm deep) and 8 Rear I/O Boards (6 U, 4 HP, 80 mm deep). The lower guide rails of the card cage are equipped with ESD clips. -
Page 9: Power Supply
CPCI Case System 6/7 U Product Definition 24579-612 2.5 Power Supply Hazardous voltage! Parts of the power supply may be exposed with hazardous voltage. Always remove mains/line connector before carry out any assembly work. Caution! Your system has not been provided with a AC power cable. Purchase a AC power cable that is approved for use in your country. -
Page 10: Cooling
CPCI Case System 6/7 U Product Definition 24579-612 2.6 Cooling The CPCI boards are cooled by forced air convection through two 12 VDC radial fans (36 m³/h (21 cfm)). The operating temperature is from 0°C to 50°C. Caution! To maintain proper airflow, all open slots must be covered with filler panels. The filler panel should include an airflow baffle that extends to backplane. -
Page 11: Installation
CPCI Case System 6/7 U Installation 24579-612 3 Installation 3.1 General Installation Guidelines 3.1.1 Unpacking Caution! When opening the shipping carton, use caution to avoid damaging the system. Consider the following when unpacking and storing the system: • Leave the system packed until it is needed for immediate installation. •... -
Page 12: Service
CPCI Case System 6/7 U Service 24579-612 4 Service 4.1 Technical support and Return for Service Assistance We generally recommend to return the complete system. For all product returns and support issues, please contact your Schroff sales distributor or www.schroff.biz. We recommend that you save the packing material. -
Page 13: Scope Of Delivery
CPCI Case System 6/7 U Service 24579-612 4.3 Scope of Delivery Quantity Description Shielded ratiopacPRO-air case 7 U / 84 HP with front handles CPCI backplane (PICMG2.0 R.3.0), 8 slot 6 U Front card cage for max. 8 boards 6 U 160 mm deep IEEE guide rails inc. -
Page 14: Technical Data
CPCI Case System 6/7 U Technical Data 24579-612 5 Technical Data Table 2: Technical Data Dimensions Height (w/o feet) 310,25 mm (7 U) Height (with feet) 325,50 mm Width (w/o handles) 448,90 mm Width (with handles) 462,10 mm Depth (Card cage) 275 mm Depth (Overall with handles) 340,43 mm... -
Page 15: Dimensions
CPCI Case System 6/7 U Dimensions 24579-612 6 Dimensions Figure 3: Dimensions www.schroff.biz R1.1, December 16, 2010... - Page 16 CPCI Case System 6/7 U Dimensions 24579-612 www.schroff.biz R1.1, December 16, 2010...
- Page 18 SCHROFF GMBH www.schroff.biz Langenalberstr. 96-100 Tel.: + 49 (0) 7082 794-0 Fax: +49 (0) 7082 794-200 D-75334 Straubenhardt...
