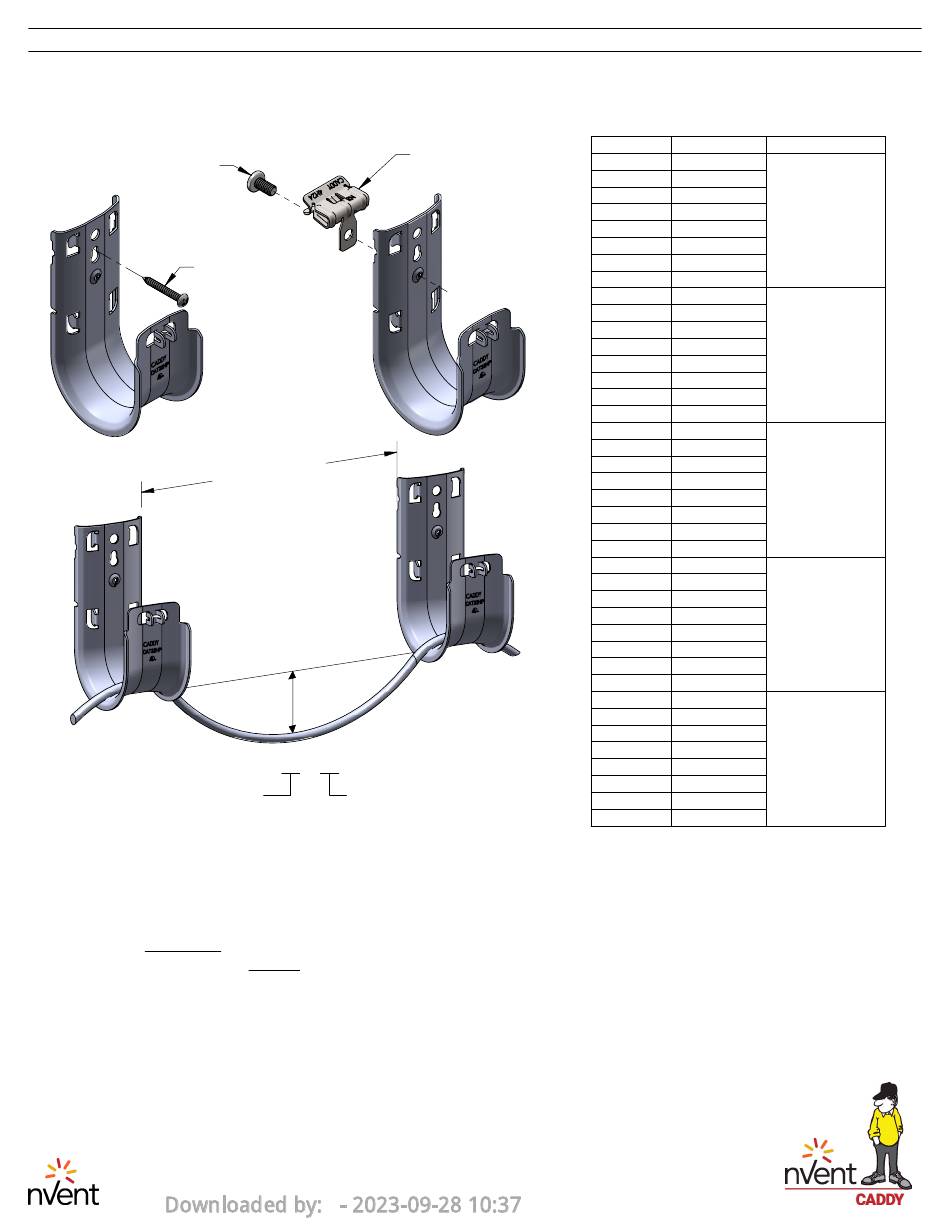

nvent CADDY CAT HP J-Hook System Instruction Sheet

INSTRUCTION SHEET


1/4"-20 screw only
(Not included)
#8 Drywall screw only
(Not included)
J-Hook color code: CATXXHPXX
J-Hook size = (16)
WARNING:
1. nVent products shall be installed and used only as indicated in nVent product instruction sheets and training materials. Instruction sheets are available at
www.nVent.com and from your nVent customer service representative.
2. nVent products must never be used for a purpose other than the purpose for which they were designed or in a manner that exceeds specified load ratings.
3. All instructions must be completely followed to ensure proper and safe installation and performance.
4. Improper installation, misuse, misapplication or other failure to completely follow nVent's instructions and warnings may cause product malfunction, property
damage, serious bodily injury and/or death, and void your warranty.
5. Products that are manufactured using spring steel components shall be used only in a non-corrosive indoor environment.
6. All pipe supports, hangers, intermediate components and structural attachments must ONLY be used as described herein and are NEVER to be used for any
other purpose.
NOTE: All load ratings are for static conditions and do not account for dynamic loading such as wind, water or seismic loads, unless otherwise noted.
The customer is responsible for:
a. Conformance to all governing codes.
b. The integrity of structures to which the products are attached, including their capability of safely accepting the loads imposed, as evaluated by a qualified
engineer.
c. Using appropriate industry standard hardware as noted above.
SAFETY INSTRUCTIONS:
All governing codes and regulations and those required by the job site must be observed.
Always use appropriate safety equipment such as eye protection, hard hat, and gloves as appropriate to the application.
nVent, nVent CADDY, nVent ERICO Cadweld, nVent ERICO Critec, nVent ERICO, nVent ERIFLEX, and nVent LENTON are
owned by nVent or its global affiliates. All other trademarks are the property of their respective owners. nVent reserves the
right to change specifications without prior notice.
TECHNICAL SUPPORT:
www.nVent.com
1.5m (5') max
300mm (12") max
J-Hook color
(21) (Optional)
(32) Blank = EG Finish
(BA) = Black, (BU) = Blue
(48)
(GR) = Green, (RD) = Red
(64)
(WH) = White, (YL) = Yellow
(OR) = Orange
CFS376_H
Clip shown sold
separately
1 OF 2
© 2007-2018 nVent All Rights Reserved
Part Number Article Number
CAT16HP 181061
CAT16HPBA 181255
CAT16HPBU 181252
CAT16HPGR 181256
1" [25.4mm] J-Hook
CAT16HPRD 181251
CAT16HPWH 181253
CAT16HPYL 181254
CAT16HPOR 181257
CAT21HP 181188
CAT21HPBA 181185
CAT21HPBU 181152
CAT21HPGR 181156
CAT21HPRD 181181
CAT21HPWH 181183
CAT21HPYL 181184
CAT21HPOR 181187
CAT32HP 181062
CAT32HPBA 181115
CAT32HPBU 181112
CAT32HPGR 181116
2" [50.8mm] J-Hook
CAT32HPRD 181111
CAT32HPWH 181113
CAT32HPYL 181114
CAT32HPOR 181117
CAT48HP 181063
CAT48HPBA 181125
CAT48HPBU 181122
CAT48HPGR 181126
3" [37.2mm] J-Hook
CAT48HPRD 181121
CAT48HPWH 181123
CAT48HPYL 181124
CAT48HPOR 181127
CAT64HP 181064
CAT64HPBA 181135
CAT64HPBU 181132
CAT64HPGR 181136
CAT64HPRD 181131
CAT64HPWH 181133
CAT64HPYL 181134
CAT64HP0R 181137
Working load for all sizes
(3:1 safety factor): 60lbs [276N]
Description
1-5/16" [33.4mm]
J-Hook
4" [101.6mm]
J-Hook
