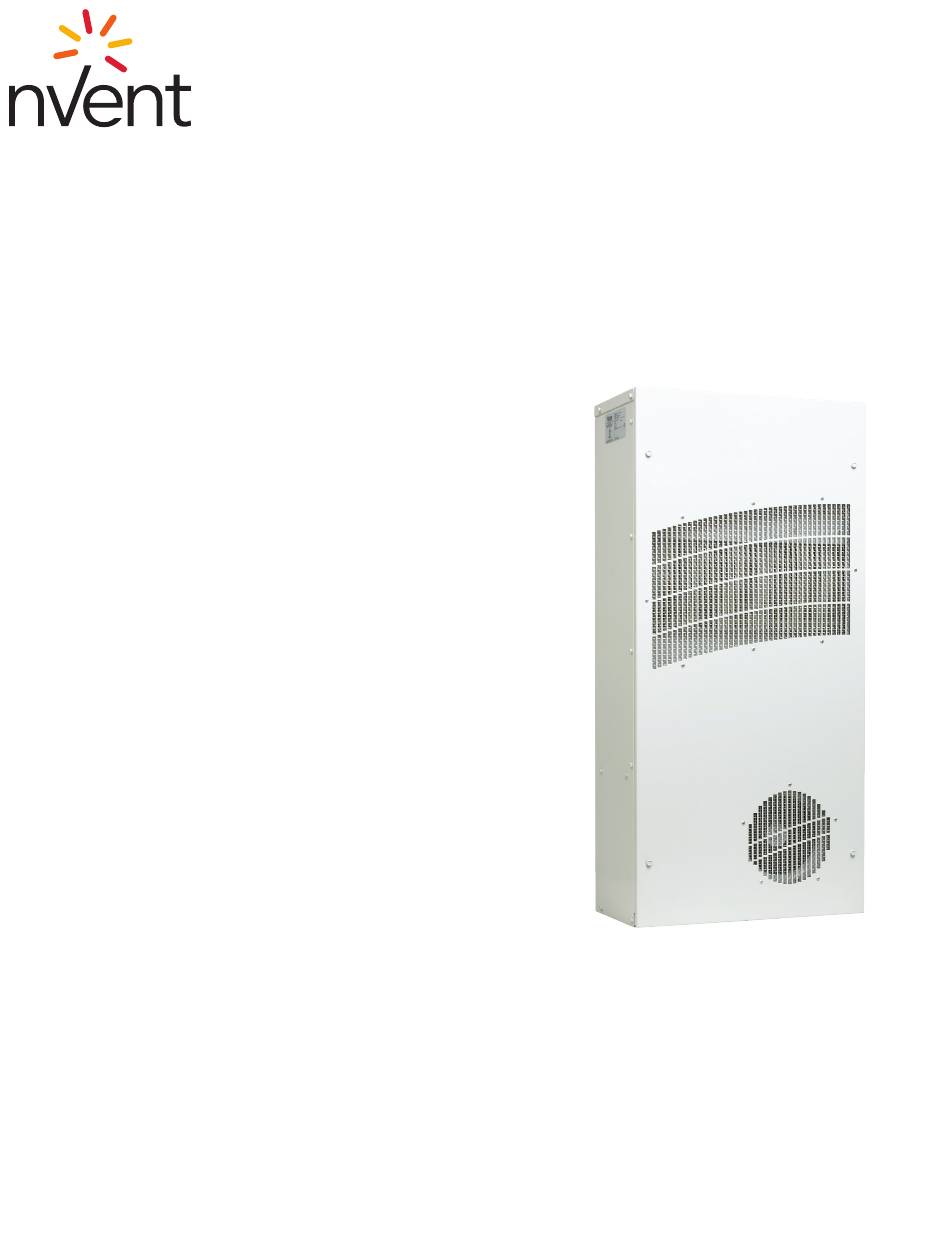

- Page 1 CLIMAGUARD™ Air-to-Air outdoor HeAt excHAnger tx33-2848-104 Model INSTRUCTION MANUAL © 2018 nVent 88030266 Rev. D P/N 10-1008-236...
-
Page 2: Table Of Contents
Damage evident upon receipt should be noted on the freight bill. Damage should be brought to the attention of the delivering carrier within 15 days of delivery -- NOT to nVent Equipment Protection. Save the carton and packing material and request an inspection. Then file a claim with the delivering carrier. -
Page 3: Installation Instructions
The ambient air mover is mounted on a bulkhead and is easily accessible by removing the front cover. Caution! Operation of the heat exchanger in areas containing airborne caustics or chemicals can rapidly deteriorate aluminum cores and air movers. Contact nVent Equipment Protection for special recommendations. AMBIENT AIR IN/OUT SCREENS In dirty environments the bug screens on the front cover may need to be cleaned periodically to maintain adequate cooling performance. -
Page 4: Technical Information
TECHNICAL INFORMATION DESIGN DATA Maximum Minimum Shipping Weight Model Voltage Full Load Amps Temperature Temperature lb./Kg (°C/°F) (°C/°F) TX33-2848-104 48VDC 65/149 -40/-40 45/20.4 DIMENSIONAL DRAWINGS © 2018 nVent 88030266 - 4 -... -
Page 5: Mounting Cutout
MOUNTING CUTOUT External Mounting CUTOUT INSTRUCTIONS (As viewed from outside of enclosure) NOTE: Dashed lines represent air conditioner. COMPONENTS LIST Part Description Part Number Air Movers 10-1091-55 Controller E117E004 Service Cord / Harness 09-3001-106 © 2018 nVent 88030266 - 5 -... -
Page 6: Wiring Diagram
WIRING DIAGRAM © 2018 nVent 88030266 - 6 -... -
Page 7: Trouble Shooting - Dc Units
Hi / Lo Temp alarm will activate. Repair or Replace Composite Alarm Only • Controller Temperature Sensor Failure defective part For additional technical support, contact nVent Equipment Protection at 800-896-2665. © 2018 nVent 88030266 - 7 -... -
Page 8: Warranty
Should any part prove defective within the above warranty period, the customer may choose to return the defective product that is under warranty to nVent Equipment Protection for repair at no charge or the customer has the option to repair the defective products at his own expense and nVent Equipment Protection will supply repair parts at no charge providing the defective part is returned and found to have failed under warranty. -
Page 9: Hold Harmless
Protection shall have the right and option to undertake and control the entire defense of such claim, or demand instituted against the customer or user, but limited to the products made or sold by nVent Equipment Protection, through counsel selected by nVent Equipment Protection, and to settle and pay... - Page 10 NOTES © 2018 nVent 88030266 - 10 -...
- Page 11 NOTES © 2018 nVent 88030266 - 11 -...
- Page 12 © 2018 nVent 88030266 Rev. D P/N 10-1008-236...
