Modena RF Series Manual page 23

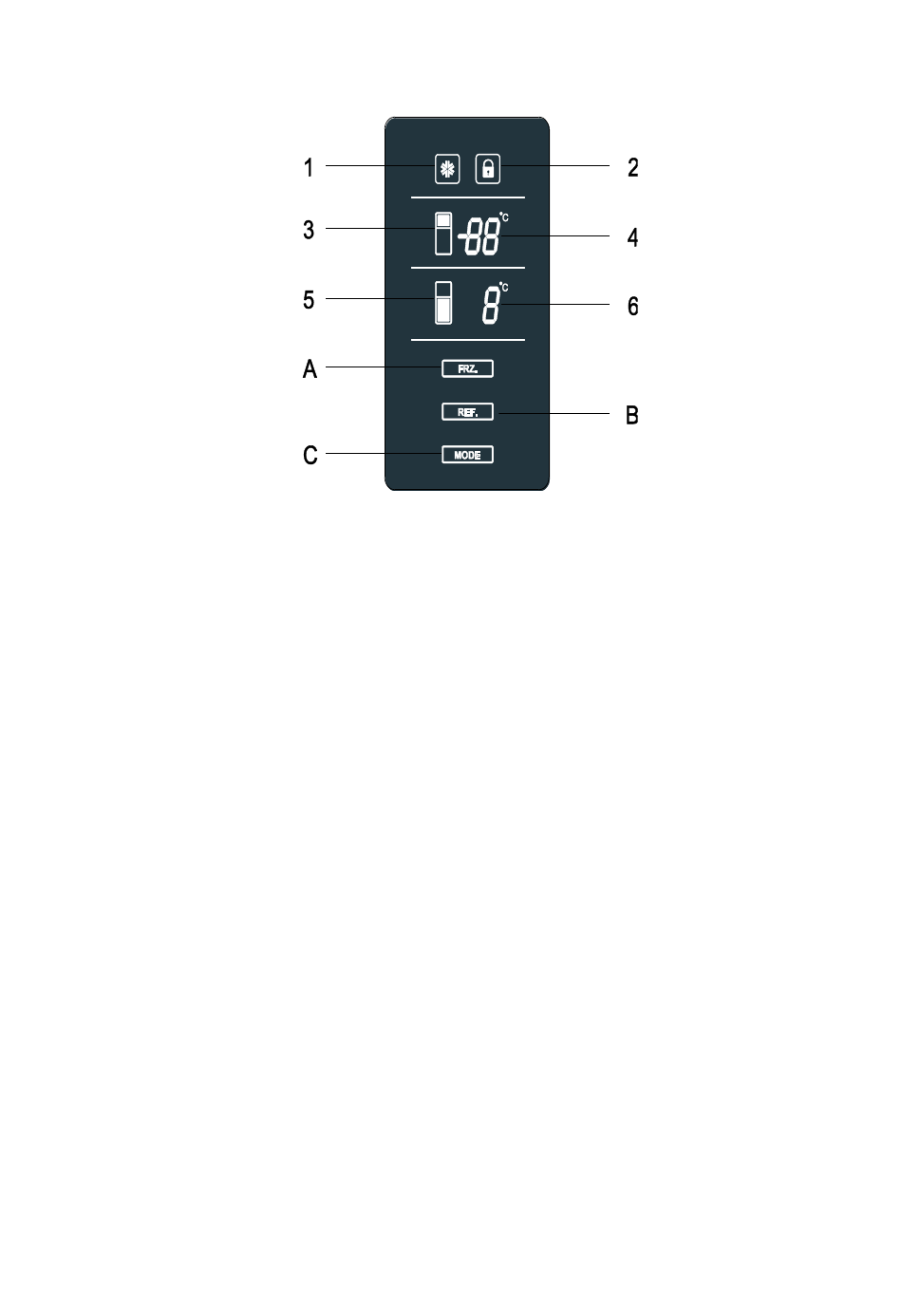

Control Panel
1. Control buttons
A. F Temperature control
B. R Temperature control
C. Function buttons (Lock/Quick-freezing)
2. Led display
1. Quick-freezing icon
2. Lock icon
3. Locking and unlocking
Under unlocked status, push down C key for three seconds enter into lock status and it displays
Icon. Under locked status, push down C key for three seconds to unlock and icon disappears.
Below functions shall be carried out under unlocked status.
4. Quick-freezing mode
Short press function key C to enter quit/quick-frozen mode and light up icon. The refrigerator will
operate though setting mode after lock.
5. R's temperature setting
Press R button to select temperature in accordance desirable temperature between 2 ~ 8 C.
6. F temperature setting
Press F button to select temperature in accordance desirable temperature between 16 ~ 24 C.
7. Outage memory
When outage occurs, the instantaneous working state will be locked. The working state can be
preserved until power is on.
8. Open prompts and open alert control
When the refrigerator or refrigerating room's door opens, an open music tune will be played. If
the door hasn't been closed after 120 seconds, the buzzer will give alarm and after that, 1 alarm
3. F temperature zone icon
4. F temperature display
5. R temperature zone icon
6. R temperature display
English 21
