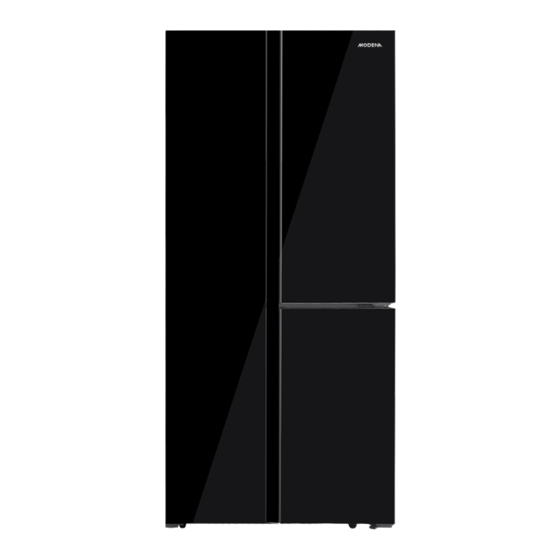

- Page 1 User Manual Book Refrigerator Vetrolia Series Giulia Series RF 2555 L RF 2552 L...
- Page 2 Thank you for your trust in choosing MODENA products for your household needs. With your satisfaction as our priority, we constantly aim to deliver stylishly designed products equipped with state-of-the-art technology to assist you in your daily activities. This is your guidebook containing everything you need to know about our product.
-
Page 3: Table Of Contents
TABLE OF CONTENT Part 1: Safety information Part 2: Name of parts RF 2552 L RF 2555 L Part 3: Installation guide Before first use Moving the appliance Installation environment Feet adjustment Part 4: How to use RF 2552 L RF 2555 L Door Alarm Accessories... -
Page 4: Part 1: Safety Information
PART 1: SAFETY INFORMATION READ THIS MANUAL CAREFULLY! Symbol Type Definition Serious injury or death risk WARNING Dangerous voltage risk RISK OF ELECTRIC SHOCK Risk of fire or flammable material FIRE HAZARD Injury or property damage risk CAUTION Important information product IMPORTANT operations... - Page 5 refrigerator need a special disposal procedure. Consult the disposal method with related parties. Your refrigerator contains iso-butane refrigerant (R600a) in a small quantity. Make sure there is no damage or leakage. Refrigerant leakage may lead to fire or damage to your eyes. If a leakage is detected, move the refrigerator away from the fire sources or any other potential sources which can cause fire.
- Page 6 • Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. • This appliance is intended to be used in household and domestic applications • If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, a service agent or similar qualified persons in order to avoid accidents.
-
Page 7: Part 2: Name Of Parts
PART 2: NAME OF PARTS RF 2552 L Note: A. Freezer Room B. Refrigerator Room 1. Freezer door basket 4. Refrigerator shelf 2. Freezer shelf 5. Refrigerator drawer 3. Freezer drawer 6. Refrigerator door basket... - Page 8 RF 2555 L Note: A. Freezer Room B. Refrigerator Room 1. Freezer door basket 5. Refrigerator door basket 2. Freezer shelf 6. Refrigerator shelf 3. Freezer mid drawer 7. Crisper cover 4. Freezer drawer 8. Crisper drawer C. Variable Room 9.
-
Page 9: Part 3: Installation Guide
PART 3: INSTALLATION GUIDE Before First Use • Remove all packages, including the foam backing at the bottom of refrigerator and the tapes fixing accessories in the box. • Place the refrigerator to a proper position, and adjust the feet to level. -
Page 10: Feet Adjustment
Feet Adjustment • Please make sure to adjust two front plastic feet until the height is suitable • Turn the feet clockwise to heighten them or rotate the feet counterclockwise to lower them until the desired height. -
Page 11: Part 4: How To Use
PART 4: HOW TO USE RF 2552 L Buttons Each press of the “Feature” button will cycle through the operating modes. • Holiday Mode – the refrigerator will run at 6°C while the freezer will operate at -15°C. • Super Freezer Mode – when super freezer mode is selected, the compressor will operate continuously for 180 minutes after which the freezer will return to the last set operating mode. - Page 12 Temperature Settings: The default temperature of the freezer is -18°C. To change the temperature, press the Freezer button to cycle through the set temperatures. The default temperature of the refrigerator is 5°C. To change the temperature, press the Fridge button to cycle through the set temperatures.
- Page 13 RF 2555 L Function Mode “Super Freezer” Mode The refrigerator will be activated when the “ Super Freezer “ temperature is set to -23℃. This mode will automatically be switched off after 24 hours “Super Fridge” Mode The refrigerator will be activated when the “ Super Fridge “ temperature is set to 2℃.
- Page 14 “Smart” Mode The refrigerator will be activated when “Fridge“ temperature is at 2℃, “Freezer” at -18℃ and will automatically be switched off when the temperature is readjusted. “Green” Mode The refrigerator will be activated when the “Variable“ temperature is at 4℃, This mode is suitable for storing fruits and vegetables and will automatically be switched off when the “Variable Temp”...
- Page 15 The default temperature of the refrigerator is 8°C. To change the temperature, press the Fridge button to cycle through the set temperatures. There are 3 standards of Variable space, Fresh Mode Temperature is 2°C, Cold Temperature Mode -4°C and Green Mode Temperature is 8°C. To change the temperature, press the "Variable"...
-
Page 16: Door Alarm
• Pressing the lock button will enable lock mode and the lock icon will be visible. • While the refrigerator is in this mode the other buttons on the control panel will not function, when the buttons are touched a chime will sound and the lock icon will flash. -
Page 17: First Use
First use Cleaning the interior Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly. IMPORTANT! Do not use detergents or abrasive powders, as these will damage the finish. -
Page 18: Food Storage Tips
Thawing Deep-frozen or frozen food, prior to be used, can be thawed in the freezer compartment or at room temperature, depending on the time available for this operation.Small pieces may even be cooked still frozen, directly from the freezer. In this case, cooking will take longer. Food Storage Tips Refrigerator •... - Page 19 • Consume packaged foods before the recommended expiry date. • See Food Storage Guide in Appendix 1 NOTE! Potatoes, onions and garlic should not be stored in the refrigerator. The table below is a quick guide to show you the most efficient way to store the major food groups in your refrigerator compartment.
- Page 20 • Do not purchase frozen food if the packaging shows signs of humidity and abnormal swelling. It is probable that it has been stored at an unsuitable temperature and that the contents have deteriorated. • The storage life of frozen food depends on the room temperature, the thermostat setting, how often the door is opened, the type of food, and the length of time required to transport the product from the shop to your home.
-
Page 21: Part 5: Maintenance
PART 5: MAINTENANCE Disconnect the unit from the power supply before cleaning. Do not wash your appliance by pouring water on it. Do not use abrasive products, detergents or soaps for cleaning the appliance. After washing, rinse with clean water and dry carefully. When you have finished cleaning, reconnect the plug to the mains supply with dry hands. -
Page 22: Led Lamp Replacement
• Remove the vaporization container from its position by removing the screws as indicated. Clean it with soapy water at specific time intervals. This will prevent odors from forming. LED Lamp Replacement If your appliance has LED lighting contact the help desk as this should be changed by technician. -
Page 23: Part 6: Troubleshooting
PART 6: TROUBLESHOOTING Problem Possible Cause Recommended Action Refrigerator does not • The mains plug of the • Check whether the operate appliance is not in the power is on; socket properly • The fuse must be • The fuse for the switched on. - Page 24 Problem Possible Cause Recommended Action • longer until the Put too much fresh or desired temperature hot food is reached. • Doors are opened too • Warm air entering the frequently or too long fridge cause it to run longer. Open the door less often.
-
Page 25: Part 7: Specification
PART 7: SPECIFICATION Model RF 2552 L RF 2555 L Color Black Glass Black Glass Type Side by side Side by side No. of doors Defrosting Automatic Automatic Compressor Inverter Inverter Refrigerant R600a R600a Interior light Total Capacity (Liter) Refrigerator Capacity (Liter) Freezer Capacity (Liter) Defrost power input (Watt) Rated Voltage (Volt) -
Page 26: Appendix 1: Food Storage Guide
APPENDIX 1: FOOD STORAGE GUIDE Maximum Meat & Fish Preparation storage time (months) Steak Wrap in foil Lamb meat Wrap in foil Veal roast Wrap in foil Veal cubes In small pieces Lamb cubes In pieces Minced meat In packaging without spices Giblets (pieces) In pieces Should be kept packaged even if it... - Page 27 Maximum Vegetables and Fruits Preparation storage time (months) Wash, cut into small pieces and boil in String beans and beans 10-13 water Beans Hull, wash and boil in water Cabbage Clean and boil in water Carrot Clean, cut into slices and boil in water Cut the stem, cut into two pieces, Pepper 8-10...
- Page 28 Maximum Thawing time at Thawing time in oven storage time room temperature (minutes) (months) (hours) Bread 4-5 (220-225°C) Biscuits 1-1,5 5-8 (190-200°C) Pastry 5-10 (200-225°C) 1-1,5 5-8 (190-200°C) Phyllo dough 1-1,5 5-8 (190-200°C) Pizza 15-20 (200°C) Maximum storage Dairy products Preparation Storage conditions time (months)
- Page 29 12/20...
