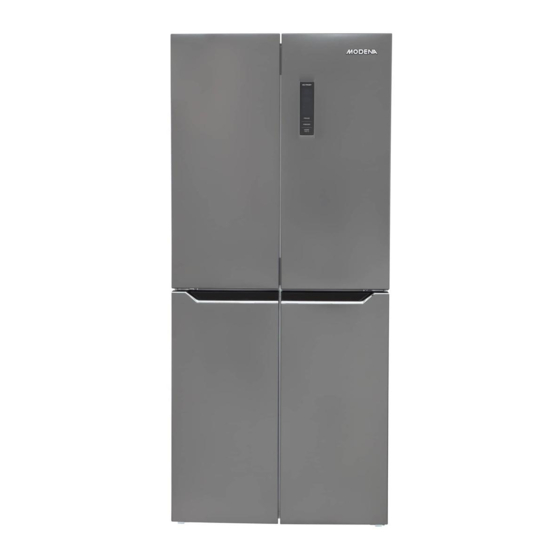

RF 4540 S, RF 2551 S,
RF 2255 , RF 2336 S,
RF 2335 S

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Argento Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Modena Argento Series

Summary of Contents for Modena Argento Series

  • Page 1 User Manual Book Refrigerator Argento Series RF 4540 S, RF 2551 S, RF 2255 , RF 2336 S, RF 2335 S...
  • Page 2 Thank you for your trust in choosing MODENA products for your household needs. With your satisfaction as our priority, we constantly aim to deliver stylishly designed products equipped with state-of-the-art technology to assist you in your daily activities. This is your guidebook containing everything you need to know about our product.

  • Page 3: Table Of Contents

    TABLE OF CONTENT Part 1: Safety information Part 2: Name of parts RF 4540 S RF 2551 S RF 2255 S RF 2336 S, RF 2335 S Part 3: Installation guide Before first use Moving the appliance Installation environment Feet adjustment Reversible doors (RF 2336 S, RF 2335 S) Part 4: How to use RF 4540 S, RF 2336 S, RF 2335 S, RF 2551 S...

  • Page 4: Part 1: Safety Information

    PART 1: SAFETY INFORMATION READ THIS MANUAL CAREFULLY! Symbol Type Definition Serious injury or death risk WARNING Dangerous voltage risk RISK OF ELECTRIC SHOCK Risk of fire or flammable material FIRE HAZARD Injury or property damage risk CAUTION Important information product IMPORTANT operations...
  • Page 5 refrigerator need a special disposal procedure. Consult the disposal method with related parties. Your refrigerator contains iso-butane refrigerant (R600a) in a small quantity. Make sure there is no damage or leakage. Refrigerant leakage may lead to fire or damage to your eyes. If a leakage is detected, move the refrigerator away from the fire sources or any other potential sources which can cause fire.
  • Page 6 • Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. • This appliance is intended to be used in household and domestic applications • If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, a service agent or similar qualified persons in order to avoid accidents.

  • Page 7: Part 2: Name Of Parts

    PART 2: NAME OF PARTS RF 4540 S Note: 1. Anti-bacterial and deodorizer 6. Door basket 2. Refrigerator shelf 7. Chiller drawer 3. Crisper & chiller cover 8. Sliding shelf 4. Crisper drawer 9. Freezer drawer 5. LED light 10. Adjustable feet...
  • Page 8 RF 2551 S Note: 1. Freezer shelf Refrigerator door basket 2. Freezer door basket Crisper drawer 3. Freezer drawer cover Refrigerator drawer 4. Freezer drawer Adjustable feet 5. Refrigerator shelf...
  • Page 9 RF 2255 S Note: Freezer shelf 2. Chiller drawer 3. Decorative block 4. Refrigerator shelf 5. Crisper drawer 6. Freezer door basket 7. Refrigerator door basket 8. Adjustable feet...

  • Page 10: Rf 2336 S, Rf 2335 S

    RF 2336 S, RF 2335 S Note: Refrigerator shelf 2. Crisper cover 3. Crisper drawer 4. Chiller drawer 5. Freezer drawer 6. Refrigerator door basket 7. Adjustable feet...

  • Page 11: Part 3: Installation Guide

    PART 3: INSTALLATION GUIDE Before First Use • Remove all packages, including the foam backing at the bottom of refrigerator and the tapes fixing accessories in the box. • Place the refrigerator to a proper position, and adjust the feet to level.

  • Page 12: Feet Adjustment

    Feet Adjustment • Please make sure to adjust two front plastic feet until the height is suitable • Turn the feet clockwise to heighten them or rotate the feet counterclockwise to lower them until the desired height. Reversible doors (RF 2336 S, RF 2335 S) See Appendix 1.

  • Page 13: Part 4: How To Use

    PART 4: HOW TO USE RF 4540 S, RF 2336 S, RF 2335 S, RF 2551 S SMART mode indicator 2. ECO mode indicator 3. Super Cooling mode indicator 4. Super Freezer mode indicator 5. Holiday mode indicator 6. Lock indicator 7.
  • Page 14 change in a cycle of 2°C-3°C-4°C-5°C-6°C-7°C-8°C-OFF. After the display blinks for 5 seconds, the temperature setting will be applied. B. Freezer Temperatures Setting Press the button to adjust the freezer temperature, the display will blink. Press the button consecutively and the temperature will change in from -14°C to -22°C.
  • Page 15 RF 2255 S Refrigerator Temperature Setting A. “Fridge“ Button The refrigerator compartment can be adjusted by touching the button consecutively. Temperature will change in a cycle of “2°C, 3°C, 4°C, 6°C, 8°C”. After choosing the temperature and the light flashes for 5 seconds, the settings will be applied B.

  • Page 16: Door Alarm

    Door Alarm When the door is left open or not closed properly for 90 seconds, the appliance will sound an alarm. Close the doors to turn off the alarm. If the door is not closed properly, the alarm will sound every 35 seconds until the door is closed.

  • Page 17: Daily Use

    Daily Use Freezing Fresh Food • The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food fora long time. • Place the fresh food to be frozen in the bottom compartment. • The maximum amount of food that can be frozen in 24 hours is specified on the rating plate.
  • Page 18 • Never place warm food in the refrigerator. Warm food should be allowed to cool at room temperature and should be arranged to ensure adequate air circulation in the refrigerator compartment. • Make sure no items are in direct contact with the rear wall of the appliance as frost will develop and packaging will stick to it.
  • Page 19 Freezer • The freezer is used for storing frozen food, freezing fresh food, and making ice cubes • For freezing fresh food; wrap and seal fresh food properly, that is the packaging should be air tight and shouldn’t leak. Special freezer bags, aluminum foil polythene bags and plastic containers are ideal.
  • Page 20 NOTE! If you attempt to open the freezer door immediately after closing it, you will find that it will not open easily. This is normal. Once equilibrium has been reached, the door will open easily. IMPORTANT! • Never refreeze thawed frozen food. •...

  • Page 21: Part 5: Maintenance

    PART 5: MAINTENANCE Disconnect the unit from the power supply before cleaning. Do not wash your appliance by pouring water on it. Do not use abrasive products, detergents or soaps for cleaning the appliance. After washing, rinse with clean water and dry carefully. When you have finished cleaning, reconnect the plug to the mains supply with dry hands.

  • Page 22: Led Lamp Replacement

    LED Lamp Replacement If your appliance has LED lighting contact the help desk as this should be changed by technician. Environmental Notice The packaging material used is recyclable. We recommend that you separate plastic, paper and cardboard and give them to recycling agents. To help preserve the environment, refrigerant used this...

  • Page 23: Part 6: Troubleshooting

    PART 6: TROUBLESHOOTING Problem Possible Cause Recommended Action Refrigerator does not • The mains plug of the • Check whether the operate appliance is not in the power is on; socket properly • The fuse must be • The fuse for the switched on.
  • Page 24 Problem Possible Cause Recommended Action • longer until the Put too much fresh or desired temperature hot food is reached. • Doors are opened too • Warm air entering the frequently or too long fridge cause it to run longer. Open the door less often.

  • Page 25: Part 7: Specification

    PART 7: SPECIFICATION Model RF 4540 S RF 2551 S Color Black Stainless Stainless Type Multi door Side by side No. of doors Defrosting Automatic Automatic Compressor Inverter Inverter Refrigerant R600a R600a Interior light Total Capacity (Liter) Refrigerator Capacity (Liter) Freezer Capacity (Liter) Defrost power input (Watt) Rated Voltage (Volt)
  • Page 26 Model RF 2255 S RF 2336 S Color Black Stainless Black Stainless Type Top freezer Bottom freezer No. of doors Defrosting Automatic Automatic Compressor Inverter Inverter Refrigerant R600a R600a Interior light Total Capacity (Liter) Refrigerator Capacity (Liter) Freezer Capacity (Liter) Defrost power input (Watt) Rated Voltage (Volt) 220-240...
  • Page 27 Model RF 2335 S Color Black Stainless Type Bottom freezer No. of doors Defrosting Automatic Compressor Inverter Refrigerant R600a Interior light Total Capacity (Liter) Refrigerator Capacity (Liter) Freezer Capacity (Liter) Defrost power input (Watt) Rated Voltage (Volt) 220-240 Rated Frequency (Hz) Product dimension (W×D×H)(mm) 600x690x1850 Product weight (kg)

  • Page 28: Appendix 1: Door Installation Guide (Rf 2336 S, Rf 2335 S)

    APPENDIX 1: DOOR INSTALLATION GUIDE RF 2336 S & RF 2335 S Before reversing the door, please prepare the following tools and materials: slot screw driver (-), phillips screwdriver (+), spanner, and other components included in the poly bag: 1 x Hinge cover 1 x Upper door plastic 1 x Lower door plastic hinge base...
  • Page 29 3. Remove the pin with a screwdriver and flip the hinge bracket. Then refit the pin to the hinge bracket 4. Move the door switch from right hinge cover to the left hinge cover 5. Detach the upper door cover and move harness from right to left side, then replace the cover 6.
  • Page 30 8. Move the hinge hole covers from left to right side 9. Unscrew bottom hinge. Then remove the adjustable feet from both sides 10. Unscrew and remove bottom hinge pin, turn the bracket over and replace it 11. Refit the bracket fitting the bottom hinge pin. Replace both adjustable feet 12.
  • Page 31 13. Detach the refrigerator and freezer gasket, and the attach them after rotating...

  • Page 32: Appendix 2: Food Storage Guide

    APPENDIX 2: FOOD STORAGE GUIDE Maximum Meat & Fish Preparation storage time (months) Steak Wrap in foil Lamb meat Wrap in foil Veal roast Wrap in foil Veal cubes In small pieces Lamb cubes In pieces Minced meat In packaging without spices Giblets (pieces) In pieces Should be kept packaged even if it...
  • Page 33 Maximum Vegetables and Fruits Preparation storage time (months) Wash, cut into small pieces and boil in String beans and beans 10-13 water Beans Hull, wash and boil in water Cabbage Clean and boil in water Carrot Clean, cut into slices and boil in water Cut the stem, cut into two pieces, Pepper 8-10...
  • Page 34 Maximum Thawing time at Thawing time in oven storage time room temperature (minutes) (months) (hours) Bread 4-5 (220-225°C) Biscuits 1-1,5 5-8 (190-200°C) Pastry 5-10 (200-225°C) 1-1,5 5-8 (190-200°C) Phyllo dough 1-1,5 5-8 (190-200°C) Pizza 15-20 (200°C) Maximum storage Dairy products Preparation Storage conditions time (months)
  • Page 35 12/20...
