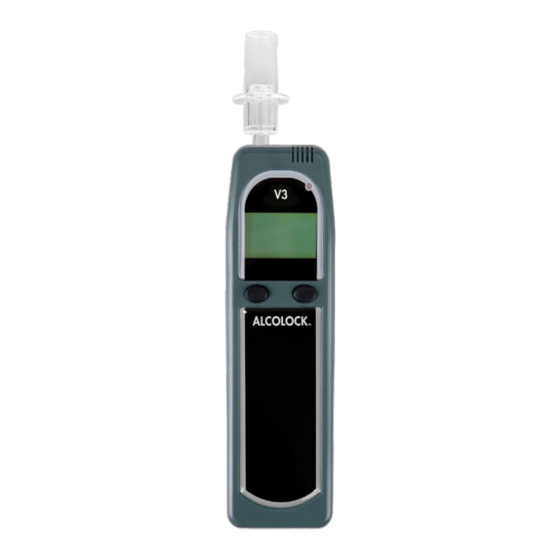

Alcolock V3 B-2 Series Service Manual
  1. Manuals
  2. Brands
  3. Alcolock Manuals
  4. Test Equipment
  5. V3 B-2 Series
  6. Service manual

Alcolock V3 B-2 Series Service Manual

Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

V3
SERIES B-2
Service Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V3 B-2 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Alcolock V3 B-2 Series

Summary of Contents for Alcolock V3 B-2 Series

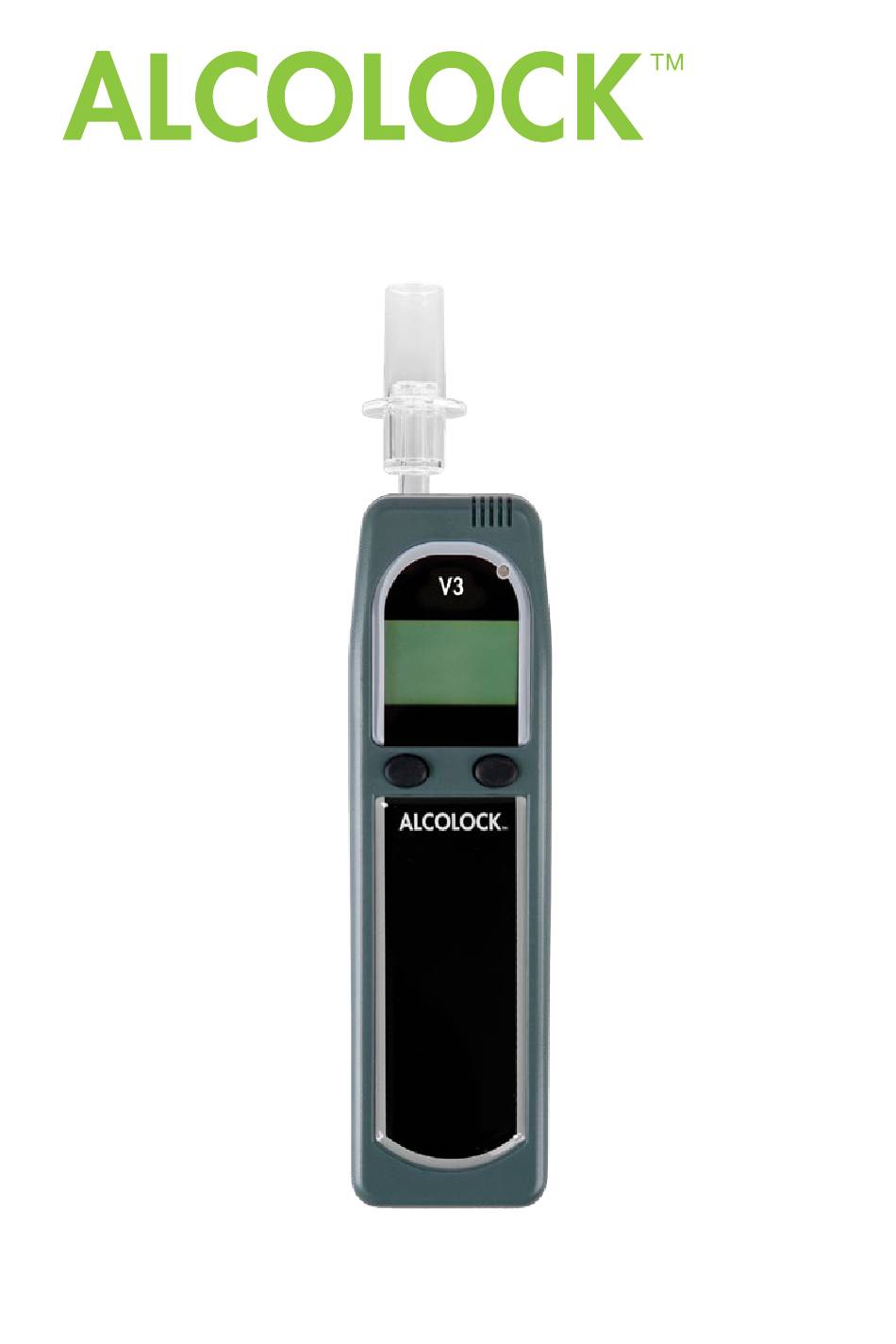

  • Page 1 SERIES B-2 Service Guide...
  • Page 2 No reproduction of this document is permitted without the prior written consent of Alcohol Countermeasure Systems Corp. ALCOLOCK, ALCOHOL COUNTERMEASURE SYSTEMS and the Molly are trademarks of Alcohol Countermeasure Systems (International) Inc., and are used under license.

  • Page 3: General Inspection

    3 seconds. The handset should go to the lower power state, the display and all the LEDs should turn off. To test the display, backlights and left pushbutton: Wake the handset up by pressing the left pushbutton. The display should show, “Alcolock Alcolock disabled, OK to start engine”.

  • Page 4: Service Procedures

    SERvICE pROCEdURES In the event of an error code occurring, follow the series of actions in the following table to isolate the error. Start with action 1, if the action is not the source of error, then go through the list and carry out each subsequent action till you get to a conclusion.

  • Page 5: Calibration Procedures

    Handset voltage too low Voltage is too low for normal 1. Check voltage of vehicle operation. during ignition cranking. 2. Replace ECU. 3. Replace handset. RF error High levels of RF interference 1. Verify if client was using a detected mobile phone or in an area of high RF signal interference during use.
  • Page 6 CYLINdER SETUp Examine the canister and valve for any damage, and check the expiration date on the label. Observe all cautions and safety warnings found on the canister. Remove the protective cap and screw the regulator valve to the canister. Attach the rigid delivery tube.

  • Page 7: Troubleshooting

    Depending on the sensor calibration drift, up to 4 samples may be required. • If only 2 tests are required, a Verification OK message is displayed when thecalibration is complete. • If 3 or 4 tests are required, a Calibration OK message is displayed when calibration is complete.
  • Page 8 SG-ENG-60-000130-D © 2012...

This manual is also suitable for:

V3 handsetV3 series b2 24v ecuV3 series b2 12v ecu

Table of Contents
