- Page 1 ALCOLOCK ALCOHOL INTERLOCK Instruction manual...
- Page 2 F +1 416 619 3501 info@acs-corp.com acs-corp.com ACS, ALCOHOL COUNTERMEASURE SYSTEMS, ALCOLOCK and the “Molly” are trademarks of Alcohol Countermeasure Systems (International) Inc. and are used under license. Alcohol Countermeasure Systems is trading style of Alcohol Countermeasure Systems (International) Inc.

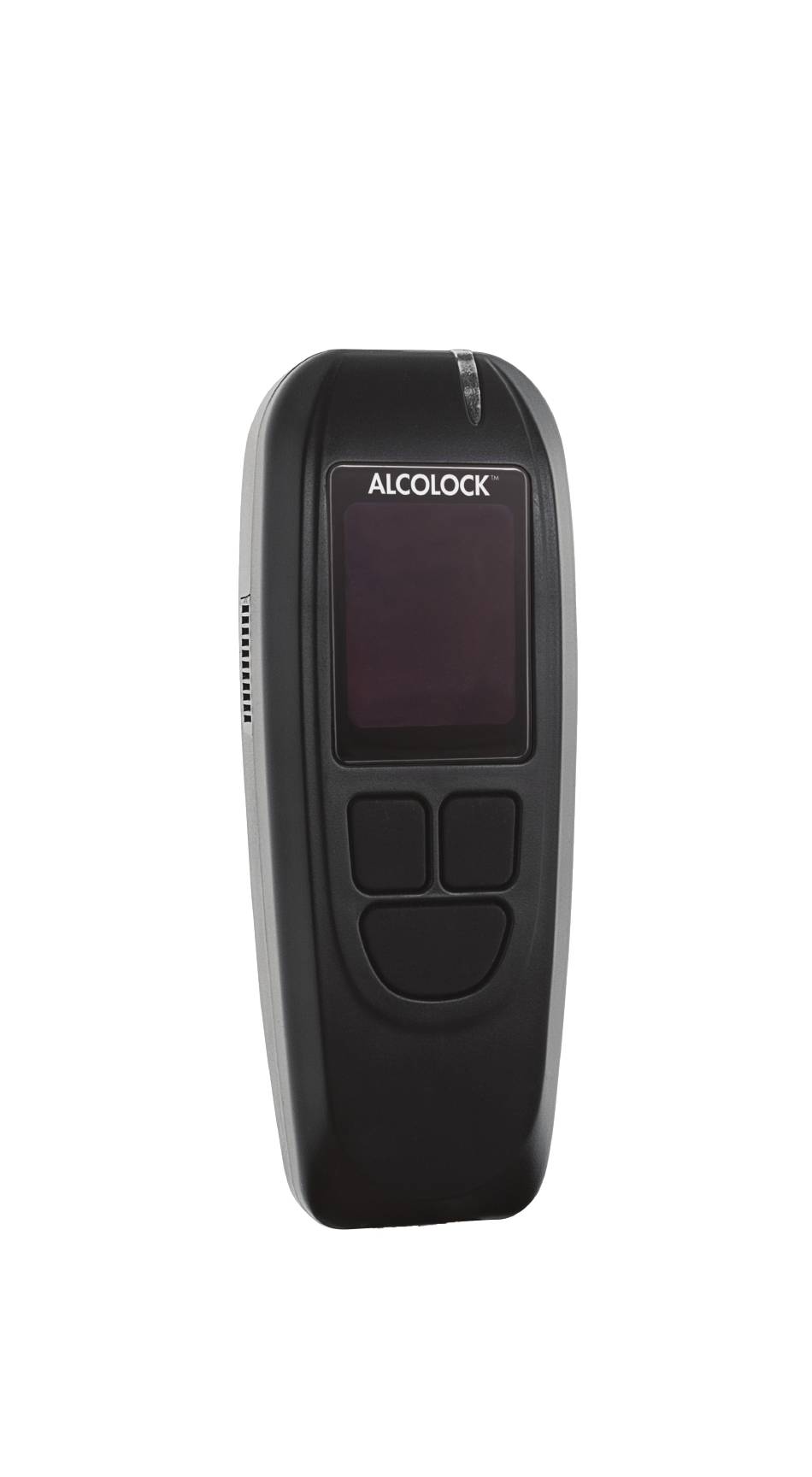

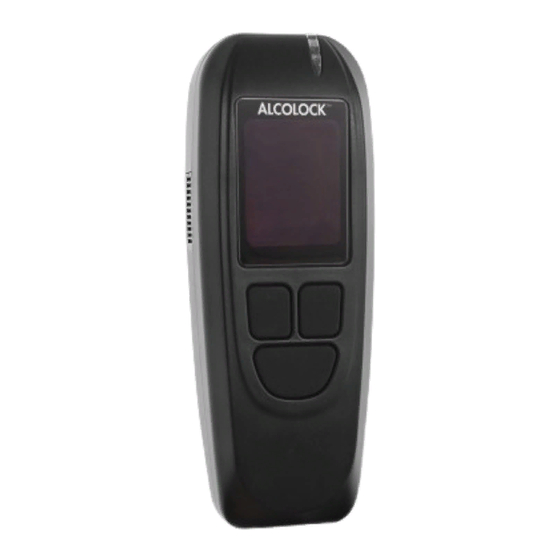

- Page 3 ALCOLOCK LR HANDSET COMPONENTS Mouthpiece Indicator light Air vent Sampling port Display Navigation buttons* *The navigation buttons permit the selection of options shown on SIDE VIEW the display. Press the left, Cable input right, or bottom HDMI port button to select...
-
Page 4: Table Of Contents
TABLE OF CONTENTS Safety and precautions ............1 Product profile ...............2 Getting started ...............3 Alcohol influence on testing ...........3 Terms used in this manual ..........3 Fees ................3 Installation ..............4 Maintenance ..............4 Operating temperature ...........4 Battery voltage ...............4 Handset cable ..............5 To disconnect the handset ........5 To connect the handset .........5 Assistance ..............6 Inserting the mouthpiece ............6... - Page 5 Performing retests...............12 Drive safely ..............12 Pull over, turn off engine..........12 Menu options ...............14 Diagnostic mode ............14 Service date mode ............14 Sleep mode ..............15 Wake-up mode .............16 Language mode ............17 Emergency Override (no code) ........17 Exit mode ..............18 Troubleshooting and service..........18 Troubleshooting table ...........18 Service dates ...............19 Error messages ............19...
-
Page 6: Safety And Precautions
SAFETY AND PRECAUTIONS The ALCOLOCK LR alcohol interlock has been designed for easy and safe operation. The device is to be used only for the purposes specified herein. To help ensure your safety, you must follow these precautions: • Always use a clean mouthpiece for good hygiene and... -
Page 7: Product Profile
The ALCOLOCK LR alcohol interlock device will never cause the vehicle engine to stop. The ALCOLOCK LR device consists of a Handset to conduct breath alcohol tests and to communicate with the driver, and an Electronic Control Unit (ECU) that is connected with the power and control circuits of the vehicle. -
Page 8: Getting Started
HDMI = High Definition Multimedia Interface • Service Provider = Alcohol interlock program provider • Service Centre = Alcohol interlock service garage FEES Drivers who are subject to an alcohol interlock program are responsible for all installation and maintenance costs. ALCOLOCK LR... -
Page 9: Installation
INSTALLATION ALCOLOCK Service Centres are conveniently located, and the ALCOLOCK LR device may be installed while you wait by a qualified installer in accordance with jurisdictional regulations. Installation must be done at an ALCOLOCK Service Centre. You will receive full training on site by qualified technicians. -
Page 10: Handset Cable
If the device is damaged, you may not be able to take a breath test, in which case you may not be able to start your vehicle. The alcohol interlock WILL NOT shut Off your vehicle during operation. ALCOLOCK LR... -
Page 11: Assistance
ASSISTANCE Contact your authorized Service Centre during normal business hours, or contact your Service Provider. Refer to your Compliance Guide for the Service Provider toll-free line. INSERTING THE MOUTHPIECE When the Handset is ready for a breath test, remove a new mouthpiece from the wrapper and insert as shown below: Insert the mouthpiece into the sampling port on the top of the Handset. -
Page 12: Performing A Test
Insert a clean mouthpiece. NOTE: Do not eat, drink or smoke for at least 15 minutes before the test. This could contaminate the breath sample. Swish and swallow fresh water to remove any contaminants from the mouth. ALCOLOCK LR... - Page 13 Blow moderately and continuously as you simultaneously hum into the mouthpiece. The Handset makes a tone to indicate accepted Continue airflow and hum, and will display Continue Blowing Blowing. If you are not blowing correctly, a message will appear on the display indicating the necessary corrective action.
-
Page 14: Results Displayed
You may NOT start the vehicle engine. Lockout 0:59 Lockout and a countdown timer are displayed. Wait for the countdown to finish before attempting another breath test. NOTE: Refer to your Compliance Guide for lockout times. ALCOLOCK LR... -
Page 15: Warm-Up
Drive Safely Hold for Warm-Up WARM-UP Where permitted, you may place the ALCOLOCK LR device in Warm-Up mode by pressing the left button. Warm-Up is displayed and the vehicle engine can remain Warm-Up at idle without requiring another breath test... -
Page 16: Standby
After a few seconds, Ready for Test is displayed. READY FOR TEST The restart period has expired. You need to provide an accepted breath test to start the vehicle engine. Ready for Test Hold for Menu ALCOLOCK LR... -
Page 17: Performing Retests
PERFORMING RETESTS Additional breath tests are required at random times to ensure that the driver has not consumed alcohol since the vehicle engine was started. Refer to your Compliance Guide for more information. The Handset beeps and displays Retest. The indicator light will flash green. - Page 18 WARNING! Do not attempt another breath test until you are certain that your alcohol level is under the preset limit. A second failed test may result in a longer lockout time (refer to your Compliance Guide). ALCOLOCK LR...
-
Page 19: Menu Options
NOTE: Any features described in this manual may or may not be available in your jurisdiction. The ALCOLOCK LR device Main Menu contains a number of selectable options, such as wake-up / sleep times and language selection; these may be accessed from the Ready for Test screen by pressing and holding the left button on the Handset. -
Page 20: Sleep Mode
Test is displayed, press and hold the left and right buttons until the screen is blank. The ALCOLOCK LR device also allows you to set the time at which Sleep mode will activate. From the Ready for Test screen, press and hold the left button to access the Main Menu. -
Page 21: Wake-Up Mode
WAKE-UP MODE The ALCOLOCK LR Handset may be set for up to 3 wake- up times per day. This helps to ensure that the Handset is warmed up and ready before you enter the vehicle. Press and hold the left button to access the Main Menu. -
Page 22: Language Mode
LANGUAGE MODE The ALCOLOCK LR Handset is available in multiple languages. The selections are programmed at the factory. Press and hold the left button to access the Main Menu. Press the left or right Menu button to scroll to Language. To select, Language press the bottom button. -
Page 23: Exit Mode
TROUBLESHOOTING AND SERVICE TROUBLESHOOTING TABLE The following table lists occurrences, along with possible solutions. For other occurrences, contact your Service Centre. IF THE ALCOLOCK LR DEVICE ... YOU SHOULD … Will not turn on Check the vehicle battery Displays an error code Refer to the “Error Messages”... -
Page 24: Service Dates
Lockout, the vehicle must be towed and you will be liable for the expenses and the service call. ERROR MESSAGES The ALCOLOCK LR device may not accept a breath test (and may display error messages instead). To minimize errors, make certain that the Handset is connected properly, the vehicle battery is in good condition and that mobile phones are not in use during breath tests. - Page 25 Permanent The service request time Call your Service Lockout has expired. The engine Centre to schedule cannot be started until an appointment. the alcohol interlock Towing will be is reset by the Service required. Centre. Pull Over, Turn Occurs in response to a The driver has a Off Engine failed retest.
-
Page 26: Technical Features
DISPOSAL OF DEVICE AT END OF SERVICE LIFE Return to your Service Centre for removal of the ALCOLOCK LR device from your vehicle. Following the removal, proper disposal of the device (ECU, Handset, or both) at the end of its service life will be done by the Manufacturer. -
Page 27: Index
INDEX Ordering mouthpieces, 21 Accepted breath test, 1, 2, 7, 8, 11, 13, 20 Alcohol influence, 3 Assistance, 6 Performing test, 7 Precautions, 1 Battery voltage, 4 Reset codes, 21 Restart, 11 Dates, 14 Retests, 12 Disposal, 21 RF interference, 1 Emergency override, 21 Safety, 1 Sleep, 15... - Page 28 IRM-CA-ENG-60-000251-D © 2012 - 2014...
