Summary of Contents for Alcolock ALCOLOCK GR
- Page 1 ALCOLOCK A L C O H O L I N T E R L O C K wireless Instruction manual...
- Page 2 Federal Communications Commission (FCC) Disclaimer Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. To comply with Radio Frequency (RF) exposure requirements, a separation distance of at least 20 cm must be maintained between the antenna(s) of the Electronic Control Unit (ECU) and all persons.
- Page 3 For service inquiries and the toll free number, refer to the Compliance Guide. ACS, ALCOHOL COUNTERMEASURE SYSTEMS, ALCOLOCK and the “Molly” are trademarks of Alcohol Countermeasure Systems (International) Inc. and are used under license. Alcohol Countermeasure Systems is the trading style of Alcohol Countermeasure Systems (International) Inc.

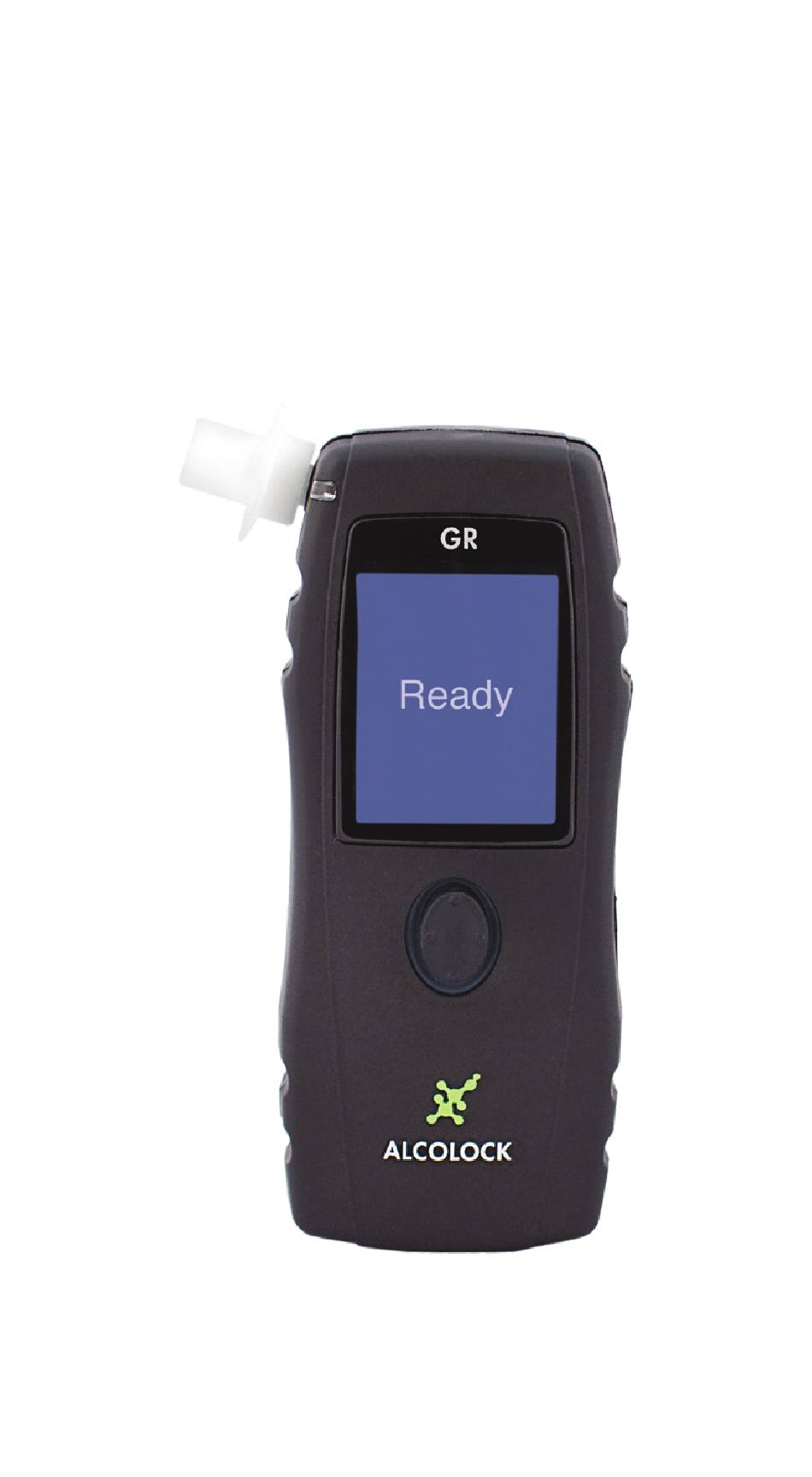

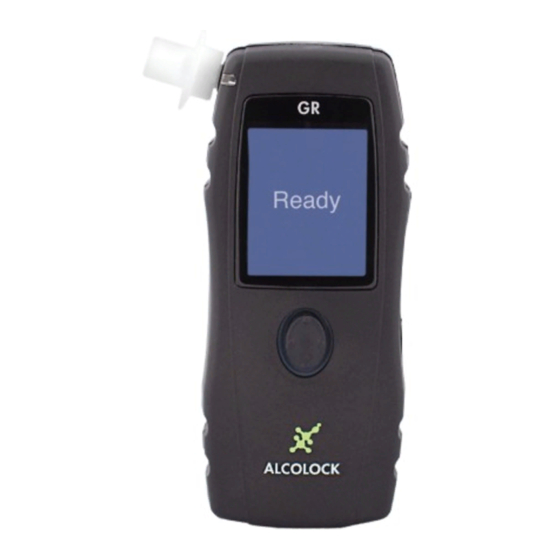

- Page 5 ALCOLOCK GR DIAGRAM Mouthpiece Display Indicator light Mouthpiece port Air vent USB port Navigation button FRONT VIEW SIDE VIEW The navigation button permits the selection of options shown on the display. Press Left, Right, Up, Down or Centre (Enter) on the navigation button to select options, based on the location on the display.
-
Page 6: Table Of Contents
Operating temperature ..........4 Battery voltage and unit charging ........4 Handset sleep mode .............5 Assistance ..............5 Inserting the mouthpiece .............5 Using the ALCOLOCK GR ...........6 Performing a test ............6 Results displayed ............7 Warm-up and standby (where applicable) .....8 Restart without breath test ..........8... - Page 7 Menu options ..............11 Power down ..............11 Dates ................11 Reset ................12 Service ................12 Maintenance and troubleshooting ........13 Troubleshooting table ..........13 Service dates ..............13 Service due ............14 Service lockout ...........14 Error messages ..........15 Technical specifications ............17 Reset codes ..............17 Emergency override (where applicable) ......17 Dealer service .............17 Disposal of unit at end of service life ......17 Replacement parts ............17...
-
Page 8: Safety And Precautions
SAFETY AND PRECAUTIONS ALCOLOCK GR series of alcohol interlocks have been designed for easy and safe operation. The device is to be used only for the purposes specified herein. To help ensure your safety, you must follow these precautions: •... -
Page 9: Product Profile
The ALCOLOCK GR alcohol interlock will not cause the vehicle motor to stop. ALCOLOCK GR units consist of a handset that is the link to the driver and an Electronic Control Unit (ECU) for connection with the vehicle. -
Page 10: Getting Started
DISPLAY ICONS The handset is in communication with the ECU. There is no communication between the handset and the ECU. The power indicator is illuminated by 5 power bars. Charge the handset if only 1 power bar remains. ALCOLOCK GR... -
Page 11: Fees
BATTERY VOLTAGE AND UNIT CHARGING The vehicle battery supplies power to the ECU. The ALCOLOCK GR ECU is suited for 12 and 24V batteries. The vehicle battery voltage can range from 9 to 36V. The handset can be charged using the DC car adapter. It can also be charged at home, using the optional AC power adapter. -
Page 12: Handset Sleep Mode
• Slide the mouthpiece into place and turn it slightly to secure • Do a visual check to ensure that the mouthpiece fits properly WARNING! Using a contaminated mouthpiece could affect the results of the breath test. ALCOLOCK GR... -
Page 13: Using The Alcolock Gr
USING THE ALCOLOCK GR PERFORMING A TEST WARNING! DO NOT turn the ignition on. You must provide a breath test first. Turning the ignition key to the on position will cause a “Turn off key” message on the handset display and may result in a violation. -
Page 14: Results Displayed
WARNING! Do not attempt another breath test until you are certain that your alcohol level is under the preset limit. A second failed test may result in a longer lockout time. Refer to your Compliance Guide for actual program requirements and details specifying program violations. ALCOLOCK GR... -
Page 15: Warm-Up And Standby (Where Applicable)
When you have started the vehicle engine, Drive safely is displayed. WARM-UP AND STANDBY (WHERE APPLICABLE) If applicable, you can place the ALCOLOCK GR device in warm-up mode by pressing the centre navigation button. Warm-up is displayed and the vehicle engine can remain idle without requiring another breath test for an allotted time (refer to your Compliance Guide –... -
Page 16: Performing Retests
Complete a successful breath test before you resume driving. NOTE: The retest request timer provides sufficient time for you to stop in a safe location. Observe one of the following messages on the handset as they apply: ALCOLOCK GR... - Page 17 DRIVE SAFELY You have passed the breath test. You can continue driving. PULL OVER, TURN OFF MOTOR The indicator light glows red. You have failed the breath test. The alcohol level detected is at or over the preset limit. Park in a safe location and turn the vehicle engine off.
-
Page 18: Menu Options
(Enter). The following dates are displayed: • Current • Last calibration • Calibration expiry • Service (your next scheduled service appointment) • Service lockout (the date at which the unit will enter service lockout) ALCOLOCK GR... -
Page 19: Reset
RESET This menu option is used by authorized service personnel only; a service code is required to use this option. SERVICE This menu option is used by authorized service personnel only; a service code is required to use this option. INSTRUCTION MANUAL... -
Page 20: Maintenance And Troubleshooting
Requires service Contact your service provider SERVICE DATES After the installation of the ALCOLOCK GR unit, you will need to return for follow-up appointments. Service appointments are scheduled at regular intervals to verify accuracy and download the events log. See your Compliance Guide for the interval dates. -
Page 21: Service Due
SERVICE DUE Service Due is displayed when you have missed your scheduled service or have an unscheduled recall service. Service due Lockout date Lockout time SERVICE LOCKOUT If you did not return to a service centre by the lockout date/time displayed, the system will enter Service lockout. -
Page 22: Error Messages
ERROR MESSAGES The ALCOLOCK GR device may not accept a breath test (and may display error messages instead). To minimize errors, make sure that the handset is connected properly, the vehicle battery is in good condition and that mobile phones are not in use during breath tests. - Page 23 Service The service request Contact your service lockout and grace periods have provider immediately expired. The vehicle to schedule an engine cannot be started appointment. The until the interlock is reset vehicle engine cannot by the service provider. be started, so towing may be required.
-
Page 24: Technical Specifications
REPLACEMENT PARTS ACS PART NUMBER DESCRIPTION 95-000145 Mouthpieces (Bag of 25) 13-001103 GR USB AC Power Adapter 13-001107 GR USB DC Car Adapter Contact your service centre to obtain these parts. ALCOLOCK GR... -
Page 25: Service Record
SERVICE RECORD DATE SERVICE PERFORMED INITIALS INSTRUCTION MANUAL... -
Page 26: Index
Temperature, 4 Terms, 3 Error messages, 15 Troubleshooting, 13 Fees, 4 Warm-up, 8 Installation, 4 Lockout, 7, 10 Maintenance, 4 Menu options, 11 Mouthpiece, 1, 5, 6, 17 Replacement parts, 17 Reset codes, 17 Restart, 8 Retests, 9 ALCOLOCK GR... - Page 28 IRM-ENG-60-000139-E © 2011 - 2014...
