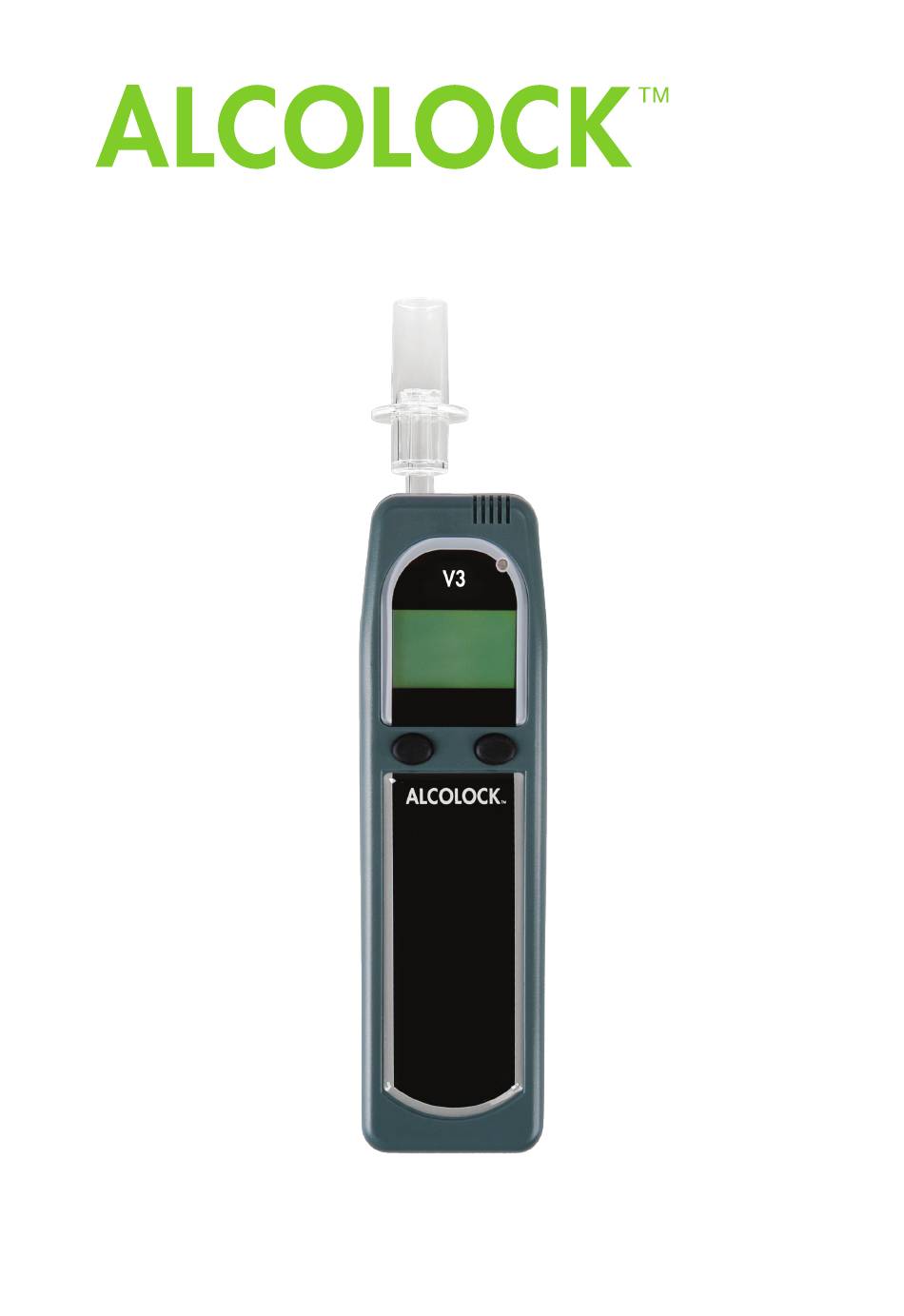

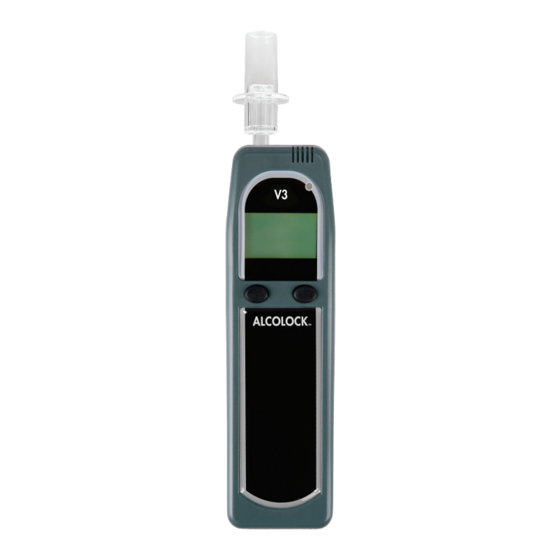

- Page 1 SERIES B-2 Calibration manual Alcohol gas standard...
- Page 2 F +1 416 619 3501 info@acs-corp.com acs-corp.com ACS, ALCOHOL COUNTERMEASURE SYSTEMS, ALCOLOCK and “The Molly” are trademarks of Alcohol Countermeasure Systems (International) Inc. and are used under license. Alcohol Countermeasure Systems is the trading style of Alcohol Countermeasure Systems Corp.
- Page 3 CAUTION! • It is recommended calibration be done indoors, in a service facility, by maintenance code or using an ACS download station • This calibration guide is intended for use by trained technicians only COMPRESSED GAS SAFETY • Damaged or broken valves can turn a canister into an unguided missile. Attach the valve in a safe location • Calibration should be performed indoors, in a service facility, where the gas standard cylinder can be properly stored...
- Page 4 • Press Next to move the cursor to the next digit. With the code entered, press Next to move the cursor to OK, and press Select. In the service menu, press Next to scroll to Calibration, and press Select. ALCOLOCK V3 SERIES B-2...
- Page 5 In the Date / Time screen, do I or II: If the date and time are correct, press OK – the Select type menu is displayed. If the date or time is incorrect, change as follows: NOTE: If a tachograph is installed, the date and time cannot be changed. a.
- Page 6 CALIBRATION IS COMPLETE The V3 handset returns to ready state and Blow for 5 seconds is displayed. NOTE: If the calibration fails on numerous attempts, the sensor may need replacement. Contact an authorized service provider for return instructions. ALCOLOCK V3 SERIES B-2...
- Page 7 TROUBLESHOOTING In the event of a calibration failure, first check the common causes of errors: • Plastic tubing has been overused or has condensation present • The alcohol gas standard value is not 130 PPM, or the value has been incorrectly entered in the Select Value menu • The alcohol gas standard is expired • All connections to and from the gas valve are not secured properly • The value entered in Altitude menu is incorrect ALTITUDE REFERENCE TABLE...
- Page 8 CAM-ENG-60-000521-A © 2013...
