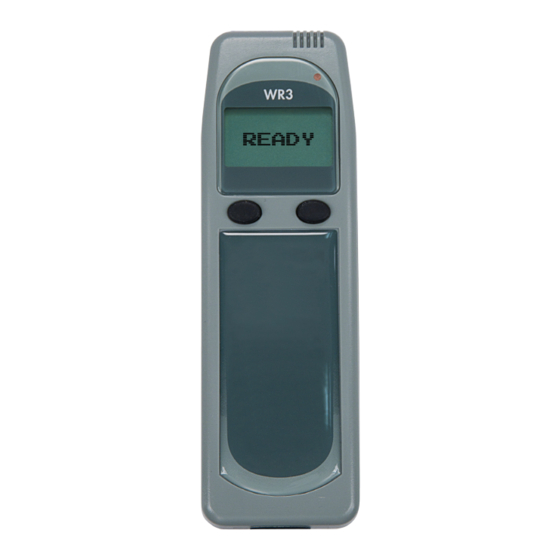

ALCOLOCK
WR3
TM
I G N I T I O N I N T E R L O C K
Instruction manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IGNITION INTERLOCK WR3 and is the answer not in the manual?

Questions and answers

Related Manuals for Alcolock IGNITION INTERLOCK WR3

Summary of Contents for Alcolock IGNITION INTERLOCK WR3

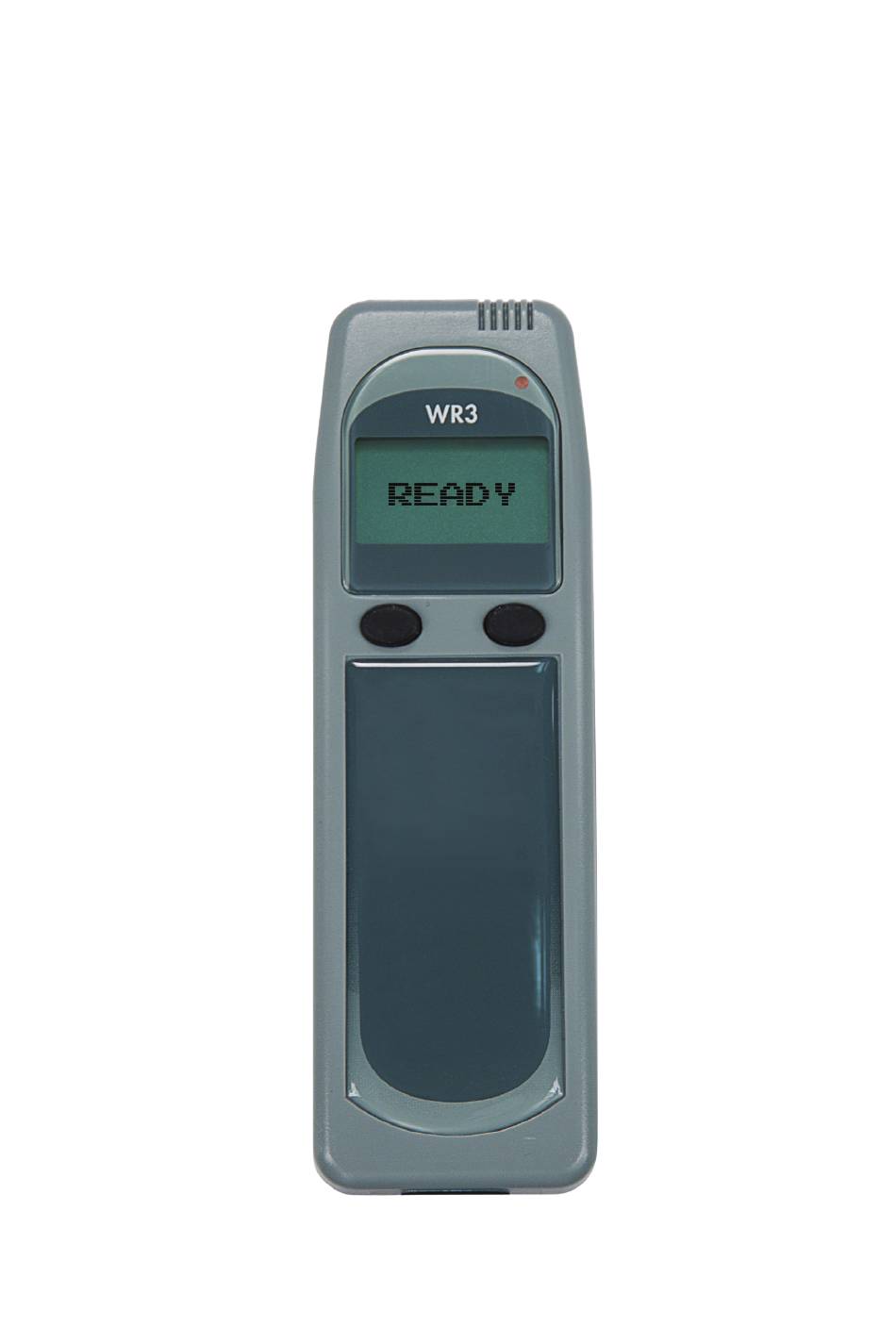

  • Page 1 ALCOLOCK I G N I T I O N I N T E R L O C K Instruction manual...
  • Page 2 T +1 888 252 6638 F +1 450-491 7703 ACS, ALCOHOL COUNTERMEASURE SYSTEMS, ALCOLOCK and the “Molly” are trademarks of Alcohol Countermeasure Systems (International) Inc. and are used under license. Alcohol Countermeasure Systems is the trading style of Alcohol Countermeasure Systems (International) Inc.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Basic operations......................1 Starting ........................1 Retesting ........................2 Restarting the vehicle ....................3 Disconnecting the handset ..................4 Advanced operations ....................5 Sleep ........................5 Automatic wake-up ....................6 Additional features ......................7 Clock adjustment ......................7 Volume control......................7 Language selection ....................8 Maintenance ........................9 Service date ......................9 Emergency override ....................9 Servicing your vehicle (TPM) .................11 Reset code ......................12...

  • Page 4: Basic Operations

    If you blew incorrectly, the test will be aborted and the Handset will display Hum louder, Blow softer Blow longer, Blow longer and harder or Blow then hum. Wait for the Handset to display Ready for test before trying again. ALCOLOCK WR3...

  • Page 5: Retesting

    5. If Start Motor is displayed and the status light is solid green, you passed the breath test. You may now start the vehicle. Start motor 6. Once the WR3 detects the motor running, a Drive Safely message will be displayed. The vehicle may be driven as normal.

  • Page 6: Restarting The Vehicle

    You may continue to drive the vehicle. 4B. If Pullover, Turn Off motor is displayed and the status light is flashing red, the IGNITION INTERLOCK WR3 has detected alcohol. You must safely park the vehicle and turn OFF the motor, then press and hold the right button.

  • Page 7: Disconnecting The Handset

    DISCONNECTING THE HANDSET If you wish to disconnect the Handset for any reason, follow these instructions. 1. To disconnect the Handset pull the sleeve - without turning. WARNING! Do not pull on the Handset cord. The connectors can only be disengaged by pulling on the sleeve.

  • Page 8: Advanced Operations

    ADVANCED OPERATIONS SLEEP The IGNITION INTERLOCK WR3 can be placed into sleep mode after the motor has been turned OFF. In sleep mode, the WR3 will operate at minimum power to conserve energy in your vehicle battery. The WR3 will automatically go into sleep mode when the sleep timer expires. You can chose from 4 sleep times as described below.

  • Page 9: Automatic Wake-Up

    AUTOMATIC WAKE-UP The IGNITION INTERLOCK WR3 can be programmed to wake-up 3 times a day. This feature ensures that the Handset is warmed to operating temperature before you enter the vehicle. Programming instructions are provided below. NOTE: The wake-up feature will be temporarily disabled if the WR3 is not used for 3 consecutive days.

  • Page 10: Additional Features

    ADDITIONAL FEATURES CLOCK ADJUSTMENT The clock of the IGNITION INTERLOCK WR3 can be changed by the user in half hour increments. This allows for time changes to/from Daylight Saving Time. It also allows the Handset clock to be set to the local time, when traveling through different time zones.

  • Page 11: Language Selection

    Select Exit to return to exit the user menu. Exit LANGUAGE SELECTION The IGNITION INTERLOCK WR3 can display messages in French or English. Access the user menu to change the display language. 1. Press and hold the left button to access the user menu.

  • Page 12: Maintenance

    MAINTENANCE SERVICE DATE As with other breath alcohol testers, the IGNITION INTERLOCK WR3 Handset must be serviced at regular intervals. A service reminder will be displayed on the Handset starting 7 days before the Service date. The next Service date, as well as the time of your service appointment, can be viewed in the user menu as follows: 1.
  • Page 13 2. Wait… will be displayed and a timer will start a 20 second countdown. During the countdown you may exit Override and return to the user menu by pressing and holding the right Wait... 20 seconds button. To continue with Override wait until the countdown is over. NOTE: Selecting Override will trigger an audible and visual alarm.

  • Page 14: Servicing Your Vehicle (Tpm)

    2. Using the right button to select the number and the left button to move the cursor, input the TPM code and select OK?. _ _ _ _ OK? 3. After entering the TPM code, the vehicle may be started without a breath test. Start Motor ALCOLOCK WR3...

  • Page 15: Reset Code

    RESET CODE In the instance where the vehicle is in a Permanent Lockout condition because the Lockout Date has passed, a Reset Code may be entered. This code changes daily. The Reset Code will set back the lockout date and return your vehicle to normal operation. NOTE: Special authorization must be obtained to use this code.
  • Page 16 IRM-ENG-60-000113-C © 2014...
