Summary of Contents for Razer Nari Ultimate
- Page 1 RAZER NARI MASTER GUIDE...

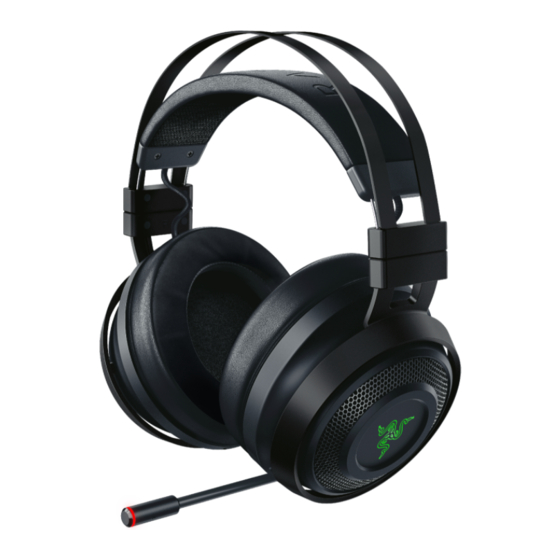

- Page 2 The Razer Nari Ultimate is the wireless gaming headset equipped with HyperSense technology for an additional layer of immersion. The swiveling earcups are equipped with cooling gel-infused cushions with memory foam that reduce heat buildup for comfortable gaming. THX Spatial Audio delivers next-generation virtual surround sound, while Game/Chat Balance in wireless mode provides the perfect mix of game and chat volume.
-
Page 3: Table Of Contents
5. SETTING UP YOUR RAZER NARI ULTIMATE ..............7 6. USING YOUR RAZER NARI ULTIMATE ................12 7. INSTALLING RAZER SYNAPSE 3 FOR YOUR RAZER NARI ULTIMATE ......15 8. CONFIGURING YOUR RAZER NARI ULTIMATE VIA RAZER SYNAPSE 3 ..... 16 9. -
Page 4: Package Contents / System Requirements
1. PACKAGE CONTENTS / SYSTEM REQUIREMENTS PACKAGE CONTENTS ▪ Razer Nari Ultimate gaming headset ▪ USB wireless transceiver ▪ Charging cable ▪ 3.5mm combo cable ▪ Important Product Information Guide SYSTEM REQUIREMENTS HARDWARE REQUIREMENTS ▪ Devices with a USB port ▪... -
Page 5: Registration / Technical Support
Register your product online at razerid.razer.com/warranty to get real-time information on your product’s warranty status. If you haven’t registered for a Razer ID yet, register now at razerid.razer.com to get a wide range of Razer benefits. Your product’s serial number can be found underneath the leatherette cushion, as shown here. -
Page 6: Technical Specifications
▪ Wireless range: 12 m / 40 ft ▪ Wireless frequency: 2.4 GHz ▪ Analog connection: 4 – pole ▪ Battery life: 8 hours with Razer Chroma lighting and HyperSense / 24 hours without Razer Chroma lighting and HyperSense MICROPHONE ▪... -
Page 7: Device Layout
Auto-adjusting headband Volume control Cooling gel-infused ear cushions 3.5mm combo port 50mm drivers with HyperSense Charging port Technology Power button Razer Chroma backlighting Status indicator Mic mute indicator Game/Chat balance Retractable mic Mic mute button Transceiver storage Charging cable USB wireless transceiver 3.5mm combo cable... -
Page 8: Setting Up Your Razer Nari Ultimate
5. SETTING UP YOUR RAZER NARI ULTIMATE CHARGING YOUR HEADSET Connect your Razer Nari Ultimate to a powered USB port using the charging cable. For best results, please fully charge your headset before using it for the first time. A depleted unit will fully charge in about 4 hours. - Page 9 1. Plug the USB wireless transceiver to your PC. 2. Right-click on the sound icon on the system tray, and then select Sounds. 3. On the Playback tab, select Razer Nari Ultimate - Chat from the list, and then set it as the Default Communication Device.
- Page 10 4. On the Playback tab, select Razer Nari Ultimate - Game from the list, and then set it as the Default Device. In the Recording tab, select Razer Nari Ultimate - Chat from the list and click the ‘Set Default’ button.
- Page 11 Note: To return the USB wireless transceiver, push it into the compartment until you hear a click. 2. Plug the USB wireless transceiver to your device and make sure your Razer Nari Ultimate is the default input and output audio device.
- Page 12 4. Wait until the status indicator is static blue. NOTIFICATION STATUS Note: Keep your headset within close proximity of the USB Blinking Pairing wireless transceiver for a faster and more stable connection. If your headset fails to connect, it Rapid blinking Connecting will automatically power off after a few minutes.
-
Page 13: Using Your Razer Nari Ultimate
6. USING YOUR RAZER NARI ULTIMATE USING THE VOLUME CONTROL Rotate the volume control to increase or decrease the volume. USING THE GAME/CHAT BALANCE Rotate the game/chat balance to increase the in-game volume and decrease the voice chat volume or vice versa. By default, the notch on the wheel is set to the middle to indicate 50% chat and 50% game volume. - Page 14 USING THE RETRACTABLE MIC Pull the tip of the mic until it is fully extended. Bend the mic until it is parallel to your mouth, then adjust the length as preferred. Make sure the mic diaphragm is in front and the air vent is facing away from your mouth. Press the mic mute button to mute or unmute the mic.
- Page 15 EXTENDING YOUR HEADSET’S LIFESPAN We recommend stretching the headset gently apart before placing them over your head to minimize headband stress. However, please avoid overstretching the headset beyond its technical limits. ™ F O R G A ME R S . B Y G A M E R S .
-
Page 16: Installing Razer Synapse 3 For Your Razer Nari Ultimate
7. INSTALLING RAZER SYNAPSE 3 FOR YOUR RAZER NARI ULTIMATE Step 1: Make sure your Razer device is connected to the USB port of your computer. Step 2: Install Razer Synapse 3 when prompted* or download the installer from razer.com/synapse. -
Page 17: Configuring Your Razer Nari Ultimate Via Razer Synapse 3
Operating System. SYNAPSE TAB The Synapse tab is your default tab when you first launch Razer Synapse 3. This tab allows you to navigate the Dashboard subtab. DASHBOARD The Dashboard subtab is an overview of your Razer Synapse 3 where you can access all your Razer devices, modules, and online services. - Page 18 AUDIO TAB The Audio tab is the main tab for your Razer Nari Ultimate. From here, you can customize your device’s settings to unleash its full potential. Changes made under this tab are automatically saved to your system and cloud storage.
- Page 19 The Sound subtab is for modifying your device’s sound properties. Profile Profile is a data storage for keeping all your Razer peripheral’s settings. By default, the profile name is based on your system’s name. To add, rename, duplicate, or delete a profile, simply...
- Page 20 MIXER The Mixer subtab allows you to enable/disable the THX Spatial Audio, as well as calibrate the audio positioning. ENHANCEMENT The Enhancement subtab is for customizing the incoming audio settings. ™ F O R G A ME R S . B Y G A M E R S .
- Page 21 Bass Boost Enhances the low frequency response to improve the bass output of your headset Sound Normalization Reduces the loudest audio received to avoid sudden and unpleasant increase in volume from effects such as shouting or explosions. Voice Clarity Improves the quality of incoming voice conversations by filtering the sound to improve clarity and adjusts the volume.
- Page 22 The Mic subtab enables you to change the settings for all outgoing mic audio. Mic Volume Adjusts the microphone input or mutes the mic when the function is disabled. Mic Sensitivity Changes the microphone’s sensitivity so that it cuts out background noises and isolate your voice.
- Page 23 Lighting The Lighting subtab enables you to modify your Razer device’s light settings. Brightness You can turn off your Razer device’s lighting by toggling the Brightness option or increase/decrease the luminance using the slider. Switch Off Lighting This is a power saving tool which allows you to disable your device’s lighting in response to your system’s display turning off and/or automatically power down when your Razer Nari...
- Page 24 Static Select a color selected color If you have other supported Razer Chroma-enabled devices, you can synchronize their quick effects with your Razer device by clicking the Chroma Sync button ( Advanced Effects The Advanced Effects option allows you to choose a Chroma Effect you want to use on your Razer Chroma-enabled peripheral.
- Page 25 The Profiles tab is a convenient way of managing all your profiles and linking them to your games and applications. DEVICES View which Razer device is using a specific profile using the Devices subtab. To create a new profile within the selected device, simply click the add button ( ). To rename, duplicate, or delete a profile, simply press the Miscellaneous button ( ).
- Page 26 You can also sort games based on alphabetical order, last played, or most played. Added games will still be listed here even if it is not linked to a Razer device. ™...
- Page 27 Studio The Studio subtab enables you to create and edit your own Chroma Effects which you can apply to all supported Razer Chroma-enabled devices. This tab can also be accessed under the Dashboard’s Chroma module. To add, rename, duplicate, or delete a Chroma Effect, simply click the Miscellaneous button ( ).
- Page 28 Apps The Apps subtab is where you can enable or disable third party integrated apps for your Razer Chroma-enabled peripherals. The Apps tab can also direct you to the Chroma Workshop where you can download these third-party apps. ™...
- Page 29 RESET The Reset tab allows you to perform a factory reset on all connected Razer devices with on- board memory. All profiles stored on the selected device’s on-board memory will be erased. Note: Performing a factory reset on devices without on-board memory will only create a new profile for your device on Razer Synapse 3 using the default settings.
-
Page 30: Safety And Maintenance
9. SAFETY AND MAINTENANCE SAFETY GUIDELINES In order to achieve maximum safety while using your Razer Nari Ultimate, we suggest that you adopt the following guidelines: Should you have trouble operating the device properly and troubleshooting does not work, unplug the device and contact the Razer hotline or go to support.razer.com... -
Page 31: Legalese
LIMITATION OF LIABILITY Razer shall in no event be liable for any lost profits, loss of information or data, special, incidental, indirect, punitive or consequential or incidental damages, arising in any way out of distribution of, sale of, resale of, use of, or inability to use the Product. In no event shall Razer’s liability exceed the retail purchase price of the Product. - Page 32 (in so far as it is invalid or unenforceable) shall be given no effect and deemed to be excluded without invalidating any of the remaining terms. Razer reserves the right to amend any term at any time without notice.
