- Page 1 KVM switch and rackmount screen technology User Manual 17” High Brightness FHD 1080p LCD 1000 cd/m² RP-HF617 6U Rackmount Display Panel Options : - SDI / MCS - AV / HDMI / Audio - Touchscreen / DC power - MIL-type or lockable connector...
- Page 3 ■ Re-position or relocate the receiving antenna. ■ Increase the separation between the equipment and receiver. ■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. UM-CV-751-RP-HF617-Q317V2...
-
Page 4: Table Of Contents
Contents < Part. 1 > RP-HF617 Package Content Structure Diagram & Dimension P.1 - 2 Installation < Part. 2 > Specifications / OSD / Remote Controller Product Specifications P.4 - 5 On-screen Display Operation ( OSD ) P.6 - 7 <... - Page 5 Caution : Do not spray or apply any liquids directly onto the monitor. Always apply the solution to your microfiber cloth first, not directly on the parts you are cleaning. Gently wipe the surface. Use as little pressure as possible. Wait until your monitor is completely dry before plugging it in and powering it up. UM-CV-751-RP-HF617-Q317V2...
-
Page 6: Package Content

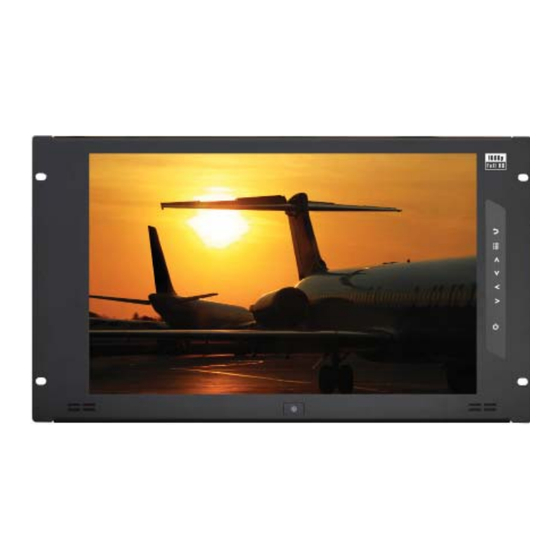

< Part 1 > < 1.1 > Package Content RP-HF617 unit X 1 - 6ft VGA cable X 1 - Power adapter X 1 - Power cord X 1 < 1.2 > Structure Diagram Front view Power adapter Rear view... - Page 7 < 1.2 > Dimension RP-HF617 Front View Side View UNIT : mm Bottom View 1mm = 0.03937 inch Product Dimension Packing Dimension Gross Model (W x D x H) (W x D x H) Weight Weight 480 x 48 x 266 mm 529 x 124 x 451 mm 4.5 kg...
-
Page 8: Installation
< 1.3 > Installation Step ■ Mount the display panel with M6 screw set. ■ M6 screw x 4 pcs required ( Left & right side ). M6 screw sets are not provided. Step ■ Fix the LCD into the rack. UM-CV-751-RP-HF617-Q317V2... -
Page 9: Product Specifications
< Part 2 > < 2.1 > Product Specifications RP-HF617 Panel Size ( diagonal ) 17.3-inch Widescreen TFT color LCD Panel Display pixel ( dots x lines ) 1920 x 1080 Brightness ( typ. ) 1000 Contrast Ratio ( typ. ) - Page 10 640 x 350 x 70Hz HDMI Input PC Signal Same as VGA Video Signal 1080p : 50 / 60Hz 720p : 50 / 60Hz 480p : 60Hz 576p : 50Hz Audio Signal 2ch Linear PCM ( 32 / 44.1 / 48 KHz ) UM-CV-751-RP-HF617-Q317V2...
- Page 11 < 2.2 > On-screen Display Operation ( OSD ) RP-HF617 Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control...
-
Page 12: On-Screen Display Operation ( Osd )
H position, V position, phase and clock Video: for the colour, tint, sharpness, noise reduction, DCDi and TV Setup Audio: for volume, bass, treble, balance, AVL and mute Misc: for the language, OSD position, graphic mode, ratio, reset and timer UM-CV-751-RP-HF617-Q317V2... - Page 13 Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView displays, a SDI input module can support up to 1080p @60Hz resolution without using additional space or power and it comes standard with a 2-year warranty.
-
Page 14: Part. 3 > Options
LCD displays cascade together via CAT 5/6 cable, and daisy chain up to 1,000 meters. Designed for use with CyberView LCD displays, Austin Hughes provides a MCS input module without using additional space or power and it comes standard with a 2-year warranty. -
Page 15: Av3.0 Upgrade
RP-HF617 < 3.3 > AV3.0 Upgrade Options : - HDMI ( HDMI 1.3, CEA-861-D - AV ( S-Video + Composite, BNC ) - Audio ( Built-in Dual Stereo Speakers, 2W x 2 ) ( 3.5mm audio jacks for audio in & out ) ( 1 ) In some circumstances, if the user connects the LCD to PC via HDMI port for video and audio signals, the LCD may display incorrectly on a full screen. - Page 16 Step 2. Double click the Setup.exe Step 3. Follow the installation instruction to finish the setup Step 4. After installation, run the TouchKit program & the “4 point calibration” Please do the initial calibration after the first setup P.11 UM-CV-751-RP-HF617-Q317V2...
- Page 17 < 3.5 > Options : DC Power RP-HF617 Model 125V 250V Input rating Input voltage: 24-Volt 48-Volt 110-Volt 300-Volt Input range: 18 ~ 36V 36 ~ 75V 66 ~ 160V 180 ~ 425V Input current - No load 50 mA...
-
Page 18: Mil-Type Or Lockable Connector
Part no. Standard Lockable DC Power YM-Ext-461CP001 D-type 3W3 Connector ( Male ) LUSB - A111 - 00 MIL - type or Lockable connectors above can be integrated with our LCD displays. Sale service just for connectors not provided. P.13 UM-CV-751-RP-HF617-Q317V2...
