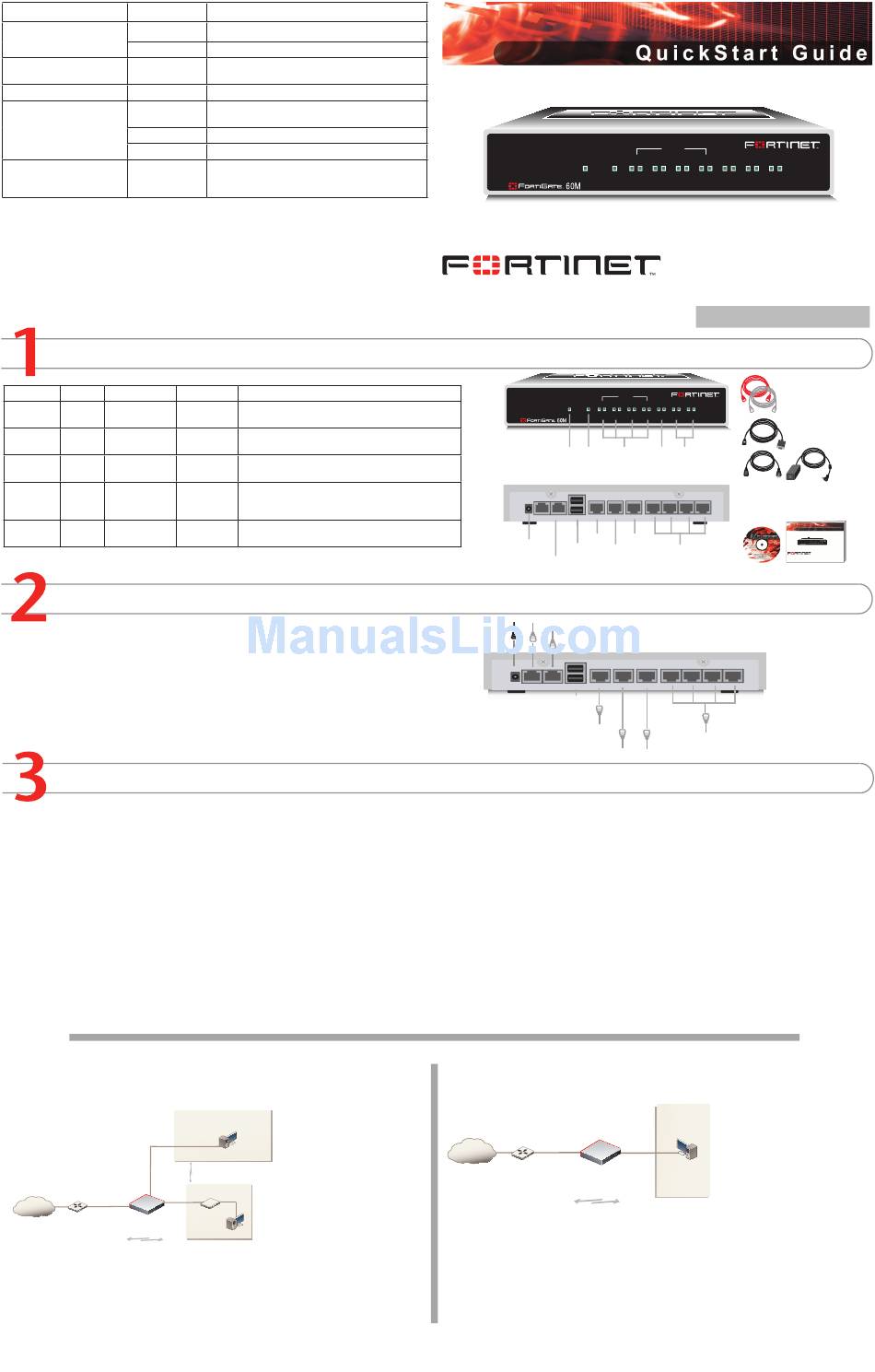

Fortinet FortiGate FortiGate-60M Quick Start Manual

LED State
Green
Power
Off
Green/Flashing
Status
Green
Off
Green
Link (Internal, DMZ,
WAN1, WAN2) Flashing Green
Off
100 Green
(Internal, DMZ,
WAN1, WAN2)

Checking the Package Contents

Connector Type Speed
Internal RJ-45 10/100 Base-T
WAN1 and RJ-45 10/100 Base-T
WAN2
DMZ RJ-45 10/100 Base-T
Console RJ-45 9600 Bps
USB USB

Connecting

Connect the FortiGate unit to a power outlet and to the internal and external networks.
• Place the unit on a stable surface. It requires 1.5 inches (3.75 cm) clearance above and
on each side to allow for cooling.
• Plug in power cable to unit before connecting power.
• The Status light flashes while the unit is starting up and turns off when the system is up
and running.

Planning the Configuration

Before beginning to configure the FortiGate unit, you need to plan how to integrate the unit into your network. Your configuration plan depends on the operating mode you select: NAT/Route
mode (the default) or Transparent mode.

Quick configuration using the default settings

You can quickly set up your FortiGate unit for a home or small office using the web-based
manager and the default settings in NAT/Route mode.
All you need to do is set your network computers to use DHCP, access the web-based
manager, and configure the required settings for the external interface. You can also
configure DNS and a default route if needed. The FortiGate unit automatically assigns IP
addresses for up to 100 computers in the internal network.
1. Connect the FortiGate unit to the network.
2. Set the all the network computers to use DHCP to automatically obtain an IP address.
The FortiGate internal interface acts as a DHCP server for the internal network and assigns
IP addresses to all computers in the range 192.168.1.110 –192.168.1.210.
3. From the management computer browse to https://192.168.1.99. The FortiGate
web-based manager appears.
4. Go to System > Network > Interface and select Edit for the External interface.
NAT/Route mode
In NAT/Route mode, each FortiGate unit is visible to the network that it is connected to. All of
its interfaces are on different subnets. Each interface that is connected to a network must be
Internal
192.168.1.99
WAN1
10.10.10.1
204.23.1.5
Internet
Router
NAT mode policies controlling
traffic between internal
and external networks.
No traffic can pass through the FortiGate unit until you add firewall policies. In NAT/Route
mode, firewall policies can operate in NAT mode or in Route mode. In NAT mode, the Forti-
Gate unit performs network address translation before IP packets are sent to the destination
network. In Route mode, no translation takes place.
Refer to the Documentation CD-ROM for information on how to control traffic, and how to configure HA, antivirus protection, FortiGuard, Web content filtering, Spam filtering,
intrusion prevention (IPS), and virtual private networking (VPN).
Description
The FortiGate unit is on.
The FortiGate unit is off.
The FortiGate unit is starting up.
The FortiGate unit is running normally.
The correct cable is in use and the connected
equipment has power.
Network activity at this interface.
No link established.
The interface is connected at 100Mbps.
Protocol Description
Ethernet A 4-port switch connection for up to four devices or
the internal network
Ethernet Redundant connections to the Internet.
Ethernet Optional connection to a DMZ network or to other
FortiGate-60M units for high availability.
RS-232 Optional connection to the management computer.
Provides access to the command line interface
(CLI).
USB Optional connection for the FortiUSB key, modem or
backup operation.
configured with an IP
Internal Network
address that is valid for
that network.
You would typically use
NAT/Route mode when the
192.168.1.3
FortiGate unit is deployed
Routing policies controlling
traffic between internal
as a gateway between
networks.
DMZ
private and public net-
DMZ
network
works. In its default
NAT/Route mode configu-
ration, the unit functions as
10.10.10.2
a firewall. Firewall policies
control communications
through the FortiGate unit.
