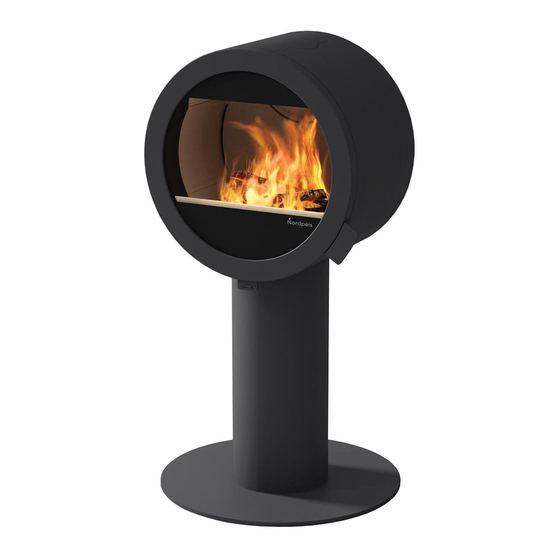

  • Page 1 Monterings- og bruksanvisning Installations- och bruksanvisning Installation- and user manual Asennus- ja käyttöohje Installations- und Benutzerhandbuch Manuel d’installation et d’utilisation ME Pedestal Art.no: SN-ME000-P24, SN-ME000-P14 Last updated: 29.05.2018 Test Report No: RRF 40 17 4683, NS 17 4683...

  • Page 2: Important Safety Precautions

    IMPORTANT SAFETY PRECAUTIONS! INDEX 1. Before Installing a New Stove 1. Please follow the installation manual when Chimney Draught connecting your stove / fireplace to the chimney / Air Supply flue pipe. If connected differently from instruction please, consider the heat radiation from the flue 2.

  • Page 3: Before Installing A New Stove

    • insulation materials/requirements between the country where the product is installed. Nordpeis AS is not fireplace surround and back wall responsible for wrongly assembled stoves. • size of floor plates in front of fireplace if required •...

  • Page 4: Distance To Combustible Material

    5. Lighting the fire for the first time Draft at flue connector 15 - 25 recommended (Pa) When the stove is assembled and all instructions have Nominal heat output (kW) been observed, a fire can be lit. Efficiency (%) CO @ 13% O2 (%) 0,07 Take care when inserting logs into the burn chamber, Flue gas temperature (°C)

  • Page 5: Warranty

    Ceramic glass has a higher melting Nordpeis offers a one-year warranty on these parts. temperature, and can therefore not be recycled together After this, replacements can be purchased.
  • Page 6 Warning: Warning: NEVER use a lighting fuel such as NEVER use impregnated wood, painted wood, petrol, kerosene, alcohol or similar for lighting plywood, chipboard, rubbish, milk cartons, a fire. This could cause injury to you as well as printed material or similar. If any of these items damaging the product.
  • Page 7 Some advice in case of combustion problems Error Explanation Solution The chimney is blocked Contact a chimney sweeper / dealer for more information or clean The flue is sooty or there is accumulated soot on the the flue, smoke baffle and burn chamber. No draught smoke baffle The smoke baffle is wrongly positioned...
  • Page 8 Me Pedestal with sideglass = mm / air / chimney Revision note: Revision by: Date: Material: Name: Created by: Weight (kg.): Format: Me - Stove P.Żabiński 16.09.2016 85.06 Scale: Checked by: Replace: Me - Piec Sheet: Nordpeis AS Gjellebekkstubben 11...
  • Page 9 FIG 1A ME Pedestal with sideglass - safety distances = Brannmur/ Brandmur/ Firewall/ Palomuuri/ Hitzenschutzwand/ Mur pare feu = Brennbart materiale/ Brännbart material/ Combustible material/ Palavasta materiaalista/ Brennbarem Material/ Matières combustibles 1100 mm 700 mm 1100 mm 400 mm...
  • Page 10 FIG 1B ME Pedestal w/o sideglass - safety distances = Brannmur/ Brandmur/ Firewall/ Palomuuri/ Hitzenschutzwand/ Mur pare feu = Brennbart materiale/ Brännbart material/ Combustible material/ Palavasta materiaalista/ Brennbarem Material/ Matières combustibles 1100 mm 300 mm 1100 mm 100 mm...
  • Page 11 FIG 2 ME Pedestal with sideglass / w/o sideglass Bakre luftstilkobling / Bakre luftanslutning Rear air connection / Palamisilmaliitäntä takana Hinterer Luftanschluss / Raccordement d’air par l’arrière FIG 2a TORX 21-30011-408 x4 22-ME000-550...
  • Page 12 FIG 3 ME Pedestal with sideglass / w/o sideglass Nedre luftstilkobling / Undre luftanslutning Bottom air connection / Palamisilmaliitäntä pohjassa Unterer Luftanschluss / Raccordement d’air par le bas FIG 3a...
  • Page 13 FIG 3b TORX FIG 3c TORX 21-30011-408 x4 22-ME000-550...
  • Page 14 FIG 4 ME Pedestal with sideglass / w/o sideglass Bakre røykrørstilkobling / Bakre rökrörsanslutning / Rear flue connection Savupiippuliitäntä takana / Hinterer Rauchgasabschluss / Raccordement du conduit par l’arrière FIG 4a 4 mm 21-30001-520 x2 SP-ME000-070...
  • Page 15 FIG 5 ME Pedestal with sideglass / w/o sideglass Øvre røykrørstilkobling / Övre rökrörsanslutning / Top flue connection Savupiippuliitäntä kannessa / Oberer Rauchgasabschluss / Raccordement du conduit par le haut FIG 5b 4 mm...
  • Page 16 FIG 5c 4 mm 21-30001-520 x2 SP-ME000-070 FIG 6 ME Pedestal with sideglass Demontering av Thermotteplater / Demontering av thermotte-plattor Thermotte plates disassembling/ Thermotte-levyjen irrotus Thermotte-Platten-Ausbau / Démontage des Plaques Thermotte...
  • Page 17 FIG 6a FIG 6b...
  • Page 18 FIG 6c FIG 6d...
  • Page 19 FIG 6e FIG 6f...
  • Page 20 FIG 7 ME Pedestal w/o sideglass Demontering av Thermotteplater / Demontering av thermotte-plattor Thermotte plates disassembling/ Thermotte-levyjen irrotus Thermotte-Platten-Ausbau / Démontage des Plaques Thermotte FIG 7a...
  • Page 21 ME Pedestal FIG 6a-6f FIG 7b (*) model w/o side glass For å montere inn igjen Thermotteplatene settes disse inn i motsatt rekkefølge de ble tatt ut. Sätt tillbaka thermotte-plattorna på samma sätt som de togs bort, men i omvänd ordningsföljd.
  • Page 22 FIG 8 ME Pedestal with sideglass / w/o sideglass Fyringsventil / Luftventilen Air vent control / Sytytysilma Sekundärluftventil / Commande d’apport d’air NO: Luftventilen vris mot høyre for å øke lufttilførsel. Ventilen har to funksjoner. A. Når du vrir ventilen helt til høyre er den i opptenningsstilling.
  • Page 23 FIG 9 ME Pedestal with sideglass / w/o sideglass Dørregulering / Dörrjustering Door regulation / Oven säätö Türregulierung / Régulation de la porte 5 mm FIG 10 ME Pedestal with sideglass / w/o sideglass Nordpeis AS Gjellebekkstubben 11 3420 Lierskogen, Norway...
  • Page 24 PLASSERING AV SERIENUMMER / POSITION OF THE SERIAL NUMBER SARJANUMERON SIJAINTI / PLACERING AV SERIENUMMER POSITION DER SERIENNUMMER / POSITION DU NUMÉRO DE SÉRIE...
  • Page 25 Nordpeis AS Gjellebekkstubben 11 3420 Lierskogen, Norway ME-CPR-2018/03/08 EN 13240:2001 / A2:2004 / AC:2007 Kamin zum Heizen mit festen Brennstoffen Heating of living accomodation / Year of Approval / Zulassungjahr 2018 Feuersicherheit : Fire safety: Brandverhalten: Reaction to fire: Abstand zu brennbaren Materialien:...
  • Page 26 Permanent pilot flame power requirement Pilot flame power requirement (if applicable) pilot Contact details Name and address of the supplier: Nordpeis AS, Gjellebekkstubben 11, N-3420 LIERSKOGEN, Norway...
  • Page 27 Nordpeis AS. Nordpeis ME ENERGIA · · ΕΝΕΡΓΕΙΑ · ENERGIJA · ENERGY · ENERGIE 2015/1186...
