FireRock  RUMFORD Installation, Specification And Operation Manual

FireRock RUMFORD Installation, Specification And Operation Manual

Listed masonry fireplace system. 30”, 36”, 42”, 48” modular fireplace

Advertisement

Quick Links

RUMFORD FIREPLACE
INSTALLATION, SPECIFICATION AND OPERATION MANUAL
LISTED MASONRY FIREPLACE SYSTEM

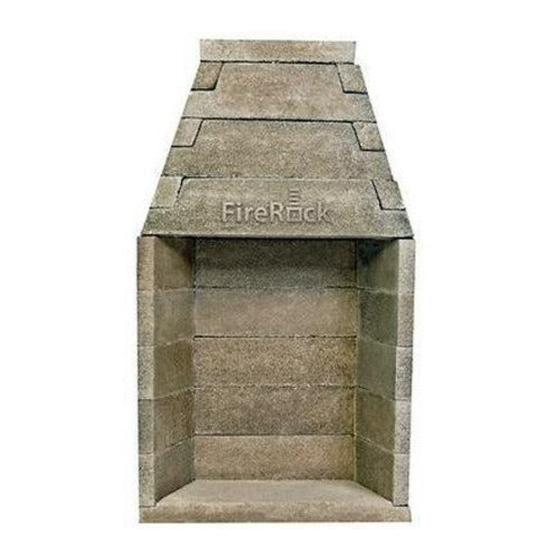

MODEL FIREROCK RUMFORD
30", 36", 42", 48" MODULAR FIREPLACE
UL 127 COMPLIANT
IMPORTANT: Read the entire manual before beginning construction.
Contents of this manual may change without prior notification
IMPORTANT: This manual contains product usage guidelines, in-field application rules, installation steps, and operating and
maintenance instructions for the FireRock Rumford pre-engineered masonry fireplace kit and LiteRock installation method. This
manual should become the property of and be reviewed by all current and future users of this product. It is the responsibility of
the general contractor and the installer to ensure that the instructions set forth in this manual are followed exactly. It is also the
responsibility of the general contractor to provide adequate clearance to combustibles (see page 12) from all fireplace surfaces as
specified herein.
Before installing this product, please consult with local building and zoning authorities regarding the need for proper permitting.
If the information in this manual (including installation instructions) is not followed exactly, a fire or explosion may result, causing
property damage, personal injury, or loss of life.
Installer: Leave this manual with the appliance.
Consumer: Keep these instructions for future use.
MANUFACTURING:
ADMINISTRATIVE:
3620 Avenue C
1500 1st Ave N #75
Birmingham, AL 35064
Birmingham, AL 35203
PHONE: (205) 639-5000
TOLL-FREE: (888) 876-1025
FAX: (888) 886-3473

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FIREROCK RUMFORD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for FireRock FIREROCK RUMFORD

  • Page 1 IMPORTANT: This manual contains product usage guidelines, in-field application rules, installation steps, and operating and maintenance instructions for the FireRock Rumford pre-engineered masonry fireplace kit and LiteRock installation method. This manual should become the property of and be reviewed by all current and future users of this product. It is the responsibility of the general contractor and the installer to ensure that the instructions set forth in this manual are followed exactly.
  • Page 2 THIS PAGE INTENTIONALLY LEFT BLANK...
  • Page 3: Table Of Contents

    TABLE OF CONTENTS Important Safety Information ..................................Materials and Equipment List ..................................Intended Use Statement ....................................Installation Considerations .................................... Warnock Hersey Listing Label ..................................Fireplace Dimensions ....................................... Clearance to Combustibles .................................... Rough Framing Dimensions ................................... Fireplace Installation ......................................14-22 Foundation ......................................Mixing and Applying Mortar .................................
  • Page 4: Important Safety Information

    For safety information regarding the operation of this fireplace, see pages 31-33. The FireRock Rumford fireplace is a modular system designed to be assembled in field using FireRock Adhesive Mortar. Each component is designed for a specific part of the firebox, smoke chamber, and flue design, and therefore only one means of assembly is possible.
  • Page 5: Materials And Equipment List

    • 5 gallon bucket 50” Base Plate • Level 56” Base Plate • Plastic shims Firebox side • FireRock Adhesive Mortar Back Wall 30” • Damper (for interior applications) Back Wall 36” • Firebrick Back Wall 42” • Masonry chimney block or UL 103 metal pipe with required accessories Back Wall 48”...
  • Page 6: Intended Use Statement

    The fireplaces and chimney system are tested and listed by Intertek Testing Service to UL 127 and UL 103. The FireRock fireplace is designed to burn wood, gas, or coal. Use solid wood, processed solid fuel fire logs, natural gas, propane, or coal fuel only.
  • Page 7 The FireRock Rumford fireplace is approved for Indoor and Outdoor use. Maintain stated clearance to combustibles for indoor and outdoor use.
  • Page 8: Installation Considerations

    Avoid placing a fireplace in an area near tall trees or buildings that can reduce air flow pressure and/or produce down drafts. FireRock Products, LLC does not warrant drafting and is not responsible for it. Refer to page 24 for more information on using an outside air kit with a FireRock pre-engineered masonry fireplace kit. B. TERMINATIONS The termination of the chimney above the roof must extend at least 3’...
  • Page 9 E. LOG LIGHTER A log lighter can be used with your FireRock fireplace as either a flush mount (installed before the firebrick) or top mount. FireRock recommends the log lighter be installed by a professional plumber. See manufacturer’s instructions for directions on how to install.
  • Page 10: Warnock Hersey Listing Label

    WARNOCK HERSEY LISTING LABEL LISTED RUMFORD STYLE MASONRY FIREPLACE SYSTEM MODEL FireRock SERIES FIREPLACE 30” RUMFORD 36” RUMFORD 42” RUMFORD 48” RUMFORD CERTIFIED TO: UL-127 WHI- CLEARANCE TO COMBUSTIBLES WITHIN ENCLOSURE AREA UNIT TO NON-COMBUSTIBLE FLOOR 0” SMOKE CHAMBER TO TOP FRAMING 1”...
  • Page 11: Fireplace Dimensions

    FIREPLACE DIMENSIONS DIMENSION 30” 36” 42” 48” OVERALL WIDTH 38” 44” 50” 56” OVERALL DEPTH 28.5” 28.5” 28.5” 28.5” FIREBOX HEIGHT 37.5” 46.125” 46.125” 54.75” SMOKE CHAMBER HEIGHT 22.375” 31.5” 31.5” 40.75” OPENING WIDTH* 32.5” 38.5” 44.5” 50.5” OPENING HEIGHT* 33.75”...
  • Page 12: Clearance To Combustibles

    CLEARANCE TO COMBUSTIBLES Opening to Side wall 28” MANTLE Opening to Combustible Trim 12’ 22” TILE/MARBLE Opening to Combustible Mantle with 8” Depth 22” Noncombustible Hearth Extension 20” front, 8” each side 28” 12” Firebox and Smoke Chamber 1” to Combustibles or Framing Smoke Chamber to Front Wall 8”...
  • Page 13: Rough Framing Dimensions

    53” 59” The numbers listed are the framing dimensions recommended by FireRock, which add ½” of air space to the required clearances. Always maintain the stated minimum clearance to combustibles for this unit. Failure to maintain stated minimum clearance to combustibles on page 12 may result in a fire or explosion, causing property damage, personal injury, or loss of life.
  • Page 14: Fireplace Installation

    It is the responsibility of the general contractor to ensure adequate foundations. NOTE: Use of the FireRock base plate is optional for either of the above foundation types (concrete slab or concrete pad). FireRock fireplaces can be installed directly on a combustible floor or a limited load-bearing floor using our LiteRock system.
  • Page 15: Mixing And Applying Mortar

    FIREPLACE INSTALLATION STEP 2: MIXING AND APPLYING MORTAR FIREROCK ADHESIVE MORTAR FireRock Adhesive Mortar must be used when building the FireRock fireplace for your FireRock warranty to be valid. Use of other mortar will void your FireRock warranty This mortar is available from your FireRock dealer or distributor.
  • Page 16: Firebox Assembly

    FIREPLACE INSTALLATION STEP 3: FIREBOX ASSEMBLY BASE PLATE The base plate must be placed on a level noncombustible surface. It is very important that your base plate be square to the room, properly centered, and level. Mark out the FIGURE 6.1 position of the base plate on the supporting floor system.
  • Page 17 LEVELING AND ALIGNING COMPONENTS It is important that each course of the firebox is level and flush with adjoining components. FireRock mortar is not intended to create a mortar joint of any thickness for leveling purposes. Leveling and alignment adjustments should be made by the use of small shims.
  • Page 18: Throat And Damper Assembly

    A piece of angled steel (2” x 2” x ¼” thick) has been provided with your FireRock fireplace kit. The length of FIGURE 7.1 this angled steel piece corresponds with the overall width ASSEMBLED THROAT of your firebox model.
  • Page 19: Smoke Chamber Assembly

    FIREPLACE INSTALLATION STEP 5: SMOKE CHAMBER ASSEMBLY SMOKE CHAMBER The smoke chamber components can only be positioned one way. The fronts and backs are identical above the damper. Remember to completely cover each component with mortar 1/2” - 1” thick where each edge of each component will lie or butt up against another component.
  • Page 20: Chimney Assembly

    FIREPLACE INSTALLATION STEP 6: CHIMNEY ASSEMBLY SOLID BLOCK CHIMNEY FireRock Solid Block Chimney (Figure 9.1) may be installed from this point. Completely cover each chimney block component with 1” of mortar, resulting in a 1/16” - 1/8” joint. “Butter” all joints to give a smooth appearance and ensure a leak-free joint.
  • Page 21 FIREPLACE INSTALLATION STEP 6: CHIMNEY ASSEMBLY (CONTINUED) OFFSET BLOCKS Each offset block provides a maximum offset of 2 5/8”. Offset direction may be left, right, back, or in a spiral pattern for “twisting” flues (see Figure 9.4). Completely cover each offset block component with 1” of mortar, resulting in a 1/16”...
  • Page 22: Firebrick Installation

    (Figure 10.3). FireRock makes no claims as to the performance of firebrick or firebrick mortars except those manufactured by FireRock. It is typical for heat stress cracks to appear in the firebricks after FULLY BRICKED FIREBOX use.
  • Page 23: Brick Flange

    BRICK FLANGE The FireRock Brick Flange (Figure 11.1) is a component that allows a true brick or stone veneer above the roofline (maximum 20 vertical feet of standard brick or equivalent). Most local building codes do not allow masonry to be supported by combustible material. Our brick flange is designed to carry the weight of a brick or stone veneer only where you see it.
  • Page 24: Outside Air Kit

    OUTSIDE AIR KIT INSTALLATION Outside air kits are an optional accessory that can be added to a FireRock fireplace to supplement combustion air. Outside air kits should be installed and used in accordance with requirements of the standard for fireplaces under national code NFPA 211. Follow manufacturer’s instructions for installation instructions and refer to local building code for proper sizing;...
  • Page 25: Typical Gypsum Board Application

    TYPICAL GYPSUM BOARD APPLICATION This fireplace is designed to be installed so a 3” ledge is left on top of the radius throat front. This ledge allows space for a framing header to maintain the required 1” clearance and at the same time align flush with the room face of the firebox. Failure to maintain stated minimum clearance to combustibles on page 12 may result in a fire or explosion, causing property damage, personal injury, or loss of life.
  • Page 26: Multi-Floor Stacking Diagram

    MULTI-FLOOR STACKING DIAGRAM *shown with Conventional units “ ” 1” “ ” 42” CONV UNIT 2-⁵/₈” = 40” (18) (22) COMPONENT NAME Base Plate (11’-0” Firebox Side Firebox Back - Straight Back Block Firebox Back - Level 3 Firebox Back - Level 4 Radius Throat Front (18) 1-¹/₈”...
  • Page 27: Metal Chimney Installation

    METAL CHIMNEY INSTALLATION Any metal chimney that carries a UL 103 compliance designation may be used with your FireRock fireplace and chimney system. A conversion adapter must be available from the metal chimney manufacturer and all necessary components, including, but not limited to, firestops, wall spacers, and insulating parts, must be utilized as required by the manufacturer.
  • Page 28: Literock Installation Method

    LITEROCK INSTALLATION METHOD The FireRock LiteRock system is an installation method that allows our wood burning fireplace to be installed directly onto a combustible surface, typically without additional structural support. Before installing onto the combustible floor system, it is important that the building contractor has verified independently that the floor system is able to withstand the weight of the installation, including the chimney.
  • Page 29 Refer to pages 17-19. The FireRock base plate is mandatory for the LiteRock Installation Method. Failure to use a base plate with this installation method may result in a fire or explosion, causing property damage, personal injury, or loss of life.
  • Page 30 (Figure 16.6). All materials that abut the fireplace or riser material must be noncombustible. The FireRock base plate is mandatory for the LiteRock Installation Method. Failure to use a base plate with this installation method may result in a fire or explosion, causing property damage, personal injury, or loss of life.
  • Page 31: Operating Instructions

    OPERATING INSTRUCTIONS This section of the manual is to help you get maximum efficiency and maximum smoke (particulate) reduction from your FireRock fireplace. If you experience any difficulty or have any questions concerning your fireplace, contact your dealer/distributor or FireRock’s Technical Support Desk (888.876.1025).
  • Page 32 USING YOUR FIREPLACE FireRock recommends a log grate be used in your fireplace for maximum performance. The use of andirons is acceptable. Use solid wood, processed solid fuel fire logs, natural gas, propane, or coal fuel only. The manufacturer’s recommendation for peak performance is to burn seasoned hardwood (wood that has been cut and dry for 6 –...
  • Page 33 Overfiring, abusive burning, or mistreatment of the fireplace unit can cause permanent damage to the unit and will invalidate your FireRock warranty. Building fires using materials other than those detailed on pages 31-33 or loading the fireplace beyond its maximum load constitutes overfiring.
  • Page 34: Parts Dimensions

    FIREPLACE PARTS BASE PLATE ISOMETRIC SIDE ELEVATION PLAN FIREPLACE SIZE DIM A DIM B DIM C 30” 38” 32” 21 1/2” FRONT ELEVATION 36” 44” 38” 27 1/2” 42” 50” 44” 33 1/2” 48” 56” 50” 39 1/2” FIREBOX SIDE PLAN SIDE ELEVATION ISOMETRIC...
  • Page 35 FIREPLACE PARTS (CONTINUED) FIREBOX BACK WALL PLAN SIDE ELEVATION FRONT ELEVATION ISOMETRIC FIREPLACE SIZE DIM A 30” 29 7/8” 36” 35 7/8” 42” 41 7/8” 48” 47 7/8” RADIUS THROAT FRONT PLAN SIDE ELEVATION FRONT ELEVATION ISOMETRIC FIREPLACE SIZE DIM A DIM B 30”...
  • Page 36 FIREPLACE PARTS (CONTINUED) SQUARE THROAT BACK PLAN FIREPLACE SIZE DIM A SIDE ELEVATION FRONT ELEVATION ISOMETRIC 30” 38” 36” 44” 42” 50” 48” 56” THROAT SIDE (LEFT) BACK ELEVATION SIDE ELEVATION PLAN ISOMETRIC...
  • Page 37 FIREPLACE PARTS (CONTINUED) THROAT SIDE (RIGHT) BACK ELEVATION SIDE ELEVATION PLAN ISOMETRIC SMOKE CHAMBER FRONT/BACK PLAN SIDE ELEVATION FRONT ELEVATION ISOMETRIC FIREPLACE SIZE ROWS OF BLOCKS NEEDED DIM A 30” 32” 36” 38”, 32” 42” 44”, 38” 48” 50”, 44”, 38”...
  • Page 38 FIREPLACE PARTS (CONTINUED) UNIVERSAL SMOKE CHAMBER SIDE PLAN SIDE ELEVATION FRONT ELEVATION ISOMETRIC CHIMNEY BASE SIDE ELEVATION PLAN ISOMETRIC FIREPLACE SIZE DIM A 30” 26” 36” 26” 42” 32” 48” 32”...
  • Page 39 FIREPLACE PARTS (CONTINUED) CHIMNEY BLOCK SIDE ELEVATION PLAN ISOMETRIC...
  • Page 40 THIS PAGE INTENTIONALLY LEFT BLANK...
  • Page 41: Terms And Conditions

    Buyer, FireRock, at its sole discretion and Buyer’s expense, may agree as a service to Buyer to process Buyer’s claim against the carrier for any loss or damage in transit, provided that such claim is received by FireRock within two (2) days of delivery of the Goods to Buyer.
  • Page 42 5. SECURITY INTEREST: As collateral security for the payment of the purchase price of the Goods, Buyer hereby grants to FireRock a lien on and security interest in and to all of the right, title and interest, to and under the Goods, wherever located, and whether now existing or hereafter arising or acquired from time to time, and in all accessions thereto and replacements or modifications thereof, as well as all proceeds (including insurance proceeds of the foregoing).
  • Page 43 HEIRS AND ASSIGNS. 14. TERMINATION: In addition to any remedies that may be provided under this Agreement, FireRock may terminate this Agreement with immediate effect upon written notice to Buyer, if Buyer: (a) fails to pay any amount when due under this Agreement;...
  • Page 44 Commercial Arbitration Rules of the AAA. The AAA shall designate a panel of ten (10) potential arbitrators knowledgeable in the subject matter of the Dispute. Each of FireRock and Buyer shall designate, within thirty (30) days of the receipt of the list of potential arbitrators, one of the potential arbitrators to serve, and the two arbitrators so designated shall select a third arbitrator from the eight remaining candidates.
  • Page 45 MASONRY FIREPLACES – EXPRESS LIMITED WARRANTY FireRock warrants to the original Buyer (including, if the original Buyer is a contractor, the original purchaser of a new, or the current owner of an existing, home or other building into which the Goods are installed) that the fireplace purchased from FireRock (the “Fireplace”) will be free from material defects in materials, under normal use, for twenty (20 years).
  • Page 46 THIS PAGE INTENTIONALLY LEFT BLANK...
  • Page 47 THIS PAGE INTENTIONALLY LEFT BLANK...
  • Page 48 Version 2.1 | 10/2019...
