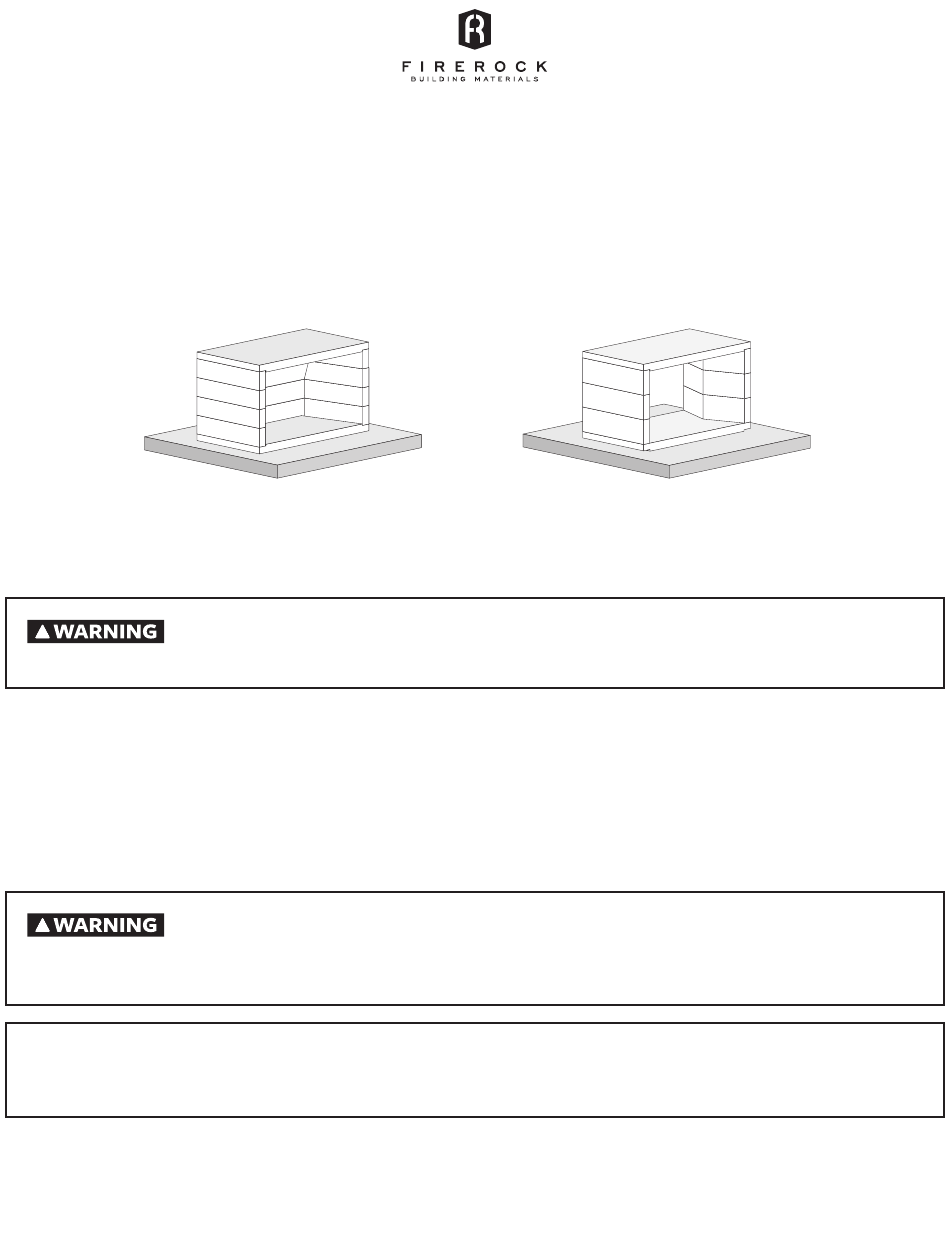

VENT FREE/SEE-THROUGH VENT FREE FIREPLACE
INSTALLATION, SPECIFICATION AND OPERATION MANUAL
IMPORTANT: Read the entire manual before beginning construction.
For use only with a listed gas-fired unvented decorative room heater not to exceed 40,000 BTU/H. Do not build a wood fire.
IMPORTANT: This manual contains product usage guidelines, in-field application rules, installation steps, and operating and
maintenance instructions for the FireRock Vent Free/See-Through Vent Free pre-engineered masonry fireplace kit. This manual
should become the property of and be reviewed by all current and future users of this product. It is the responsibility of the general
contractor and the installer to ensure that the instructions set forth in this manual are followed exactly. It is also the responsibility
of the general contractor to provide adequate clearance to combustibles (see page 10) from all fireplace surfaces as specified herein.
Before installing this product, please consult with local building and zoning authorities regarding the need for proper permitting.
If the information in this manual (including installation instructions) is not followed exactly, a fire or explosion may result,
causing property damage, personal injury, or loss of life.
MANUFACTURING:
3620 Avenue C
Birmingham, AL 35064
PHONE: (205) 639-5000
LISTED MASONRY FIREPLACE SYSTEM
MODEL FIREROCK VENT FREE/SEE-THROUGH VENT FREE
30", 36", 42", 48" MODULAR FIREPLACE
ANSI Z21.91 COMPLIANT
Contents of this manual may change without prior notification
Installer: Leave this manual with the appliance.
Consumer: Keep these instructions for future use.
TOLL-FREE: (888) 876-1025
ADMINISTRATIVE:
1500 1st Ave N #75
Birmingham, AL 35203
FAX: (888) 886-3473
