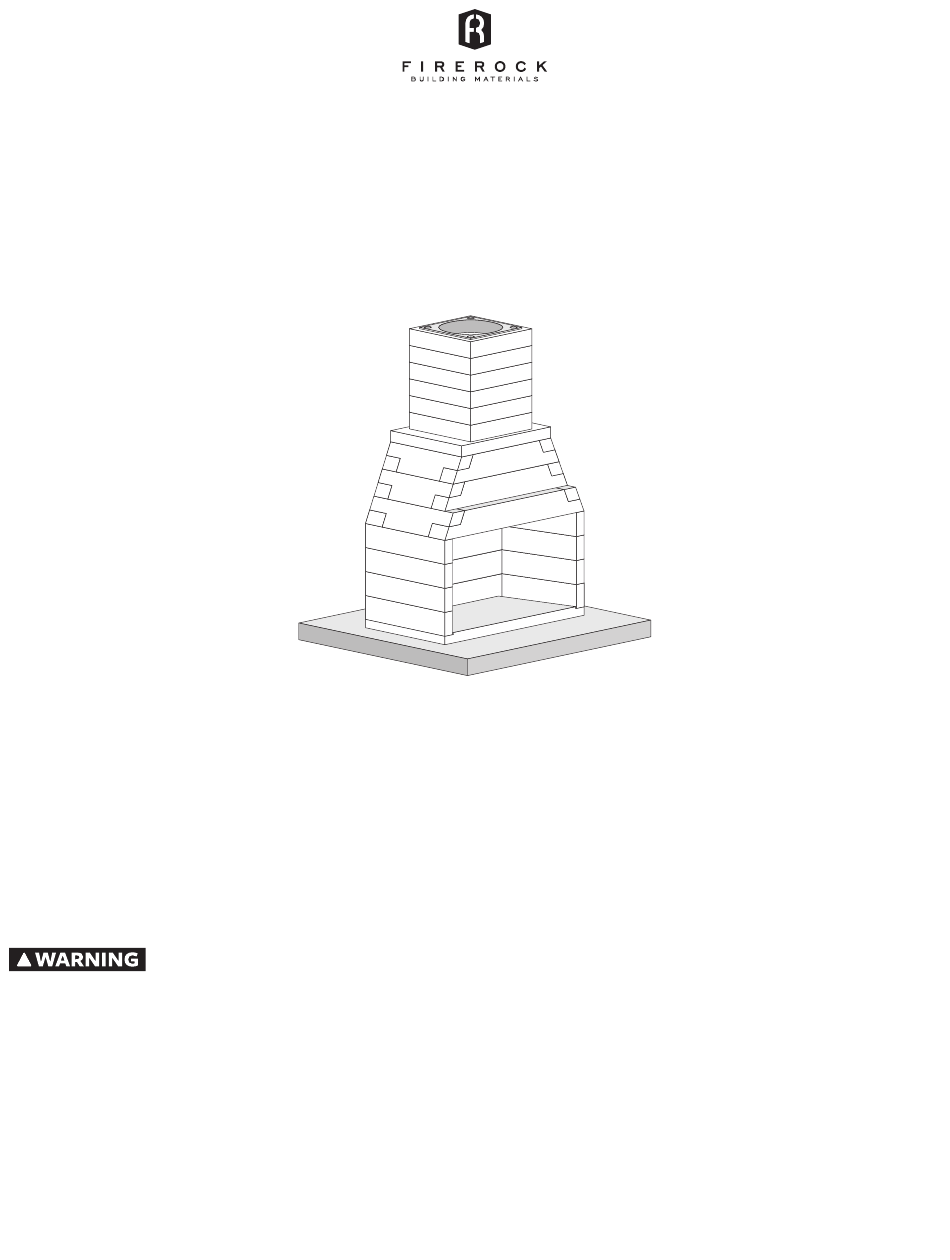

OUTDOOR FIREPLACE
INSTALLATION, SPECIFICATION AND OPERATION MANUAL
LISTED MASONRY FIREPLACE SYSTEM

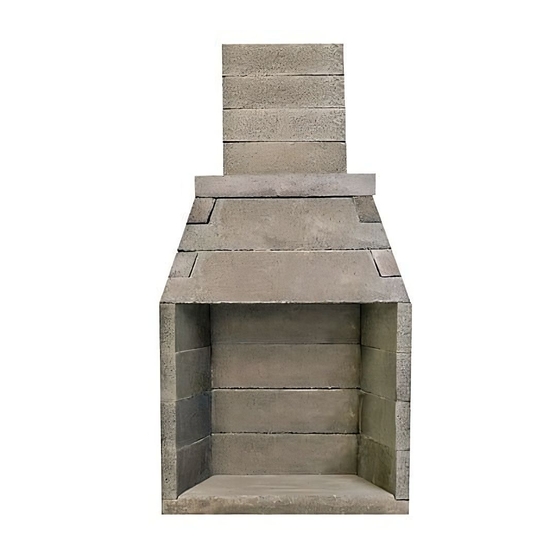

MODEL FIREROCK OUTDOOR SERIES - STRAIGHT FRONT AND ARCHED FRONT
30", 36", 42" MODULAR FIREPLACE
UL 127 COMPLIANT
IMPORTANT: Read the entire manual before beginning construction.
Contents of this manual may change without prior notification
IMPORTANT: This manual contains product usage guidelines, in-field application rules, installation steps and operating and
maintenance instructions for the FireRock Outdoor pre-engineered masonry fireplace kit. This manual should become the
property of and be reviewed by all current and future users of this product. It is the responsibility of the general contractor and
the installer to ensure that the instructions set forth in this manual are followed exactly. It is also the responsibility of the general
contractor to provide adequate clearance to combustibles (see page 12) from all fireplace surfaces as specified herein.
Before installing this product, please consult with local building and zoning authorities regarding the need for proper permitting.
If the information in this manual (including installation instructions) is not followed exactly, a fire or explosion may result, causing
property damage, personal injury, or loss of life.
Installer: Leave this manual with the appliance.
Consumer: Keep these instructions for future use.
MANUFACTURING:
ADMINISTRATIVE:
3620 Avenue C
1500 1st Ave N #75
Birmingham, AL 35064
Birmingham, AL 35203
PHONE: (205) 639-5000
TOLL-FREE: (888) 876-1025
FAX: (888) 886-3473
Advertisement
Table of Contents
Related Manuals for FireRock FIREROCK OUTDOOR SERIES
Summary of Contents for FireRock FIREROCK OUTDOOR SERIES
- Page 1 IMPORTANT: This manual contains product usage guidelines, in-field application rules, installation steps and operating and maintenance instructions for the FireRock Outdoor pre-engineered masonry fireplace kit. This manual should become the property of and be reviewed by all current and future users of this product. It is the responsibility of the general contractor and the installer to ensure that the instructions set forth in this manual are followed exactly.
- Page 2 THIS PAGE INTENTIONALLY LEFT BLANK...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Important Safety Information ..................................Materials and Equipment List ..................................Intended Use Statement ....................................Installation Considerations .................................... Warnock Hersey Listing Label ..................................Fireplace Dimensions ....................................... Clearance to Combustibles .................................... Fireplace Installation ......................................13-21 Foundation ......................................Mixing and Applying Mortar ................................. Firebox Assembly .................................... -
Page 4: Important Safety Information
For safety information regarding the operation of this fireplace, see pages 23-25. The FireRock Outdoor fireplace is a modular system designed to be assembled in field using FireRock Adhesive Mortar. Each component is designed for a specific part of the firebox, smoke chamber, and flue design, and therefore only one means of assembly is possible. -
Page 5: Materials And Equipment List
• 5 gallon bucket • Level • Plastic shims • FireRock Adhesive Mortar • Firebrick • Masonry chimney block NOTE: Some of the components of this fireplace are extremely heavy and should not be lifted by one person. Because of this, realize that building this fireplace is at minimum a two-man job. -
Page 6: Intended Use Statement
The fireplaces and chimney system are tested and listed by Intertek Testing Service to UL 127 and UL 103 for outdoor use. The FireRock fireplace is designed to burn wood, gas, or coal. Use solid wood, processed solid fuel fire logs, natural gas, propane, or coal fuel only. - Page 7 FireRock recommends that you finish your fireplace with a veneer such as stone, brick, or stucco. Failure to do so leaves your fireplace components exposed to the elements, and may cause cracking.
-
Page 8: Installation Considerations
To reduce the risk of fire or injury, do not install an unvented gas log set into this fireplace. A log lighter can be used with your FireRock fireplace as either a flush mount (installed before the firebrick) or top mount. - Page 9 HINTS If this is your first FireRock installation, it would only take a few extra minutes to “dry stack” (erect without mortar) your firebox to gain a better understanding of how the components go together. Then disassemble and erect using FireRock Adhesive Mortar.
-
Page 10: Warnock Hersey Listing Label
WARNOCK HERSEY LISTING LABEL LISTED OUTDOOR MASONRY FIREPLACE SYSTEM MODEL OUTDOOR SERIES FIREPLACE 30” 36” 42” CERTIFIED TO UL-127 OUTDOOR TO AVOID RISK OF DAMAGING FIREPLACE MATERIALS AND INCREASING THE RISK OF SPREADING A FIRE, DO NOT USE THE FIREPLACE TO COOK OR WARM FOODS WHI- HEARTH EXTENSION BEYOND FRONT: 20”... -
Page 11: Fireplace Dimensions
FIREPLACE DIMENSIONS DIMENSION 30” 36” 42” OVERALL WIDTH 38” 44” 50” OVERALL DEPTH 28.5” 28.5” 28.5” FIREBOX HEIGHT 28.875” 37.5” 37.5” SMOKE CHAMBER HEIGHT 22.375” 31.5” 31.5” MINIMUM CHIMNEY HEIGHT 24” 24” 36” MAXIMUM CHIMNEY HEIGHT 12’ 12’ 12’ OPENING WIDTH* 32.5”... -
Page 12: Clearance To Combustibles
CLEARANCE TO COMBUSTIBLES Opening to Combustible Side Wall 28” MANTLE Opening to Combustible Mantle with 12” 12” >10” Depth Noncombustible Hearth Extension 20” front, 8” each side 28” 8” HEARTH FIGURE 2.1 Failure to maintain stated minimum clearances may result in a fire or explosion, causing property damage, personal injury, or loss of life. -
Page 13: Fireplace Installation
It is the responsibility of the general contractor to ensure adequate foundations. NOTE: Use of the FireRock base plate is optional for either of the above foundation types (concrete slab or concrete pad) FIGURE 3.2... -
Page 14: Mixing And Applying Mortar
FIREPLACE INSTALLATION STEP 2: MIXING AND APPLYING MORTAR FIREROCK ADHESIVE MORTAR FireRock Adhesive Mortar must be used when building the FireRock fireplace for your FireRock warranty to be valid. Use of other mortar will void your FireRock warranty This mortar is available from your FireRock dealer or distributor. -
Page 15: Firebox Assembly
FIREPLACE INSTALLATION STEP 3: FIREBOX ASSEMBLY BASE PLATE The base plate must be placed on a level noncombustible surface. It is very important that your base plate be square to the intended viewing area, properly centered, and level. FIGURE 5.1 Mark out the position of the base plate on the supporting BASE PLATE ON CONCRETE SLAB floor system. - Page 16 FIGURE 5.6 3 COURSES It is important that each course of the firebox is level and flush with adjoining components. FireRock mortar is not intended to create a mortar joint of any thickness for leveling purposes. Leveling and alignment adjustments should be made by the use of small shims.
-
Page 17: Arched Lintel Installation
FIREPLACE INSTALLATION STEP 3B: FIREBOX ASSEMBLY - ARCHED LINTEL INSTALLATION ARCHED FRONT The Arched Front Outdoor unit includes two (2) side block components that are approx. 4” shorter than the other side blocks included in the kit (Figure 5.8). 4” Use these two shorter pieces on the top level of the firebox when constructing –... -
Page 18: Throat And Damper Assembly
FIREPLACE INSTALLATION STEP 4: THROAT AND DAMPER ASSEMBLY THROAT (FIGURE 6.1) Begin building the throat by placing the square throat front and square throat back. These pieces are identical and can be used interchangeably. Remember to completely cover each component with mortar 1/2” - 1” thick where it will lie or butt up against another component. -
Page 19: Smoke Chamber Assembly
FIREPLACE INSTALLATION STEP 5: SMOKE CHAMBER ASSEMBLY SMOKE CHAMBER The smoke chamber components can only be positioned one way. The fronts and backs are identical above the damper. Remember to completely cover each component with mortar 1/2” - 1” thick where each edge of each component will lie or butt up against another component. -
Page 20: Chimney Assembly
FIREPLACE INSTALLATION STEP 6: CHIMNEY ASSEMBLY SOLID BLOCK CHIMNEY FireRock Solid Block Chimney (Figure 8.1) is installed next. For 30” and 36” fireplaces, 2’ of chimney block (4 pieces) have been provided. For the 42” unit, 3’ (6 pieces) have been included in your kit. -
Page 21: Firebrick Installation
(Figure 9.3). FireRock makes no claims as to the performance of firebrick or firebrick mortars except those manufactured by FireRock. It is typical for heat stress cracks to appear in the firebricks after FULLY BRICKED FIREBOX use. -
Page 22: Metal Chimney Installation
METAL CHIMNEY INSTALLATION Any metal chimney that carries a UL 103 compliance designation may be used with your FireRock fireplace and chimney system. A conversion adapter must be available from the metal chimney manufacturer and all necessary components must be utilized as required by the manufacturer. -
Page 23: Operating Instructions
OPERATING INSTRUCTIONS This section of the manual is to help you get maximum efficiency and maximum smoke (particulate) reduction from your FireRock fireplace. If you experience any difficulty or have any questions concerning your fireplace, contact your dealer/distributor or FireRock’s Technical Support Desk (888.876.1025). - Page 24 USING YOUR FIREPLACE FireRock recommends a log grate be used in your fireplace for maximum performance. The use of andirons is acceptable. Use solid wood, processed solid fuel fire logs, natural gas, propane, or coal fuel only. The manufacturer’s recommendation for peak performance is to burn seasoned hardwood (wood that has been cut and dry for 6 –...
- Page 25 Overfiring, abusive burning, or mistreatment of the fireplace unit can cause permanent damage to the unit and will invalidate your FireRock warranty. Building fires using materials other than those detailed on pages 24-25 or loading the fireplace beyond its maximum load constitutes overfiring.
-
Page 26: Parts Dimensions
FIREPLACE PARTS BASE PLATE ISOMETRIC SIDE ELEVATION PLAN FIREPLACE SIZE DIM A DIM B DIM C FRONT ELEVATION 30” 38” 32” 21 1/2” 36” 44” 38” 27 1/2” 42” 50” 44” 33 1/2” FIREBOX SIDE PLAN SIDE ELEVATION ISOMETRIC FRONT ELEVATION... - Page 27 FIREPLACE PARTS (CONTINUED) FIREBOX BACK WALL PLAN SIDE ELEVATION FRONT ELEVATION ISOMETRIC FIREPLACE SIZE DIM A 30” 29 7/8” 36” 35 7/8” 42” 41 7/8” ARCHED LINTEL (ARCHED FRONT ONLY) PLAN SIDE ELEVATION FRONT ELEVATION ISOMETRIC FIREPLACE SIZE DIM A DIM B 30”...
- Page 28 FIREPLACE PARTS (CONTINUED) SQUARE THROAT FRONT/BACK PLAN SIDE ELEVATION FRONT ELEVATION ISOMETRIC FIREPLACE SIZE DIM A 30” 38” 36” 44” 42” 50” THROAT SIDE PLAN ISOMETRIC SIDE ELEVATION FRONT ELEVATION...
- Page 29 FIREPLACE PARTS (CONTINUED) SMOKE CHAMBER FRONT/BACK PLAN SIDE ELEVATION FRONT ELEVATION ISOMETRIC FIREPLACE SIZE ROWS OF BLOCKS NEEDED DIM A 30” 32” 36” 38”, 32” 42” 44”, 38” UNIVERSAL SMOKE CHAMBER SIDE PLAN SIDE ELEVATION FRONT ELEVATION ISOMETRIC...
- Page 30 FIREPLACE PARTS (CONTINUED) CHIMNEY BASE SIDE ELEVATION PLAN ISOMETRIC FIREPLACE SIZE DIM A 30” 26” 36” 26” 42” 32” CHIMNEY BLOCK SIDE ELEVATION PLAN ISOMETRIC...
-
Page 31: Terms And Conditions
Buyer, FireRock, at its sole discretion and Buyer’s expense, may agree as a service to Buyer to process Buyer’s claim against the carrier for any loss or damage in transit, provided that such claim is received by FireRock within two (2) days of delivery of the Goods to Buyer. - Page 32 5. SECURITY INTEREST: As collateral security for the payment of the purchase price of the Goods, Buyer hereby grants to FireRock a lien on and security interest in and to all of the right, title and interest, to and under the Goods, wherever located, and whether now existing or hereafter arising or acquired from time to time, and in all accessions thereto and replacements or modifications thereof, as well as all proceeds (including insurance proceeds of the foregoing).
- Page 33 HEIRS AND ASSIGNS. 14. TERMINATION: In addition to any remedies that may be provided under this Agreement, FireRock may terminate this Agreement with immediate effect upon written notice to Buyer, if Buyer: (a) fails to pay any amount when due under this Agreement;...
- Page 34 Commercial Arbitration Rules of the AAA. The AAA shall designate a panel of ten (10) potential arbitrators knowledgeable in the subject matter of the Dispute. Each of FireRock and Buyer shall designate, within thirty (30) days of the receipt of the list of potential arbitrators, one of the potential arbitrators to serve, and the two arbitrators so designated shall select a third arbitrator from the eight remaining candidates.
- Page 35 MASONRY FIREPLACES – EXPRESS LIMITED WARRANTY FireRock warrants to the original Buyer (including, if the original Buyer is a contractor, the original purchaser of a new, or the current owner of an existing, home or other building into which the Goods are installed) that the fireplace purchased from FireRock (the “Fireplace”) will be free from material defects in materials, under normal use, for twenty (20 years).
- Page 36 Version 2.0 | 10/2018...
