- Page 1 March Networks 8716 P Hybrid NVR HNVR MS Series Installation Guide...
- Page 2 Copyright © 2021. March Networks Corporation. All rights reserved. Information in this document is subject to change without notice. MARCH NETWORKS, March Networks Command, March Networks Searchlight, March Networks RideSafe, and the MARCH NETWORKS logo are trademarks of March Networks Corporation. All other trademarks are the property of their respective owners.
-
Page 3: Table Of Contents
Contents Chapter 1: Mandatory Regulations ..........5 Regulatory Compliance Statements..................5 Canada - Industry Canada ....................5 United States - Federal Communications Commission..........5 Europe ..........................5 Environmental Directive Compliance................... 6 Battery Notices ........................6 NiCd Battery Pack Notice....................6 Lithium Battery Notice ....................6 Avis pour les batteries...................... - Page 4 Contents Front Panel LEDs ........................15 Front USB Ports ........................17 RS-232 Interface ........................18 RS-232 Interface ........................18 Alarm and Switch Terminals ....................19 Connecting an Alarm or Switch Device................19 Audio Terminals ........................20 Audio Input ........................20 Audio Output ........................20 Ethernet Ports, USB Ports, Video and HD Monitor Output ..........21 Two Ethernet Ports and LEDs ...................21 Eight PoE Ethernet Ports ....................21 Two Rear USB Ports ......................22...
-
Page 5: Chapter 1: Mandatory Regulations
United States - Federal Communications Commission Supplier’s Declaration of Conformity Product Name: Hybrid NVR Product Model: HNVR MS Company Name: March Networks Inc. The Pinnacle Building 3455 Peachtree Road North East, Suite 500 Atlanta, Georgia 30326 1 800 563 5564 This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. -
Page 6: Environmental Directive Compliance
Battery Notices CAUTION: There is risk of explosion if any battery is replaced with another battery of the incorrect type. Ensure that you only use the NiCd battery pack and lithium battery provided by March Networks. NiCd Battery Pack Notice The unit contains an internal NiCd battery pack that is used during power shortages. -
Page 7: Avis Sur La Batterie Lithium
Mandatory Regulations • Ne pas jeter le bloc de batterie dans le feu. • Ne pas court-circuiter les terminaux du bloc de batterie NiCd. Disposer du bloc de batterie NiCd en accord avec les lois locales, provinciales ou fédérales. Renseignez-vous à votre bureau de recyclage local pour les règles de recyclage. Avis sur la batterie Lithium L’unité... -
Page 8: Ground Connection
Model Definition Information The HNVR MS Series are regulatory models for the 8000 Series Hybrid NVRs. The model information is outlined in the following table. Certification Regulatory Model... -
Page 9: Chapter 2: Feature Overview
March Networks Command or the Visual Intelligence video management platforms. Note: You can manage one of these NVRs using either of the management platforms offered by March Networks. You should familiarize yourself with the differences between the platforms prior to deploying the recorders. For more information, see the documentation available from the March Networks Partner Portal. -
Page 10: Key Features

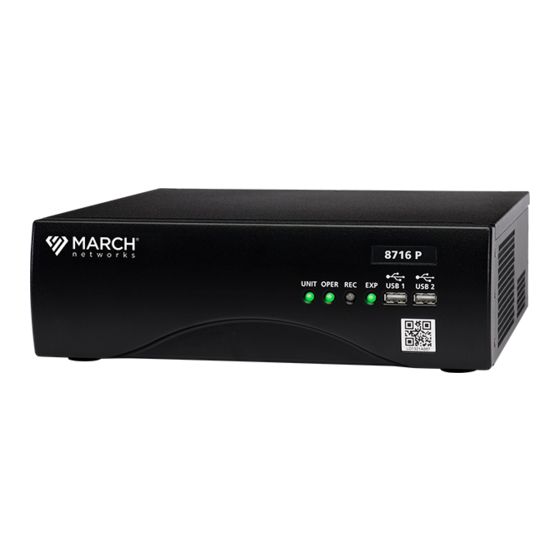

Feature Overview Key Features The following table shows details of key features of the 8716P Hybrid NVR. Feature Details Camera Capacity 16 channel total = 8 hybrid analog / IP + 8 PoE IP Concurrent Frame Rates 30 FPS per channel at 4CIF IP Camera Bandwidth 16 channels at 3 Mbps = 48 Mbps total Internal Storage... -
Page 11: Packaging/Shipment Contents
• Data and power cables for the hard drives • Software DVD — The software can also be downloaded from the March Networks Partner Portal. • Technical publications — Included on the software DVD, or you can also download hardware and software technical publications from the March Networks Partner Portal. -
Page 12: Specifications
Feature Overview Specifications This section contains the dimensions, weight, temperature ranges, and power ratings of the unit. Dimensions of the 8716P NVR 11.3 inches / 28.7 centimeters 12.1 inches / 30.7 centimeters 3.6 inches / 9.1 centimeters Weight • Entire unit without hard drives: 7.8 pounds / 3.6 kilograms •... -
Page 13: Video Inputs
Video Termination Video termination for the 8716P NVR is controlled through the Visual Intelligence software. You can use the March Networks Administrator Console application to view and modify the analog video termination. For more information, see the Administrator Console User Manual or online Help. -
Page 14: Video Capture Rates
Feature Overview Video Capture Rates This section details the video inputs and associated video capture rates. Analog Camera Video Inputs The 8716P NVR supports the following resolutions for analog cameras: • 4CIF — 704 x 480 (NTSC) or 704 x 576 (PAL) •... -
Page 15: Front Panel Leds
Use the Command Client or Administrator Console software application to review the health alert and determine a possible resolution. For more information, see the Command Enterprise User Guide or the Administrator Console User Manual, available from the March Networks Partner Portal website. 8716P Hybrid NVR Installation Guide... - Page 16 LED) can be retrieved using the Command Client or the Administrator Console (depending on which software platform you are using, Command or Visual Intelligence). For more information, see the Command Enterprise User Guide or the Administrator Console User Manual, available from the March Networks Partner Portal. 8716P Hybrid NVR Installation Guide...
-
Page 17: Front Usb Ports
Feature Overview Front USB Ports There are two USB ports on the front of the 8716P NVR. USB Ports 1 and 2 There are two USB ports on the front of the NVR for connection of external peripherals. Each port provides up to 0.5 A to power peripherals with a USB cable. The ports support USB version 2.0. -
Page 18: Rs-232 Interface
Feature Overview RS-232 Interface There is an RS-232 interface on the back of each unit. RS-232 interface Pinout Relay RS232 Audio Out Alarms Audio In RS-232 Interface The RS-232 interface allows you to provide text capture, with the following pins: Definition Input Ground... -
Page 19: Alarm And Switch Terminals
Feature Overview Alarm and Switch Terminals There are alarm and switch terminals on the back of the unit. Alarm and switch devices can connect to these. Alarm and switch terminals Pinout Relay RS232 Audio Out Alarms Audio In Connecting an Alarm or Switch Device You can connect alarm and switch devices to the terminals at the back of the unit. -
Page 20: Audio Terminals
Feature Overview Audio Terminals Audio in and out terminals are available on the back of the unit. Audio terminals Pinout Relay RS232 Audio Out Alarms Audio In Audio Input Connect an audio cable to the Audio In terminal block. Use the audio cable to connect an audio input device, such as a microphone, to the unit. -
Page 21: Ethernet Ports, Usb Ports, Video And Hd Monitor Output
Feature Overview Ethernet Ports, USB Ports, Video and HD Monitor Output The unit has 2 Ethernet ports, 2 USB ports, a video output, and an HD monitor output available on the back. 2 Ethernet Ports and LEDs Video Output USB Ports 3 and 4 HD Monitor Output Two Ethernet Ports and LEDs There are two Gigabit Ethernet ports on RJ-45 connectors with LEDs to... -
Page 22: Two Rear Usb Ports
64 W at any time. If you require a PoE camera configuration that does not meet these camera power recommendations, please contact March Networks customer support. Current Limits for the 8 PoE Ethernet Ports Each port has a current limit of 350 mA. This current limit allows the use of Class 0, 1, 2, and 3 PoE powered devices. -
Page 23: Power Connection
Video Output. For more information on the Provisioning Interface, see the Provisioning Interface Technical Instructions, available for download from the March Networks Partner Portal. For more information on Local Control, see the 8000 Series NVR Local Control Addendum, or the Local Control for the 8000 Series NVR Quick Start Guide, available for download from the March Networks Partner Portal. -
Page 24: Ground Connection
Feature Overview Ground Connection There is a grounding stud on the back of the unit, which acts as a protective earth terminal (where required). You can also use it as an ESD ground terminal when servicing the unit. Grounding stud Grounding Method The preferred grounding method, described here, is to connect a ground wire between the NVR unit and an earth ground source. -
Page 25: Hard Drives
Feature Overview Hard Drives You can install up to two hard drives inside the unit. Hard Drives (stack of 2) For the hard drives: position 1 is at the top, position 2 is at the bottom. Hard Drive Details The 8716P NVR uses Serial ATA (SATA) hard drive technology. It uses hard drive SMART monitoring for hard drive health status and early detection of possible faults. -
Page 26: Nicd Battery Pack And Lithium Battery
Used by the unit to allow graceful shut down during power outages. The unit will perform a graceful shut down if power is removed for more than 15 seconds. Custom NiCd battery pack for each unit supplied by March Networks. Lithium Battery Provides backup power for the unit’s clock. -
Page 27: Chapter 3: Unit Setup
Then, specify basic device configurations using the March Networks Administrator Console. The Administrator Console application is included on the provided software DVD. For more information, see the Administrator Console User Manual, available for download from the March Networks Partner Portal. -
Page 28: Wall-Mounting The Recorder
Unit Setup Wall-Mounting the Recorder Wall-mount the recorder unit using the brackets provided in the wall-mounting kit. The wall- mounting kit is not included with the recorder: it must be purchased separately. WARNING: Ensure that the location where you wall-mount the unit can fully support the unit’s weight. For information about the weight, see “Specifications”... - Page 29 Unit Setup To wall-mount the recorder Locate the left and right wall stud to which the recorder is to be mounted. If the wall studs are behind drywall, use a stud finder to locate the wall studs, and then mark the wall stud location.
-
Page 30: Desk-Mounting The Recorder
Unit Setup Mark the locations of the two left mounting holes. Remove the recorder from the mounting screws and put it aside. Install the left mounting screws at the marked locations. • If the left mounting location is in a wall stud, thread the screw directly into the wall stud. •... -
Page 31: Installing Hard Drives
Unit Setup Installing Hard Drives This section describes how to install a Serial ATA (SATA) hard drive, or install additional drives (up to two). WARNING: The procedures contained in this section outline how to install components located inside the unit, requiring the removal of the cover. These procedures are to be performed by qualified service personnel only. - Page 32 Unit Setup Remove the cover of the recorder. There are two hard drive positions in one hard drive tray. Position 1 is at the top of the hard drive tray, position 2 is at the bottom of the tray (underneath the top hard drive).
- Page 33 Unit Setup Insert the hard drive into the bracket using the provided screws (four for each hard drive). For the hard drive at the bottom of the bracket (position 2) the side with the exposed electronics must be facing up (the label facing down). For the hard drive at the top of the bracket (position 1) the side with the exposed electronics must be facing down (the label facing up).
- Page 34 Unit Setup Ensure that both cables are connected to the main PCBA, as shown in the photo below. Power cable Data cable 1 Data cable 2 in PCBA in PCBA in PCBA Power cable Data cable for hard drive in position 1 Data cable for hard drive in position 2 Power cable...
- Page 35 Glossary Administrator Console A configuration and maintenance tool that lets security and IT staff customize and maintain recorders in a central or local manner. Frames per second. A measurement of the streaming rate, at which the video is recorded. Light emitting diode. Indicates the recorder’s status. NiCd battery Nickel-Cadmium battery.
- Page 36 Companies worldwide use our software solutions to improve efficiency and compliance, reduce losses and risk, enhance customer service and compete more successfully. With deep roots in video security and networking, March Networks is also recognized as the leader in scalable, enterprise-class video management and hosted services.
