Inserting a FortiGate-5001FA2 board into a chassis
16

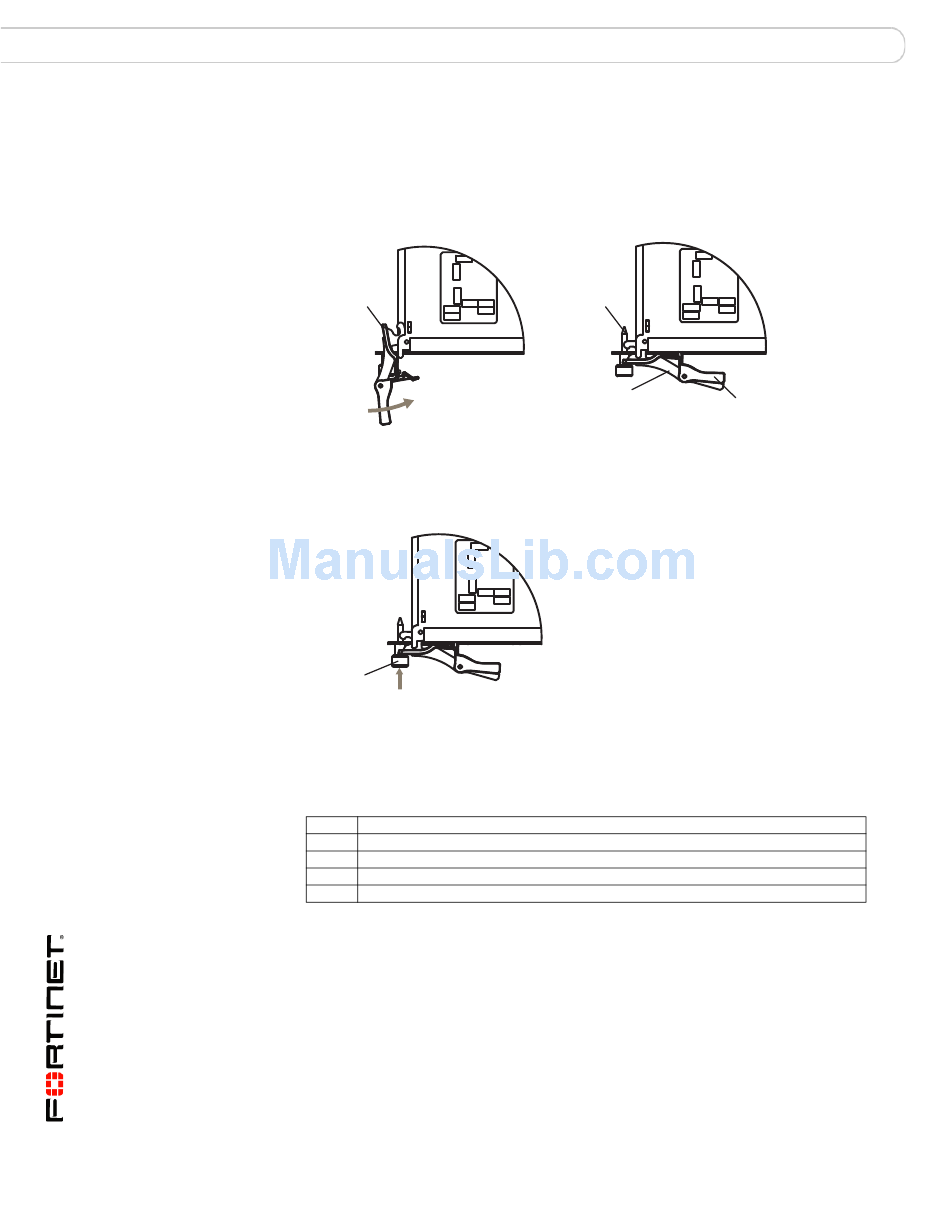

7 Turn both handles to their fully-closed positions.
The handles should hook into the sides of the chassis slot. Closing the handles
draws the FortiGate-5001FA2 board into place in the chassis slot and into contact
with the chassis backplane. The FortiGate-5001FA2 front panel should be in
contact with the chassis front panel. When the handles are fully-closed they lock
into place.
Alignment Pin
Close
If the chassis is powered on, as the board slides into place the IPM LED starts
flashing blue.
8 Fully tighten the left and right retention screws to lock the FortiGate-5001FA2
board into position in the chassis slot.
.
Retention
Screw
Tighten
If the chassis is powered on the PWR LED turns green and the STA LED turns
red. The ACC LED also starts flashing red. After a few minutes, if the board is
operating correctly the front panel LEDs are lit as described in
Table 4: FortiGate-5001FA2 normal operating LEDs
LED State
PWR Green
ACC Off (Or flashing red when the system accesses the flash disk.)
STA Green
IPM Off
Alignment Pin
Handle
Fully Closed
and Locked
