Hardware installation
1
2
3
4
5
6
FortiGate-5001FA2 Security System Guide
01-30000-0379-20080606
Caution: FortiGate-5001FA2 boards must be protected from static discharge and physical
shock. Only handle or work with FortiGate-5001FA2 boards at a static-free workstation.
Always wear a grounded electrostatic discharge (ESD) preventive wrist strap when
handling FortiGate-5001FA2 boards.
Attach the ESD wrist strap to your wrist and to an ESD socket or to a bare metal
surface on the chassis or frame.

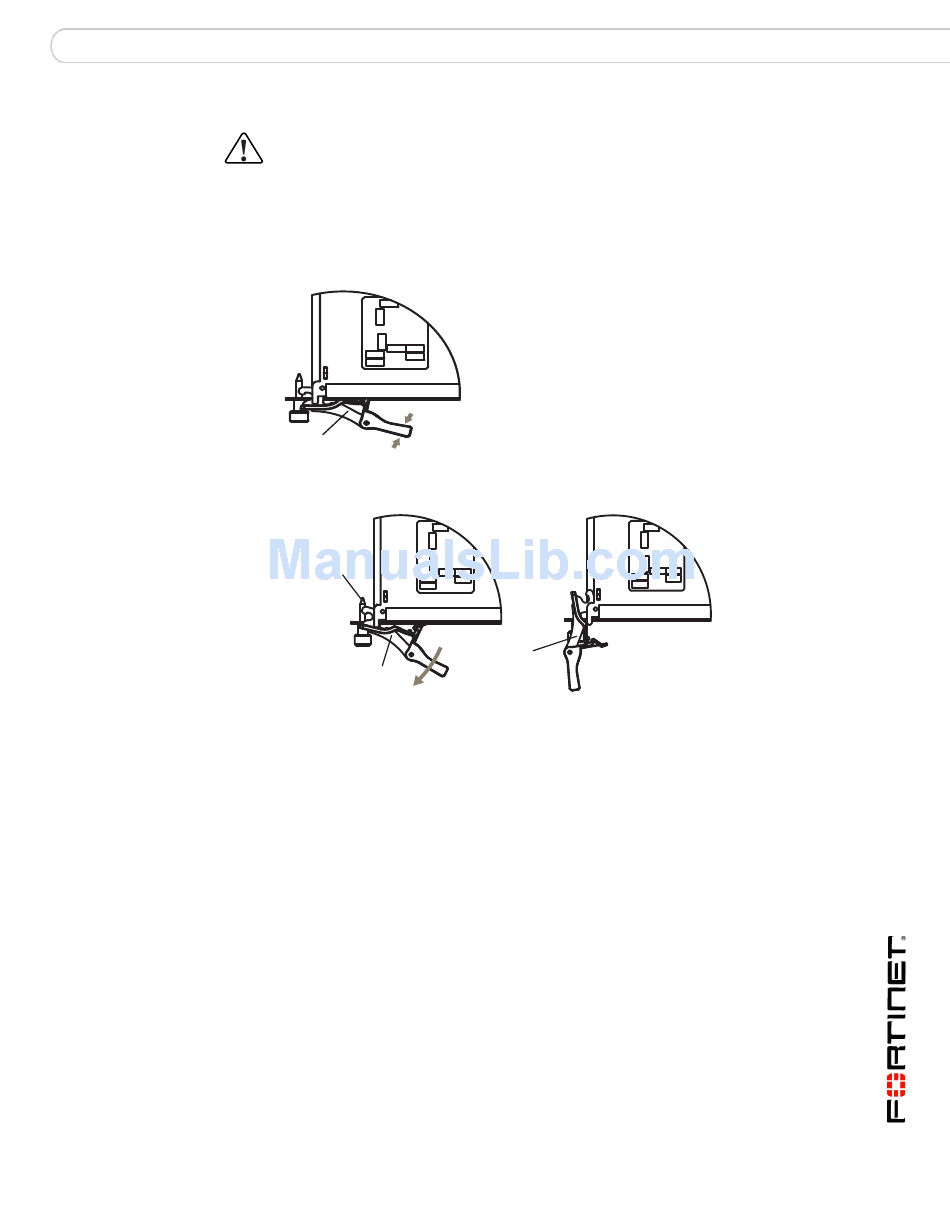

Unlock the left and right handles by squeezing the handle locks.
Handle
Unlock
Open the left and right handles to their fully open positions.
Alignment Pin
Handle
Open
Insert the FortiGate-5001FA2 board into the empty slot in the chassis.
Carefully guide the board into the chassis using the rails in the slot.
Insert the board by applying moderate force to the front faceplate (not the
handles) to slide the board into the slot. The board should glide smoothly into the
chassis. If you encounter any resistance while sliding the board in, the board
could be aligned incorrectly. Pull the board back out and try inserting it again.
Slide the board in until the alignment pins are inserted half way into their sockets
in the chassis.
If the chassis is powered on the IPM LED lights up and turns blue.
Inserting a FortiGate-5001FA2 board into a chassis
Handle
Fully Open
15
