Installing SFP transceivers

Hardware installation

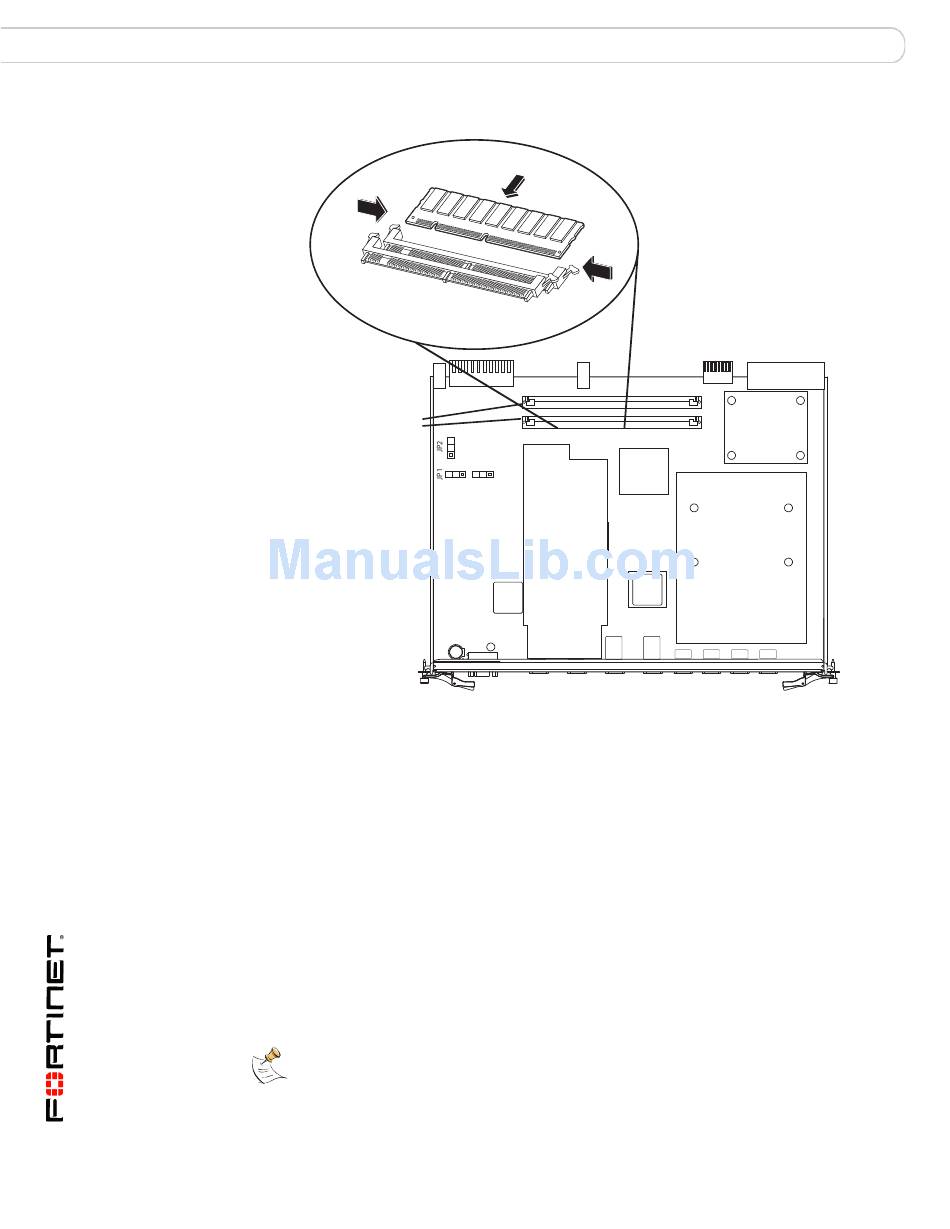

Figure 2: Location of FortiGate-5001FA2 RAM DIMM slots
RAM DIMM
slots
JP3
Front Faceplate
3 Insert each RAM DIMM perpendicular to the RAM DIMM slots. Push the DIMM
firmly into place using the minimum amount of force required. When the DIMM is
properly seated, the socket guide posts click into place.
Do not use excessive force when installing a DIMM.
The RAM slots allow only one alignment of each RAM DIM. If you cannot lock the
locking levers the DIM is not aligned correctly or is in upside-down.
Installing SFP transceivers
The FortiGate-5001FA2 board ships with four SFP transceivers that you must
install for normal operation of the FortiGate-5001FA2 board. The SFP transceivers
are inserted into cage sockets numbered 1 to 4 on the FortiGate-5001FA2 front
panel. You can install the SFP transceivers before or after inserting the
FortiGate-5001FA2 board into a FortiGate chassis.
Note: Cage slots 1 and 2 are rotated 180 degrees. Install the transceivers in slots 1 and 2
inverted compared to the orientation of the transceivers in slots 3 and 4.
