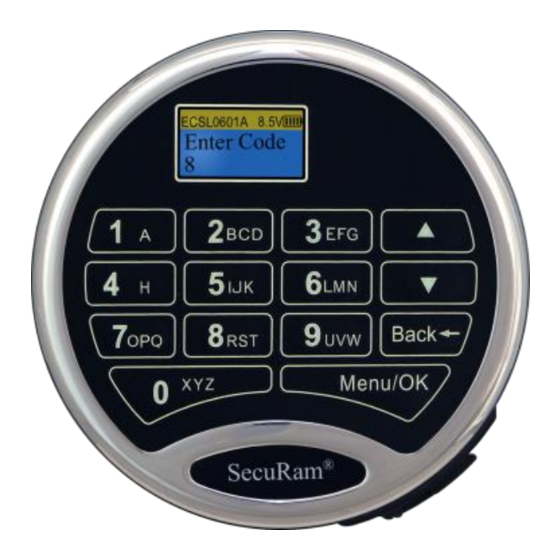

ProLogic L01-C
ProLogic L01-C Operation Instructions
Document No: EC-0601A-CL01-170330
Version No: V1.02
Operation Instructions
1.0 System Installation
1.1 System Components
1.2 Pairing the EntryPad with the Lock(s)
1.3 Lock and EntryPad Installation
1.4 Installing Battery
1.5 Test Lock Operation
2.0 Lock Operation
2.1 Opening the Lock
2.2 Wrong Code Entry – Lock Out
2.3 Low Battery
3.0 Code Management
3.2 Enrolling New users
3.3 Change Code
3.4 Delete One User
3.5 Delete All Users
3.6 Disable/Enable User
3.7 Obfuscate Code Entry
4.0 System Identification
4.1 System Info
5.0 Manager Mode
5.1 Enable Manager Mode
5.2 Disable Manager Mode
6.0 Data Management
6.1 Encryption Key Set
7.0 Recovering the System – Reset to Default
7.1 Recovery Code Set
7.2 Recover System
7.3 Mechanical Reset
8.0 System Testing
8.1 Cycle Testing
9.0 Menus
9.1 The ProLogic L01-C Menus
1
Advertisement
Related Manuals for Securam ProLogic L01-C
Summary of Contents for Securam ProLogic L01-C
- Page 1 5.2 Disable Manager Mode 6.0 Data Management 6.1 Encryption Key Set 7.0 Recovering the System – Reset to Default 7.1 Recovery Code Set 7.2 Recover System 7.3 Mechanical Reset 8.0 System Testing 8.1 Cycle Testing 9.0 Menus 9.1 The ProLogic L01-C Menus...
- Page 2 SecuRam safe lock systems can operate in two different modes depending upon the type of EntryPad being used with the lock body. The ProLogic L01-C is a digital lock system and therefore the lock must also be programmed in digital mode. Converting the lock body to digital mode can be completed with the following the steps: Step 1: Ensure the battery is connected to the Entry Pad.
- Page 3 “Fail to Link with Lock”, repeat the reset procedure. Be sure to hold down the reset button through steps 5-7. If you have difficulty resetting the lock, please call SecuRam Tech Support at (805) 988-8088 or email info@securamsys.com.
- Page 4 Put the battery compartment back into the EntryPad. Push the latch of the battery compartment up until it snaps closed. See Fig. 3 1.5 Testing the Lock Operation The ProLogic L01-C comes with two factory default codes: • Super Code (ID00) is 111111 •...
- Page 5 ProLogic L01-C Operation Instructions 2.0 Lock Operation Upon initial power up, the LCD screen starts a communications test as shown below: Including Model Number Software Version Number No. of Users/ No. Users Programmed Lock ID#/Host ID# ...
- Page 6 Use one 9V alkaline battery. Manufacturer recommends to use Duracell or Energizer® Alkaline batteries. 3.0 Code Management The ProLogic L01-C comes with two default codes: • Super Code (ID00) is 111111 • Manager Code (ID01) is 123456...
- Page 7 It is strongly recommended that both these default codes are changed before the lock system is put into service. The ProLogic L01-C has the capability to add one additional user code, in addition to the default codes. ID00 is the Super Code – opens the lock, preforms programming and has the ability to turn on Manager Mode.
- Page 8 ProLogic L01-C Operation Instructions The new code is now enrolled and available to be used to open the lock 3.2 Change Code This programming sequence is used to change any code. Step1: Press the Menu/OK button Step 2: Using the and , scroll to the System Menu and Press Menu/OK Step 3: The display will prompt you to enter a valid code.
- Page 9 ProLogic L01-C Operation Instructions Step 3: The display will prompt you to enter a valid code. Enter either the Super Code (ID00) or the Manager Code (ID01). The “Select Menu” message will be displayed as follows: Step 4: Scroll UP to the menu selection “Delete One User” and Press OK Step 5: Press OK Step 6: The system will ask to confirm the deletion.
- Page 10 ProLogic L01-C Operation Instructions The system will verify that all User Codes have been deleted. The only remaining codes will be as follows: • Manager Code (ID01) is 123456 • Super Code (ID00) will remain unchanged. 3.5 Disable/Enable User Codes This feature would be used in order to disable a user code as opposed to deleting it.
- Page 11 This menu feature would be used to determine the type of safe lock system being used. Many of the SecuRam ProLogic EntryPads look the same, but the features sets and capabilities vary greatly depending upon the software being utilized. To determine the type of ProLogic Safe Lock system, follow this process: 4.1 System Info:...
- Page 12 ProLogic L01-C Operation Instructions Step 2: Using the and scroll to the “System Info” and Press OK. The screen will display Information about the system, including the model number of the ProLogic EntryPad. This menu selection can be accessed within the root menu, as well as within the Administrative menu.
- Page 13 ProLogic L01-C Operation Instructions Step 4: Scroll to the menu selection “Enable Manager” and Press OK. Manager Mode is now enabled. In this Mode: ID01 Code cannot open the safe and is used to toggle on/off the User code. ID01 still has all its programming functions.
- Page 14 6.1 Encryption Key Set The ProLogic L01-C sends and receives data to the lock in an encrypted form. This is a security measure to ensure that all data is protected. The Encryption Key is set during the manufacturing process with a default encryption key value.
- Page 15 Step 6: The LCD screen will display a key Code. Record this number and call an authorized SecuRam Recovery Center or SecuRam Tech Support at 1-805-988-8088 for an Authorization Code. (This code remains valid for a period of 20 minutes only).
- Page 16 ProLogic L01-C Operation Instructions Step 8: Next you will be prompted to enter your new 6 digit Recovery Code. Step 9: Repeat the 6 digit Recovery Code. The new Recovery Code has now been set. DO NOT lose this code. Without this code your system cannot be recovered.
- Page 17 The Manager Code will now be reset to 123456. 7.3 Mechanical Reset SecuRam Safe Locks can operate in either Analog mode or Digital mode. When they are paired with the SafeLogic Series (EntryPads with no LCD screen or fingerprint reader) the safe lock operates in analog mode.
- Page 18 Note: The pairing of the StrikeBolt and the ProLogic L01-C EntryPad is not UL listed. If the lock body that you are pairing the ProLogic L01-C with has been paired previously with an analog system, for example the SafeLogic Basic (or any other SafeLogic Series EntryPad)or was set at the factory...
- Page 19 ProLogic L01-C Operation Instructions Step1: Press the Menu/OK button. Step 2: Using the and , scroll to the System Menu and Press OK. Step 3: The display will prompt you to enter a valid code. Enter either the Super Code (ID00) or the Manager Code (ID01).
- Page 20 Operation Instructions 9.0 Menus There are two menus on the ProLogic L01-C, the root menu and a sub-menu. The sub-menu is accessible by entering a valid code. The menu selections in the sub-menu change depending upon the level of the code entered. Super Code (ID00), and Manager Codes (ID01 and 02) have access to the all programming menus.
