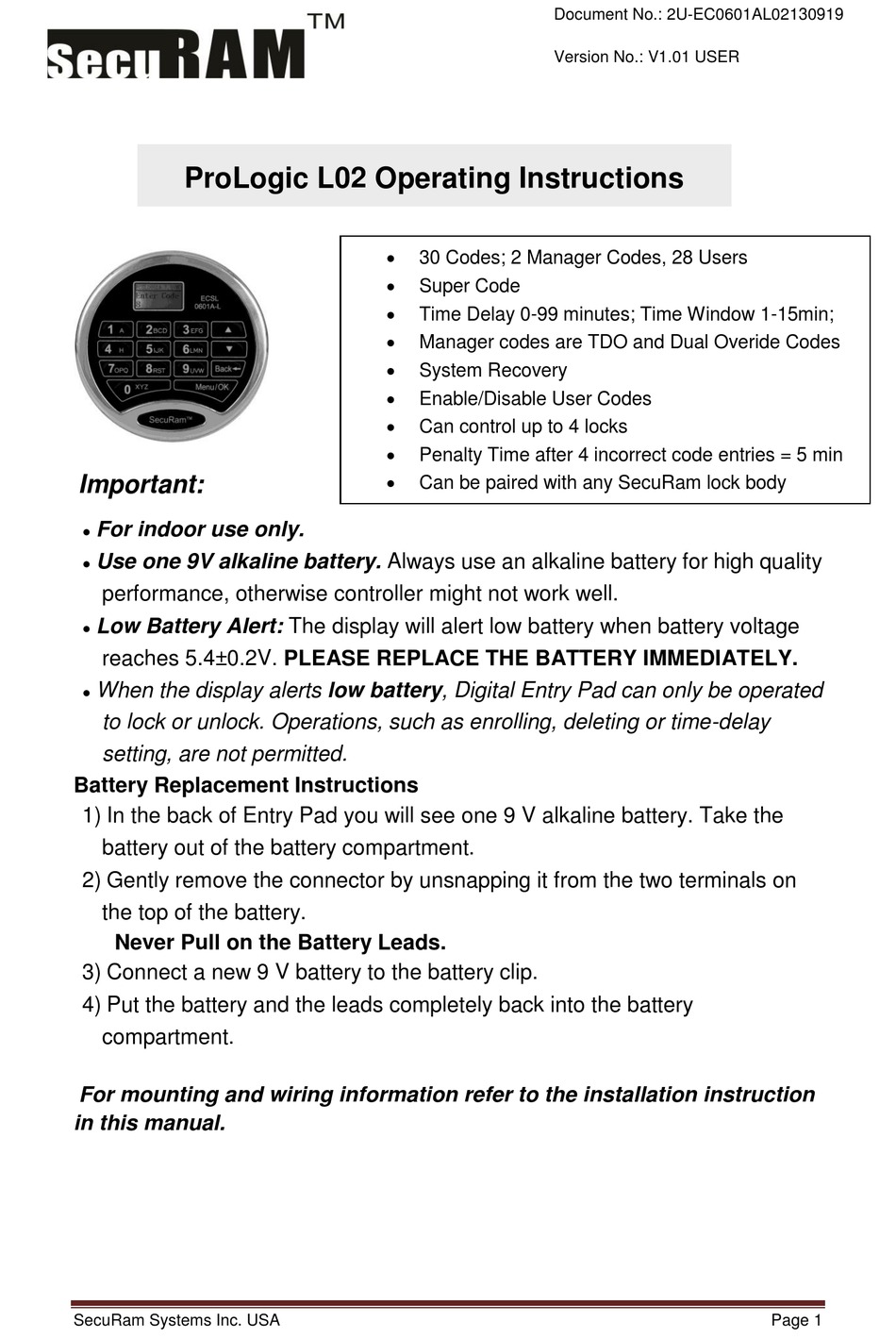

ProLogic L02 Operating Instructions
Important:
For indoor use only.
●
Use one 9V alkaline battery. Always use an alkaline battery for high quality
●
performance, otherwise controller might not work well.
Low Battery Alert: The display will alert low battery when battery voltage
●
reaches 5.4±0.2V. PLEASE REPLACE THE BATTERY IMMEDIATELY.
When the display alerts low battery, Digital Entry Pad can only be operated
●
to lock or unlock. Operations, such as enrolling, deleting or time-delay
setting, are not permitted.
Battery Replacement Instructions
1) In the back of Entry Pad you will see one 9 V alkaline battery. Take the
battery out of the battery compartment.
2) Gently remove the connector by unsnapping it from the two terminals on
the top of the battery.
Never Pull on the Battery Leads.
3) Connect a new 9 V battery to the battery clip.
4) Put the battery and the leads completely back into the battery
compartment.
For mounting and wiring information refer to the installation instruction
in this manual.
SecuRam Systems Inc. USA
Document No.: 2U-EC0601AL02130919
Version No.: V1.01 USER

30 Codes; 2 Manager Codes, 28 Users

Super Code

Time Delay 0-99 minutes; Time Window 1-15min;

Manager codes are TDO and Dual Overide Codes

System Recovery

Enable/Disable User Codes

Can control up to 4 locks

Penalty Time after 4 incorrect code entries = 5 min

Can be paired with any SecuRam lock body
