Package Contents

FortiGate-3600

16

Mounting

The FortiGate-3000 unit can be mounted in a standard 19-inch rack. It requires
2 U of vertical space in the rack. The FortiGate-3000 unit can also be installed as
a free-standing appliance on any stable surface.
Table 1: Technical Specifications
Dimensions 16.75 x 13.5 x 3.5 in. (42.7 x 33 x 8.9 cm)
Weight 17.5 lb. (8 kg)
Power Power dissipation: 360W (max.)
requirements AC input voltage: 100 to 240 VAC
AC input current: 6A
Frequency: 50 to 60Hz
• The FortiGate-3000 unit may overload your supply circuit and impact
your overcurrent protection and supply wiring. Use appropriate
equipment nameplate ratings to address this concern.
• Make sure the FortiGate-3000 unit has reliable grounding. Fortinet
recommends direct connection to the branch circuit.
Environmental Operating temperature: 32 to 104 F (0 to 40 C)
Specifications Storage temperature: -13 to 158 F (-25 to 70 C)
Humidity: 5 to 95% non-condensing
• FortiGate-3600 Unified Threat Management System
• one orange crossover Ethernet cable (Fortinet part number CC300248)
• one gray regular Ethernet cable (Fortinet part number CC300249)
• one null-modem cable (Fortinet part number CC300247)
• two 19-inch rack mount brackets
• two power cables
• FortiGate-3600 QuickStart Guide
• Fortinet Tools and Documentation CD

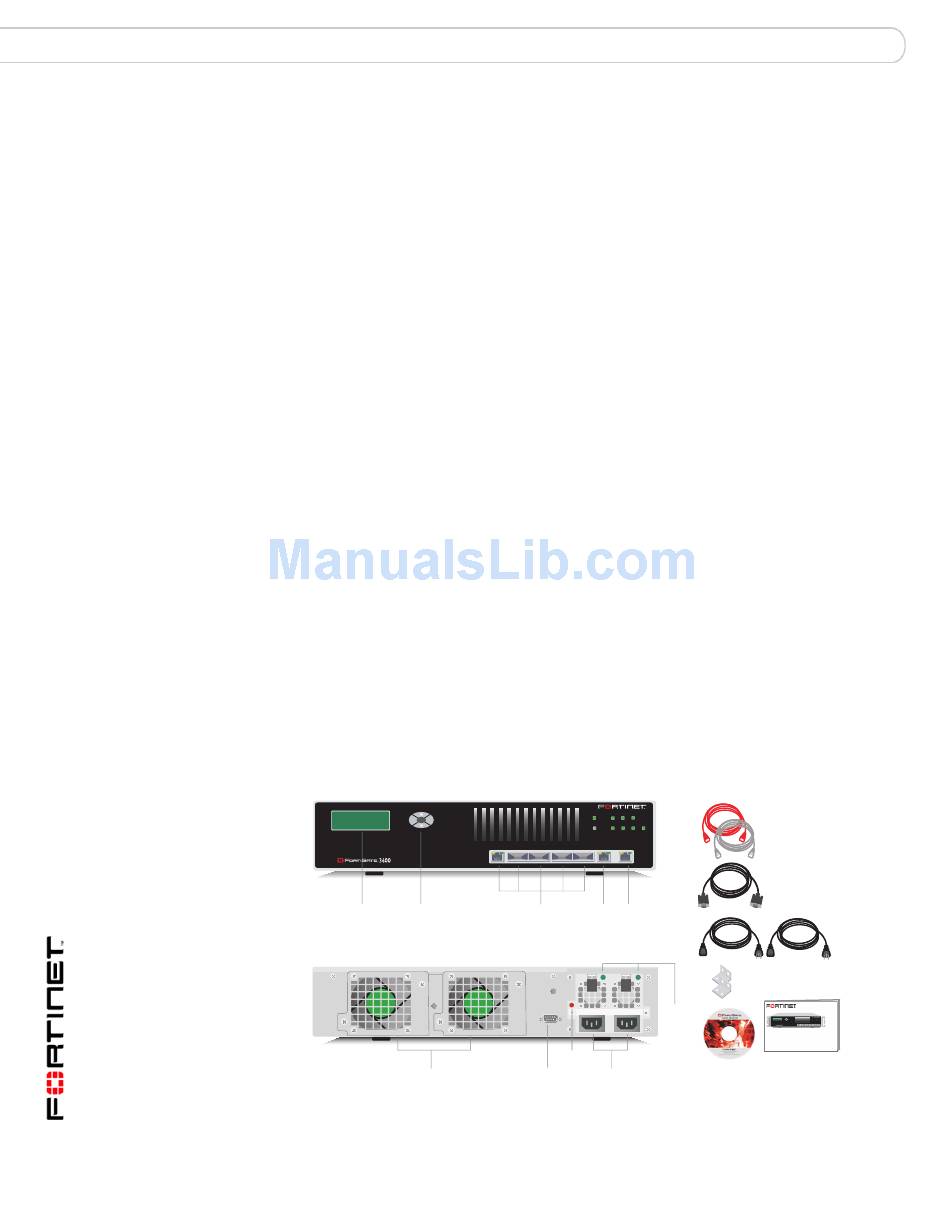

Figure 2: FortiGate-3600 package contents
Front
Esc Enter
LCD Control
Display Buttons
Back
Redundant
Hot-Swappable
Fan Assemblies
FortiGate-3000 and FortiGate-3600 FortiOS 3.0MR4 Install Guide
POWER 1 2 3
Hi-Temp 4 5/HA INT EXT
1 2 3 4 5/HA INTERNAL EXTERNAL
1, 2, 3, 4, 5/HA Internal External
Interfaces Interface Interface
Power
Supply
LEDs
Alarm
Cancel
RS-232 Serial Redundant
Button
Connection Hot Swappable
Power Supplies
Installing the FortiGate unit
Ethernet Cables:
Orange - Crossover
Grey - Straight-through
Null-Modem Cable
(RS-232)
Power Cables (2)
Rack-Mount Brackets
FortiGate-3600
POWER 1 2 3
Esc Enter Hi-Temp 4 5/HA INT EXT
USER MANUAL
1 2 3 4 5/HA INTERNAL EXTERNAL
QuickStart Guide
