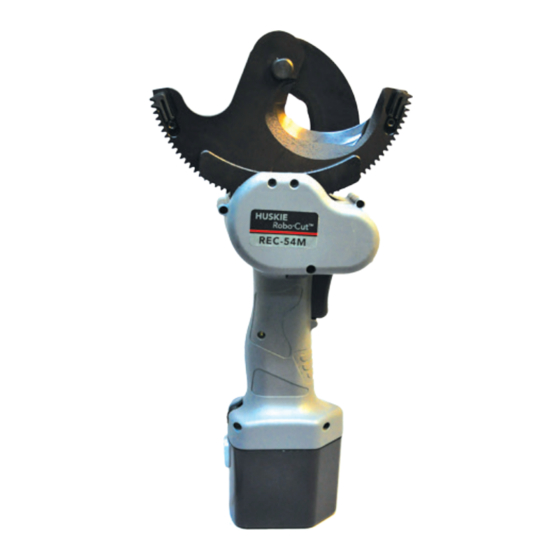

Gear-driven cable cutter
Hide thumbs Also See for REC-54M:

Advertisement

Quick Links

Read and understand all of the instructions and safety information in
this manual before operating or servicing this tool.
www.spartacogroup.com
OPERATION MANUAL
OPERATION MANUAL
REC-54M
REC-54M: Gear-Driven Cable Cutter
195 Internationale Blvd
Glendale Heights, IL 60139
Phone 800-860-6170
Fax 800-345-3767
1
www.spartacogroup.com
800-860-6170

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the REC-54M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Huskie Tools REC-54M

  • Page 1 OPERATION MANUAL OPERATION MANUAL REC-54M REC-54M: Gear-Driven Cable Cutter Read and understand all of the instructions and safety information in this manual before operating or servicing this tool. 195 Internationale Blvd Glendale Heights, IL 60139 Phone 800-860-6170 Fax 800-345-3767 www.spartacogroup.com 800-860-6170 www.spartacogroup.com...
  • Page 2: Table Of Contents

    REGISTRATION/ TABLE OF CONTENTS THANK YOU... Table of Contents for purchasing an Huskie Tools product. Our Registration/ Contents......2 mission is to supply the finest steel cable connecting and cutting tools and cable-related Warranty..........3 products to the transmission and distribution markets.
  • Page 3: Warranty

    WARRANTY Warranty Huskie Tools products carry a warranty that makes us a leader in the tool industry. No other manufacturer dares to back its tools as we do. All Huskie REC-SERIES battery operated products carry a 5 year warranty. The ECO-SERIES battery operated products carry a 1 year warranty.
  • Page 4: Safety

    SAFETY Wear eye protection: Safety Alert Symbol: when operating this tool. Failure to wear eye protec- tion could result in serious eye injury from flying debris. This safety alert symbol indicates a potential per- sonal injury hazard; it is not used for messages related to property damage only.
  • Page 5: Kit Includes

    • 2 BP-84 Lithium Ion Batteries • 1 Carrying Strap Battery and Charger • BP-84 Huskie Tools Lithium Ion Battery • CH-94 Huskie Tools Charger • This charger can charge the BP-84, BP-82 and BP-80 only. Huskie Tools batteries, including the BP-70, BP-70EI and the BP-70MH must be charged with the CH-90, CH-80, or previous charger models.
  • Page 6: Specifications

    NOTE: The REC-54M is not intended to cut guy wires, ground rod or bolts. FOR CLEAN CUTS ON COPPER & ALL ALUMINUM CABLE PLEASE REFER THE REC-50M & THE REC-54ACM.
  • Page 7: Operating Instructions

    OPERATING INSTRUCTIONS CHARGING THE BATTERY 1. Insert the plug end into a 120V power source. The LED (Power) indicator will be steady green indicating the charger is now in “stand-by” mode and ready to charge the battery. Do not plug the charger into a generator as this will likely cause the fuse in the charger to short, and will not operate.
  • Page 8: Operating Instructions

    OPERATING INSTRUCTIONS CUTTING 1. Select the appropriate control setting [Forward (A) or Reverse (B)] by activating toggle switch located above the trigger. 2. Be sure that material being cut is within the specified cutting capacity of the tool. 3. Place the material to be cut between the blades and press the advance trigger until blades hold the material in place.
  • Page 9: Operating Precautions

    OPERATING PRECAUTIONS PRECAUTION FOR THE TOOL 1. Always point the tool AWAY from other people. 2. If the tool is stored for an extended period at a temperature of less than 25º F (-5ºC), the tool should be allowed to return to room temperature to ensure smooth operation Use the tool only after it has been at room temperature for 1 hour.
  • Page 10: Breakdown

    BREAKDOWN www.spartacogroup.com 800-860-6170...
  • Page 11: Parts List

    Strap RCM-056 Screw (M3 x 0.5 x 20L) RCM-057 Screw (M5 x 0.8 x 12L) RCM-024 Protector RCM-010 Screw RCM-026 RCM-059 25 Moveable Blade for REC-54M RCM-001 Shoulder Bolt RCM-025 Washer RCM-063 RCM-064 Spring Gear Base RCM-009-1 Spring Gear RCM-009...
  • Page 12: Troubleshooting Guide

    TROUBLESHOOTING GUIDE PROBLEM CAUSE SOLUTION Consult Factory for Repair Insufficient Hydraulic Oil Service MOTOR RUNS, BUT THE Invert tool to allow air to rise TOOL JAWS WILL NOT Air Block in Hydraulic System towards the top of the oil ADVANCE bladder Consult Factory for Repair Defective Hydraulic Circuit...
  • Page 13 NOTES www.spartacogroup.com 800-860-6170...
  • Page 14 NOTES www.spartacogroup.com 800-860-6170...
  • Page 15 NOTES www.spartacogroup.com 800-860-6170...
  • Page 16 195 Internationale Blvd Glendale Heights, IL 60139 Phone 800-860-6170 Fax 800-345-3767 www.spartacogroup.com...
