OPERATION MANUAL
OPERATION MANUAL
REC-685YC

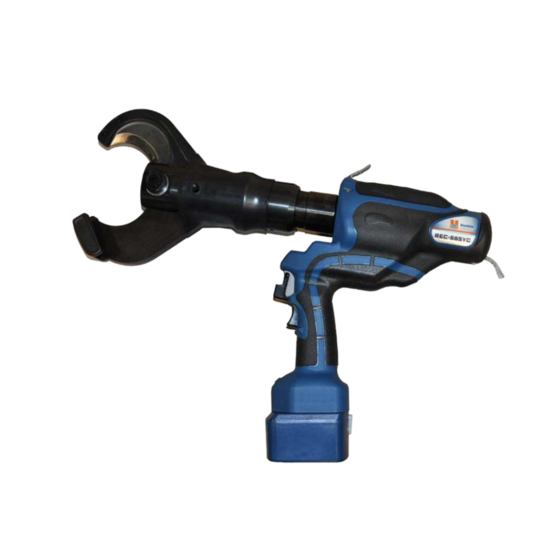

REC-685YC - 9 Ton Scissor -Type Cutting Tool
Read and understand all of the instructions and safety information
in this manual before operating or servicing this tool.
195 Internationale Blvd
Glendale Heights, IL 60139
Phone 800-860-6170
Fax 800-345-3767
www.spartacogroup.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Huskie Tools REC-685YC
Summary of Contents for Huskie Tools REC-685YC
- Page 1 OPERATION MANUAL OPERATION MANUAL REC-685YC REC-685YC - 9 Ton Scissor -Type Cutting Tool Read and understand all of the instructions and safety information in this manual before operating or servicing this tool. 195 Internationale Blvd Glendale Heights, IL 60139 Phone 800-860-6170 Fax 800-345-3767 www.spartacogroup.com...
-
Page 2: Table Of Contents
REGISTRATION/ TABLE OF CONTENTS THANK YOU... Table of Contents for purchasing a Huskie Tools product. Our Registration/ Contents......2 mission is to supply the finest steel cable connecting and cutting tools and cable-related Warranty..........3 products to the transmission and distribution markets. -
Page 3: Warranty
WARRANTY Warranty Huskie Tools products carry a warranty that makes us a leader in the tool industry. No other manufacturer dares to back its tools as we do. All Huskie REC-SERIES battery operated products carry a 5 year warranty. The ECO-SERIES battery operated products carry a 1 year warranty. -
Page 4: Safety
SAFETY Wear eye protection: Safety Alert Symbol: when operating this tool. Failure to wear eye protection could result in serious eye injury from flying This safety alert symbol indicates a potential debris. personal injury hazard; it is not used for messages related to property damage only. -
Page 5: Kit Includes
• 2 BP-84 Lithium Ion Batteries • 1 Carrying Strap Battery and Charger • BP-84 Huskie Tools Lithium Ion Battery • CH-94 Huskie Tools Charger • This charger can charge the BP-84, BP-82 and BP-80 only. Huskie Tools batteries, including the BP-70, BP-70EI and the BP-70MH must be charged with the CH-90, CH-80, or previous charger models. -
Page 6: Specifications
SPECIFICATIONS REC-685YC Specifications Output 9 Ton Weight 14.7 lbs. with Battery Size 20.8”L x 13.3”H x 3.4”W Features Jaw Opening 3.3” Cutting Estimates • Open Scissor Jaw for Easy Cable Insertion BP-84 • Rotational Head • Bright White, LED Lights for Working in... -
Page 7: Operating Instructions
OPERATING INSTRUCTIONS CHARGING THE BATTERY 1. Insert the plug end into a 120V power source. The LED (Power) indicator will be steady green indicating the charger is now in “stand-by” mode and ready to charge the battery. Do not plug the charger into a generator as this will likely cause the fuse in the charger to short, and will not operate. - Page 8 OPERATING INSTRUCTIONS CUTTING 1. Retract blades by pressing the release button. 2. Be sure that material being cut is within the specified cutting capacity of the tool. 3. Place the material to be cut between the blades and press the advance trigger until blades hold the material in place.
-
Page 9: Operating Precautions
OPERATING PRECAUTIONS PRECAUTION FOR THE TOOL 1. Always point the tool AWAY from other people. 2. If the tool is stored for an extended period at a temperature of less than 25º F (-5ºC), the tool should be allowed to return to room temperature to ensure smooth operation Use the tool only after it has been at room temperature for 1 hour. -
Page 10: Breakdown
BREAKDOWN www.spartacogroup.com 800-860-6170... -
Page 11: Parts List
PARTS LIST DESCRIPTION CODE QTY. DESCRIPTION CODE QTY. Thrust Washer (1831) R85-13 Bush R14A-19 M5 X 10 Screw Y30-01 P-3 O-Ring 16-36 Protector (A) R85-14 P-5 O-Ring (B) 610F-18 Blade R85-15 P-5 O-Ring 5N-35 Link Pin R85-10 P-7 O-Ring 16-60 Blade Guide R85-17 P-3 O-Ring (U801) -
Page 12: Troubleshooting Guide
TROUBLESHOOTING GUIDE PROBLEM CAUSE SOLUTION Consult Factory for Repair Insufficient Hydraulic Oil Service MOTOR RUNS, BUT THE Invert tool to allow air to rise TOOL JAWS WILL NOT Air Block in Hydraulic System towards the top of the oil ADVANCE bladder Consult Factory for Repair Defective Hydraulic Circuit... - Page 13 NOTES www.spartacogroup.com 800-860-6170...
- Page 14 NOTES www.spartacogroup.com 800-860-6170...
- Page 15 NOTES www.spartacogroup.com 800-860-6170...
- Page 16 195 Internationale Blvd Glendale Heights, IL 60139 Phone 800-860-6170 Fax 800-345-3767 www.spartacogroup.com...
