Operating Instruction Manual
For REC-54M Battery Powered
Tool With Parts List

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the REC-54M and is the answer not in the manual?

Questions and answers

Related Manuals for Huskie Tools REC-54M

Summary of Contents for Huskie Tools REC-54M

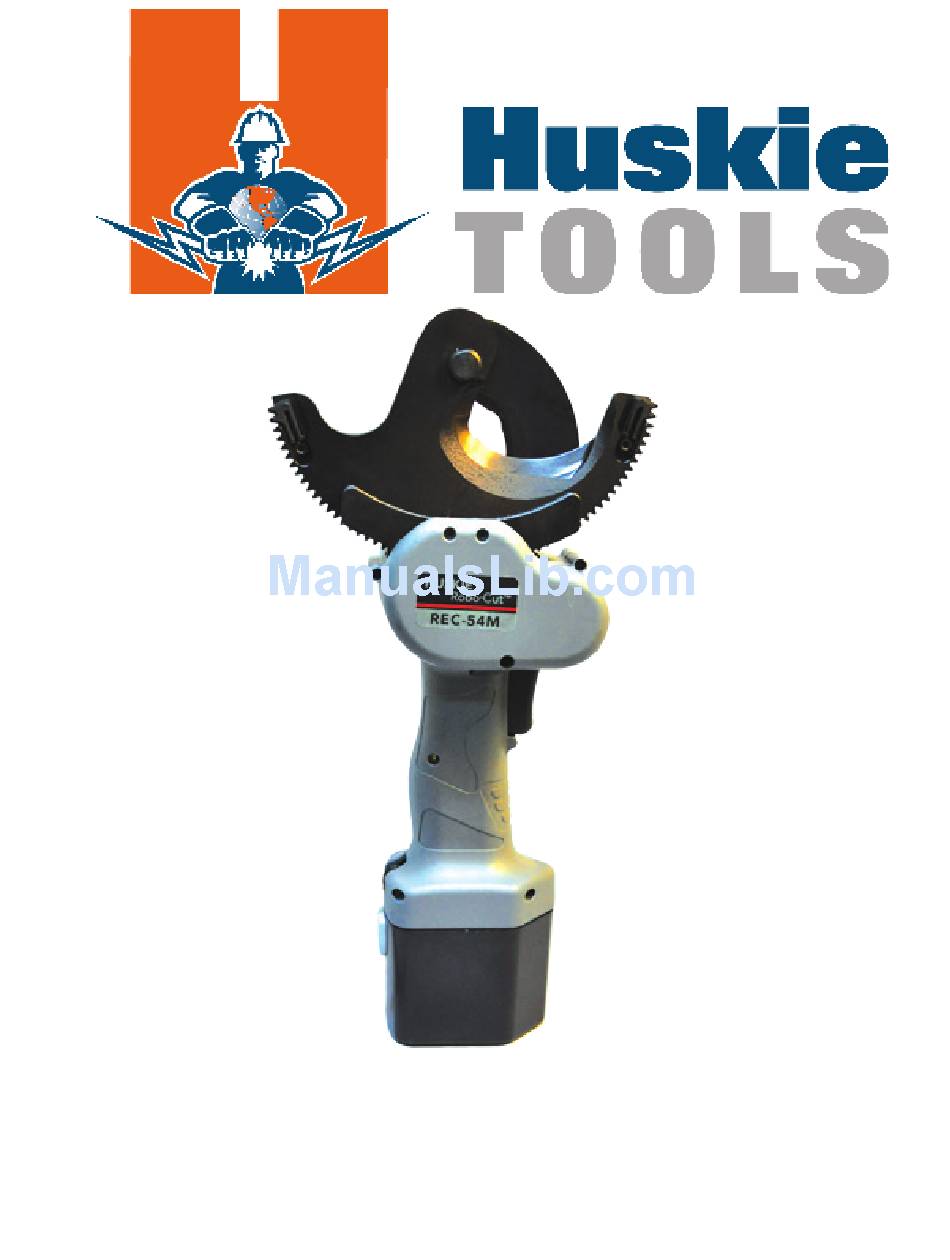

  • Page 1 Operating Instruction Manual For REC-54M Battery Powered Tool With Parts List...
  • Page 2 Connect with us! @huskietoolsinc facebook.com/huskietools linkedin.com/company/huskie-tools youtube.com/user/huskietools www.huskietools.com info@huskietools.com...
  • Page 3 Lithium Ion • 5 Year Warranty on Battery and Charger Voltage: 14.4V DC Rated current: 3.0 Ah The REC-54M is not intended to cut guy wires, ground rod or Charge time: 1 Hour bolts. Dimensions: 3.5”L x 2.7”W x 5.3”H Weight: 1.2 lbs.

  • Page 4: Standard Accessories

    STANDARD ACCESSORIES OPTIONAL ACCESSORIES www.huskietools.com info@huskietools.com...
  • Page 5 INSTRUCTIONS PRECAUTION FOR THE TOOL 1. Select appropriate dies for the connector to be compressed. Incorrect combinations result in inferior connections of the conductors. Consult your connector manufacturer for the recommended die/connector combinations. 2. Always point the tool AWAY from other people. 3.

  • Page 6: Important Operating Precautions

    IMPORTANT OPERATING PRECAUTIONS CHARGING THE BATTERY 1. Insert the plug end into a 120V power source. The LED (Power) indicator will be steady green indicating the charger is now in “stand-by” mode and ready to charge the battery. Do not plug the charger into a generator as this will likely cause the fuse in the charger to short, and will not operate.

  • Page 7: Operating Instructions

    OPERATING INSTRUCTIONS CUTTING 1. Select Forward or Reverse by toggle switch located above the activation switch. 2. Place the cable to be cut onto the stationary blade and rotate the moveable blade around the cable by hand and engage into the drive gear. 3.
  • Page 8 BREAKDOWN...
  • Page 9 Strap RCM-056 Screw (M3 x 0.5 x 20L) RCM-057 Screw (M5 x 0.8 x 12L) RCM-024 Protector RCM-010 Screw RCM-026 RCM-059 25 Moveable Blade for REC-54M RCM-001 Shoulder Bolt RCM-025 Washer RCM-063 RCM-064 Spring Gear Base RCM-009-1 Spring Gear RCM-009...

  • Page 10: Warranty

    WARRANTY Huskie Tools products carry a warranty that makes us a leader in the tool industry. No other manufacturer dares to back its tools as we do. All Huskie REC-SERIES battery operated products carry a 5 year warranty. The ECO-SERIES battery operated products carry a 3 year warranty.
  • Page 11 1. Write, call or fax Huskie Tools stating the tool’s purchase date and problem. You will be given a RGA # to assure that your merchandise will be properly handled upon its receipt.
  • Page 12 198 N. Brandon Drive Glendale Heights, Illinois 60139 (630) 893-7755 • Fax (800) 345-3767 Toll Free 1-800-860-6170 http://www.huskietools.com info@huskietools.com 10/08...
