Summary of Contents for Huskie Tools REC-5OM

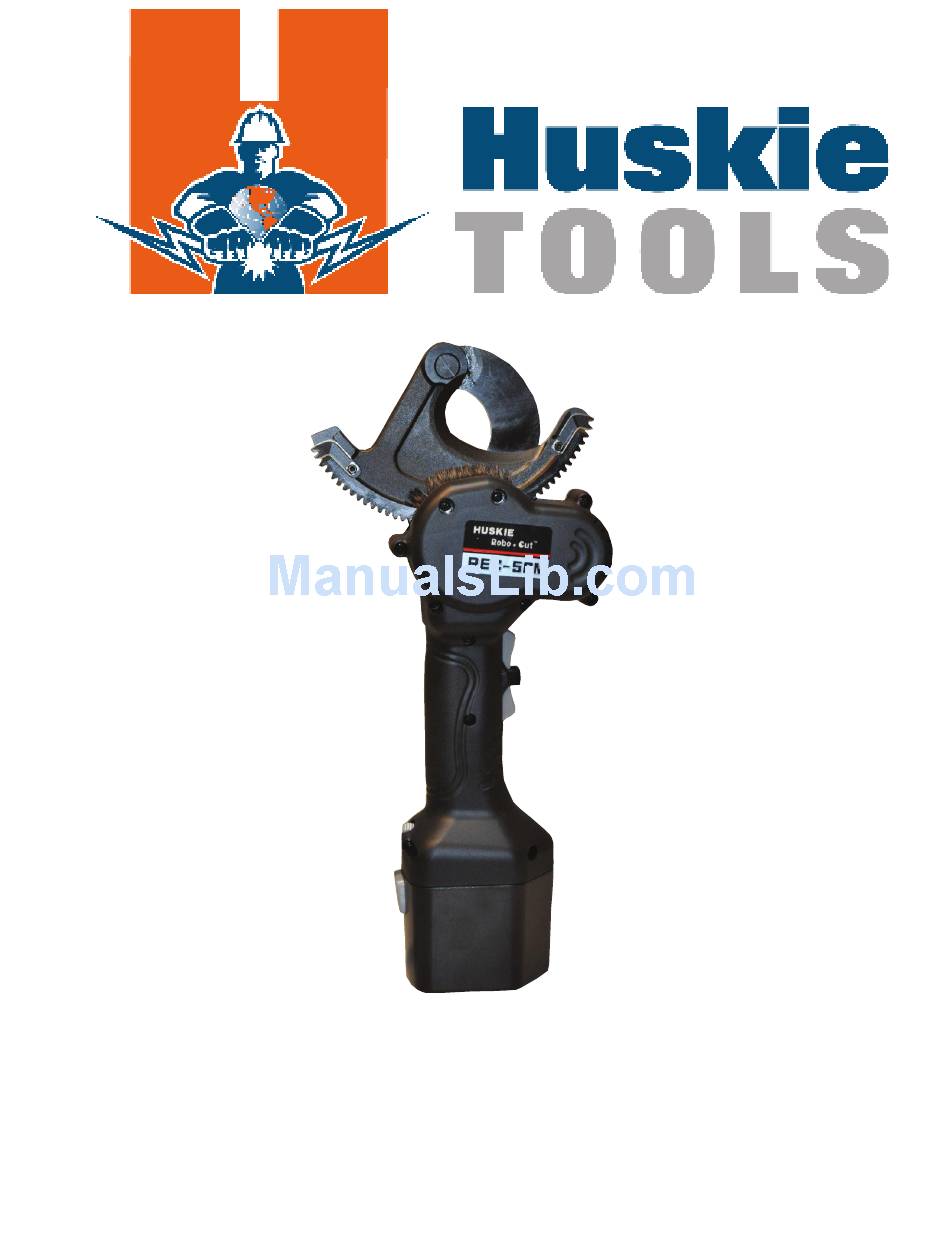

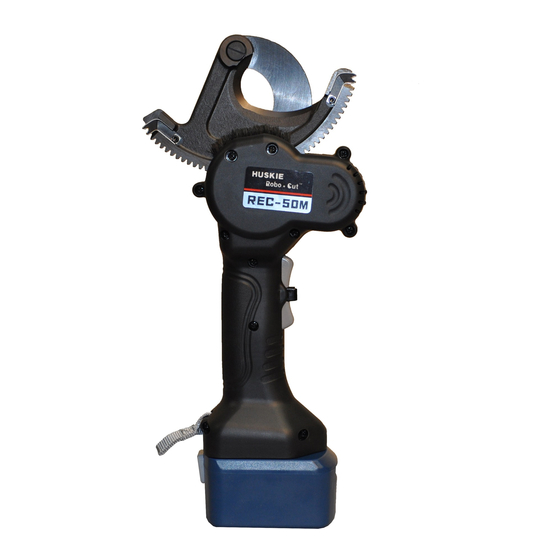

- Page 1 OPERATING INSTRUCTION MANUAL REC-5OM GEAR-DRIVEN BATTERY- POWERED CUTTING TOOL 2” JAW OPENING...
- Page 2 Connect with us! @huskietoolsinc facebook.com/huskietools linkedin.com/company/huskie-tools youtube.com/user/huskietools www.huskietools.com...
-
Page 3: Specifications
SPECIFICATIONS REC-50M FEATURES Weight: 6 Ibs. with battery • Improved Ergonomic Handle Size: 14.5” L x 4” H x 2.5”W • One Hand Operation Jaw Opening: 2” • Tested up to 75kV • Ergonomically Balanced • Weather Resistant Housing CUTTING ESTIMATES •... -
Page 4: Kit Includes
KIT INCLUDES Battery and Charger • 1 Battery Powered Tool • BP-80 Huskie Tools Lithium Ion Battery • 1 Carrying Case • CH-90 Huskie Tools Tri-Chemistry Charger • 1 CH-90 Tri-Chemistry Charger • This charger can charge the BP-80 and ALL previous •... -
Page 5: Charging The Battery
OPERATING INSTRUCTIONS CHARGING THE BATTERY 1. Insert the plug end into a 120V power source. The LED indicator will be steady green indicating the charger is now in “stand-by” mode and ready to charge the battery. Do not plug the charger into a generator as this will likely cause the fuse in the charger to short, and will not operate. - Page 6 OPERATING INSTRUCTIONS CUTTING 1. Operate the switch (forward or reverse) by depressing the center lock-out button and toggle the switch up or down to release the movable blade. 2. Place the cable to be cut onto the stationary blade and rotate the moveable blade around the cable by hand and engage into the drive gear.
-
Page 7: Important Operating Precautions
IMPORTANT OPERATING PRECAUTIONS PRECAUTION FOR THE TOOL 1. Always point the tool AWAY from other people. 2. If the tool is stored for an extended period at a temperature of less than 25º F (-5ºC), the tool should be allowed to return to room temperature to ensure smooth operation Use the tool only after it has been at room temperature for 1 hour. - Page 8 REC-50M BREAKDOWN www.huskietools.com...
- Page 9 REC-5OM PARTS LIST NO. DESCRIPTION CODE 11 M3 X 3 Screw RC50-03 12 Gear Guide (B) RC50-04 13 Moving Blade RC50-16 14 Shoulder Screw RC50-05 15 Gear Guide (A) RC50-15 16 Stationary Blade RC50-18 17 M6 Lock Washer (Ni) RC50-06...
- Page 10 www.huskietools.com...
-
Page 11: Warranty
WARRANTY Huskie Tools products carry a warranty that makes us a leader in the tool industry. No other manufacturer dares to back its tools as we do. All Huskie REC-SERIES battery operated products carry a 5 year warranty. The ECO-SERIES battery operated products carry a 3 year warranty. - Page 12 WARRANTY HOW TO GET SERVICE UNDER THE TERMS OF THE LIMITED WARRANTY Return your product directly to Huskie Tools, Inc. as our representative network is not Prepared to service the product under the terms of this warranty. 1. Write, call or fax Huskie stating the tool’s purchase date and problem. You will be given a RGA # to assure that your merchandise will be properly handled upon its receipt.
- Page 14 198 N. Brandon Drive Glendale Heights, Illinois 60139 Toll Free 1-800-860-6170 Fax (800) 345-3767 huskietools.com 6/12 info@huskietools.com...
