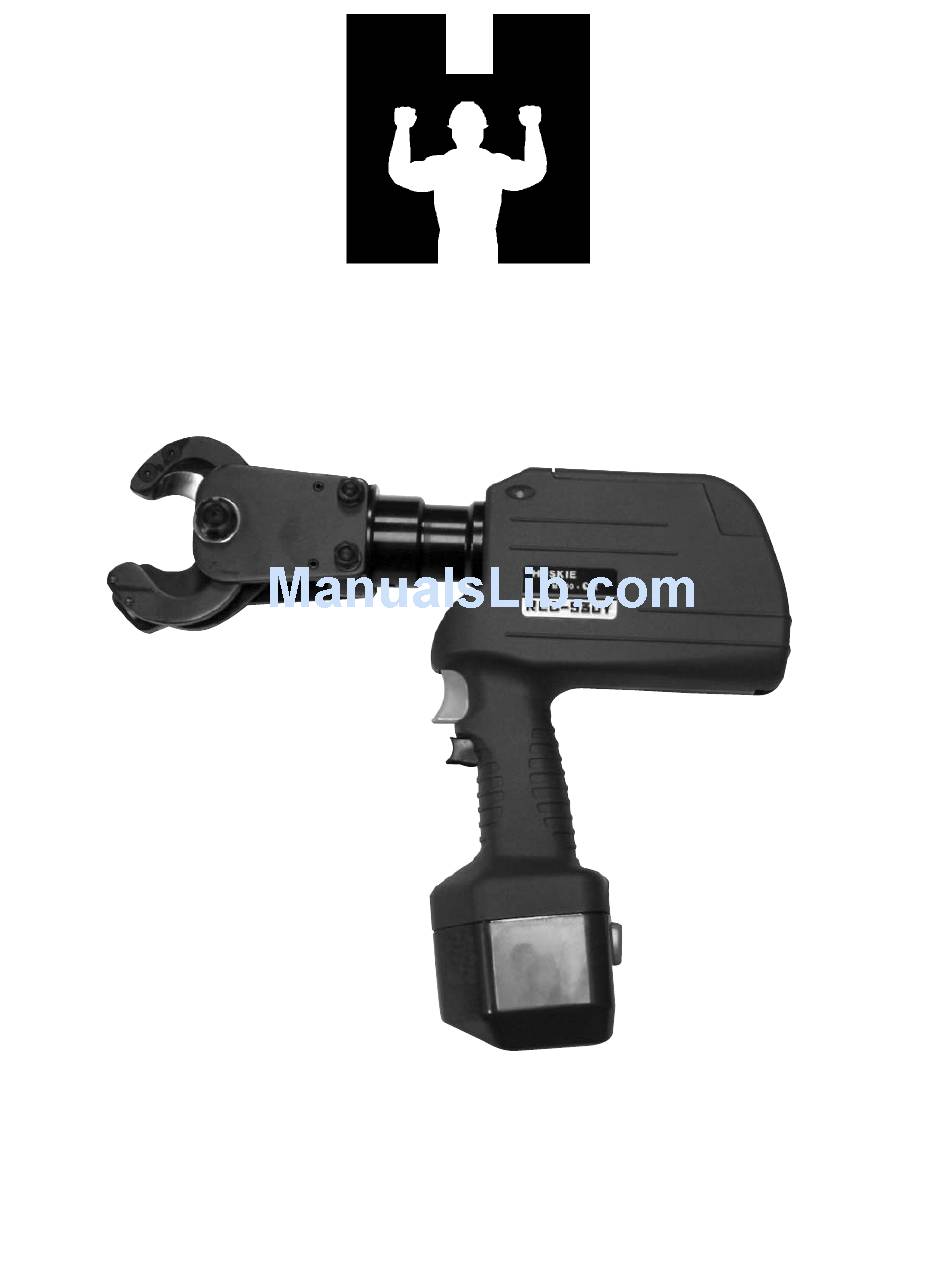

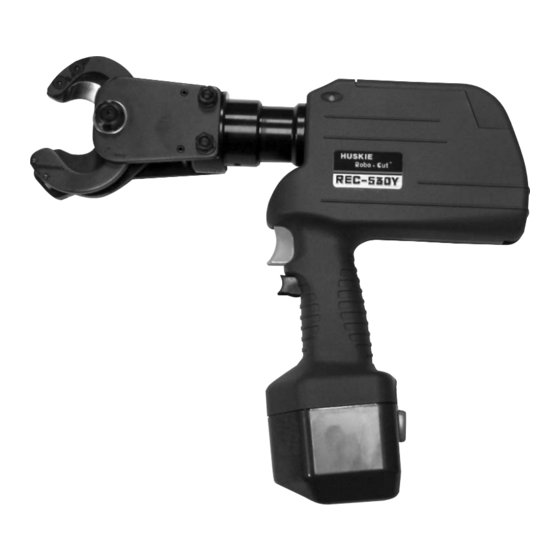

- Page 1 HUSKIE TOOLS, INC. Operating Instruction Manual REC-530Y Battery Powered Cutting Tool with Parts List...
- Page 2 REC-530Y SPECIFICATIONS (REC-530Y) RIMPING BATTERY POWERED Output: 6.6 Tons SCISSOR-TYPE CUTTER Weight: 11.4 lbs. w/ battery 1-3/16” JAW OPENING Size: 15"L x 12”H x 2.5”W Jaw Opening: 1-3/16” • Cuts ACSR up to 336 (BP-70E) ATTERY ARTRIDGE Battery type: Sealed nickel cadmium •...
-
Page 3: Standard Accessories
GUIDE TO CUTTING CYCLES This guide indicates the number of cutting cycles that the REC-530Y can be expected to perform when the battery is fully charged. These figures are approximately and will vary according to the charging and other operating operating conditions, such as temperature, humidity, and battery condition. -
Page 4: Important Operating Precautions
IMPORTANT OPERATING PRECAUTIONS RECAUTIONS FOR THE TOOL Select only the appropriate material to be cut. Cutting materials other than those specified will result in severe tool damage and may cause personal injury. Consult factory if you have any questions about cutting capacities. Always cut the material at the 90°degree angle to the blades. -
Page 5: Charging The Battery
OPERATING INSTRUCTIONS CHARGING THE BATTERY Insert the plug end into a 120V power source. The LED indicator will flash red indicating the charger is now in “stand-by” mode and ready to charge the battery. Do not plug the charger into a generator as this will likely cause the fuse in the charger to short, and will not operate. -
Page 6: Maintenance And Inspection
OPERATING INSTRUCTIONS CUTTING: Retract blades by pressing the release button. Make sure that material being cut is within the specified cutting capacity of the tool. Place the material to be cut between the blades and press the advance trigger until blades hold the material in place. Check material for proper alignment to the cutting blades. - Page 7 MODEL REC-530Y PARTS DIAGRAM http://www.huskietools.com info@huskietools.com...
- Page 8 MODEL REC-530Y PARTS LIST DESCRIPTION CODE QTY. DESCRIPTION CODE QTY. M4 X 20 Screw 558-01 PS-8 Pent Seal 16-44 Housing ( R ) 558-02 P-8 Back-Up Ring (B.C.) 85-33 M3 X 6 Screw R150-02 Spring (590) R150-23 Top Cover 558-03...
-
Page 9: Troubleshooting Guide
TROUBLESHOOTING GUIDE PROBLEM CAUSE SOLUTION Consult Factory for Repair Insufficient Hydraulic Oil Service Invert tool to allow air to rise MOTOR RUNS, BUT THE TOOL Air Block in Hydraulic System towards the top of the oil bladder JAWS WILL NOT ADVANCE Consult Factory for Repair Defective Hydraulic Circuit Service... - Page 10 Failure due to misuse, abuse or repairs attempted by anyone other than Huskie Tools, Inc., or an authorized service center render this warranty null and void. Our patented drop-out bypass cartridge can be re-calibrated or tested at no charge for the life of the tool.
- Page 11 MODEL REC-530Y WARRANTY OW TO GET SERVICE UNDER THE TERMS OF THE LIMITED WARRANTY Return your product directly to Huskie Tools, Inc. as our representative network is not prepared to service the product under the terms of this warranty. 1. Write, call or fax Huskie stating the tool’s purchase date and problem. You will be given a RGA # to assure that your merchandise will be properly handled upon its receipt.
- Page 12 198 N. Brandon Drive Glendale Heights, Illinois 60139 (630) 893-7755 Fax (800) 345-3767 Toll Free 1-800-860-6170 http://www.huskietools.com info@huskietools.com...
