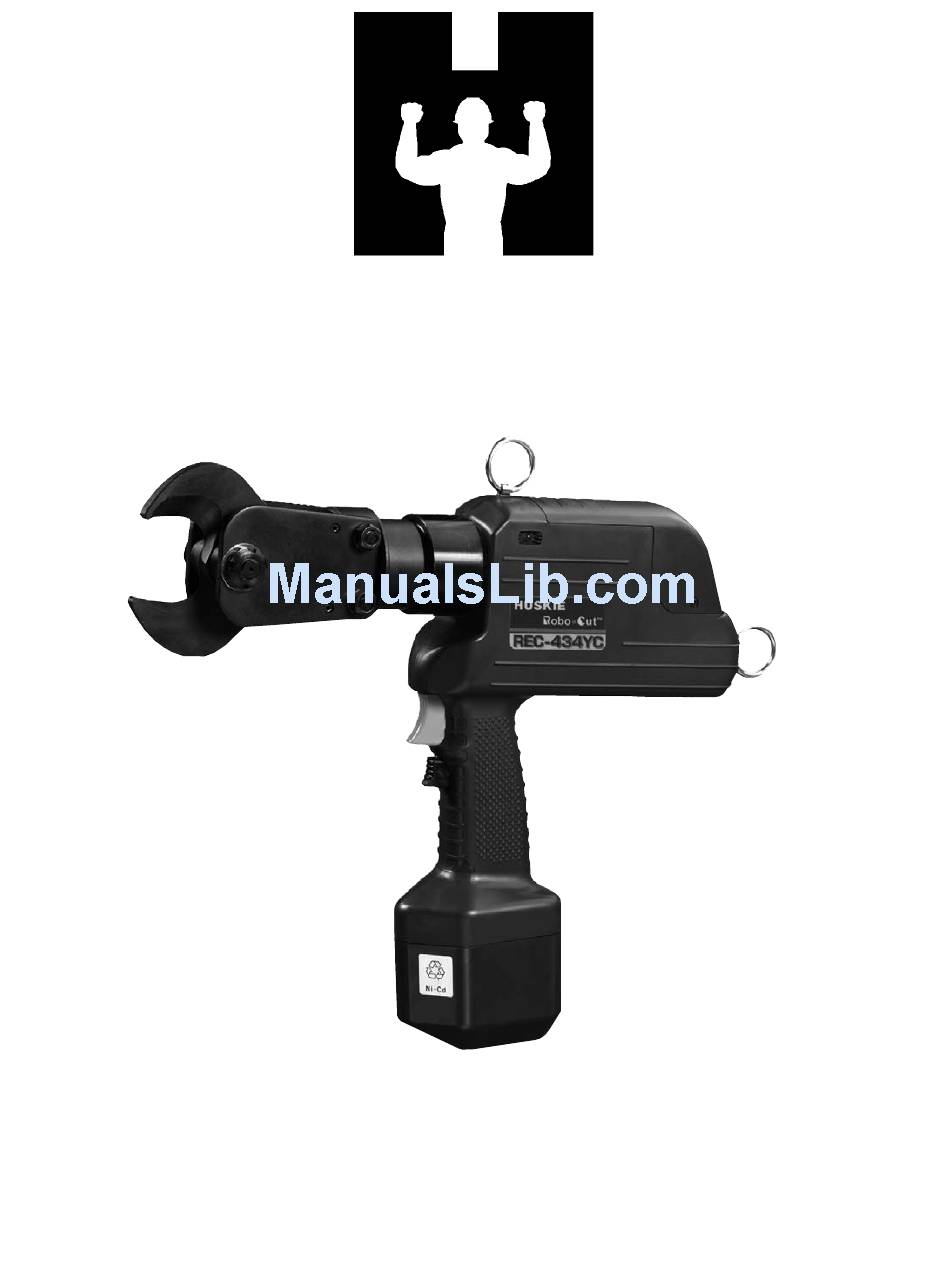

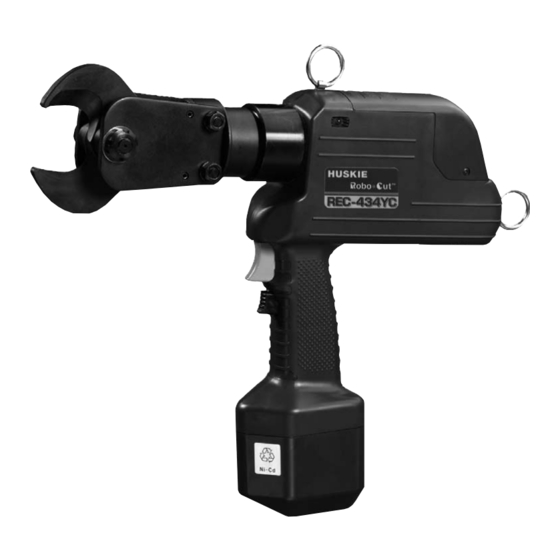

- Page 1 HUSKIE TOOLS, INC. Operating Instruction Manual REC-434YC Battery Powered Cutting Tool with Parts List...
- Page 3 REC-434YC SPECIFICATIONS BATTERY POWERED SCISSOR-TYPE (REC-434YC) UTTING CUTTER Output: 6.6 Ton Weight: 11 lbs. w/ battery 1 3/8” JAW OPENING Size: 15"L x 12”H x 2.5”W Jaw Opening: 1-3/8” (BP-70E) ATTERY ARTRIDGE • For Copper & Aluminum Only Battery type:...
-
Page 4: Standard Accessories
GUIDE TO CUTTING CYCLES This guide indicates the number of cutting cycles that the REC-434YC can be expected to perform when the battery is fully charged. These figures are approximately and will vary according to the charging and other operating operating conditions, such as temperature, humidity, and battery condition. -
Page 5: Important Operating Precautions
IMPORTANT OPERATING PRECAUTIONS RECAUTIONS FOR THE TOOL Select only the appropriate material to be cut. Cutting materials other than those specified will result in severe tool damage and may cause personal injury. Consult factory if you have any questions about cutting capacities. Always cut the material at the 90°degree angle to the blades. -
Page 6: Operating Instructions
OPERATING INSTRUCTIONS CHARGING THE BATTERY Insert the plug end into a 120V power source. The LED indicator will flash red indicating the charger is now in “stand-by” mode and ready to charge the battery. Do not plug the charger into a generator as this will likely cause the fuse in the charger to short, and will not operate. -
Page 7: Maintenance And Inspection
OPERATING INSTRUCTIONS CUTTING: Retract blades by pressing the release button. sure that material being cut is within the specified cutting capacity of the tool. Place the material to be cut between the blades and press the advance trigger until blades hold the material in place. Check material for proper alignment to the cutting blades. - Page 8 MODEL REC-434YC PARTS DIAGRAM http://www.huskietools.com info@huskietools.com...
- Page 9 MODEL REC-434YC PARTS LIST DESCRIPTION CODE QTY. DESCRIPTION CODE QTY. M4 X 15 SCREW R150-01 P-8 BACK-UP RING (B.C.) 85-33 CARTRIDGE CAP ROB-103 SPRING (590) R150-23 M3 X 6 SCREW R150-02 PS-20 PENT SEAL R150-24 HOUSING ( R ) R150-03 P-20 BACK-UP RING (B.C.)
-
Page 10: Troubleshooting Guide
TROUBLESHOOTING GUIDE PROBLEM CAUSE SOLUTION Consult Factory for Repair Insufficient Hydraulic Oil Service Invert tool to allow air to rise MOTOR RUNS, BUT THE TOOL Air Block in Hydraulic System towards the top of the oil bladder JAWS WILL NOT ADVANCE Consult Factory for Repair Defective Hydraulic Circuit Service... - Page 12 HUSKIE TOOLS, INC. 198 N. Brandon Drive Glendale Heights, Illinois 60139 (630) 893-7755 FAX (800) 345-3767 Toll Free 1-800-860-6170 http://www.huskietools.com info@huskietools.com 10/05...
