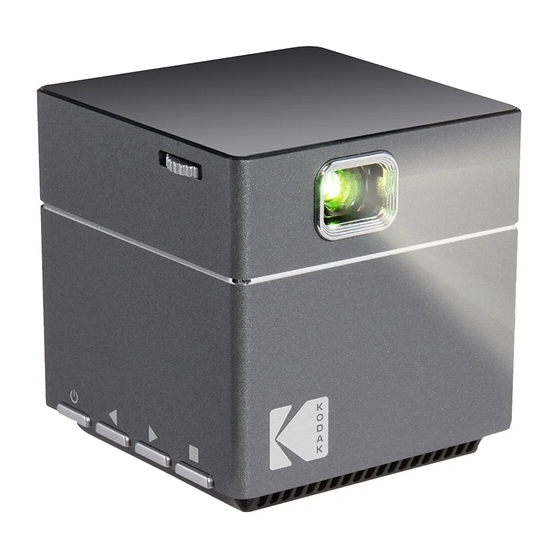

Kodak Pocket Wireless Pico Projector User Manual
2.1 inch h, 2.1 inch w, 2.1 inch d (5.3 cm, 5.3 cm, 5.3 cm)
Hide thumbs
Also See for Pocket Wireless Pico Projector:
- User manual ,
- Quick start manual (24 pages) ,
- User manual (23 pages)
Subscribe to Our Youtube Channel
Related Manuals for Kodak Pocket Wireless Pico Projector
Summary of Contents for Kodak Pocket Wireless Pico Projector
- Page 1 KODAK Pocket Wireless Pico Projector User Manual 2.1"H | 2.1"W | 2.1"D (5.3 cm | 5.3 cm | 5.3 cm) Please read all directions before using the product and retain this guide for reference.
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION FEATURES BOX CONTENTS SAFETY PRECAUTIONS 8-11 SETUP A. CHARGING THE PROJECTOR B. GENERAL SETUP 9-10 C. CONNECT AN HDMI® DEVICE 10-11 D. ENABLE YOUR COMPUTER FOR EXTERNAL DISPLAYS 12-16 OPERATION 12-13 A. PLAYING A MOVIE FILE 13-15 B. PLAYING A MUSIC FILE 15-16 C. -
Page 3: Introduction
1. INTRODUCTION Thank you for purchasing the KODAK Pocket Wireless Pico Projector. This User Guide is intended to provide you with guidelines to ensure that operation of this product is safe and does not pose risk to the user. Any use that does not conform to the guidelines described in this User Guide may void the limited warranty. - Page 4 G. Air Vent When the projector is in use, air will cycle through this vent. NOTE: Always take care that the air vents are never blocked by paper, clothing, or any other obstruction. Blocking the vents may result in overheating of the projector. H.
- Page 5 Controller A. Volume – Button B. Volume + Button C. Up/Down/Left/Right Buttons D. OK Button E. Menu Button F. Exit Button G. Rewind Button H. Fast Forward Button I. Previous Button J. Next Button K. Play/Pause Button L. Stop Button M.
-
Page 6: Box Contents
Restore Default: restores the projector to factory settings Power Off When this option is selected, you will be prompted “yes” or “no”. Select “yes” to power the projector off. 3. BOX CONTENTS KODAK Pocket Wireless Pico Projector HDMI® Cable HDMI® Adapter Power Cable... -
Page 7: Safety Precautions
4. SAFETY PRECAUTIONS When Using the Projector • Refer to this user guide and take note of all safety precautions before using your projector. • Do not place the projector on uneven or unstable surfaces. • Do not use the projector in any place where it may come into contact with smoke. The residue from smoke may cause build-up on critical parts of the projector, resulting in damage or decreased performance. -
Page 8: Setup
5. SETUP Before using your projector, check that all parts listed in the Box Contents section of this manual are present. For best results, we recommend mounting the projector on the included tripod. 5A. CHARGE THE PROJECTOR A. Connect the power cable to the power adapter. B. -
Page 9: General Setup
5B. GENERAL SETUP A. Turn on the Projector Press and hold the power button for 5 seconds to turn on the projector. B. Adjust Screen Size The screen size will increase or decrease as the projector is brought closer or further from the wall. -
Page 10: Enable Your Computer For External Displays
Devices with HDMI port HDMI to Mini HDMI cable Devices with mini HDMI port Mini HDMI adapter to HDMI cable HDMI to Mini HDMI cable Devices with micro HDMI port Micro HDMI adapter to HDMI cable HDMI to Mini HDMI cable iOS devices with lightning port Lightning digital AV adapter HDMI to Mini HDMI cable... - Page 11 To set up a Mac® computer, follow the instructions below: Note: in order to connect a Mac® computer to the projector via HDMI®, an adapter is needed. a. Go to the “System Preferences” menu and select “Displays”. b. Select the “Arrangements” tab. Make sure that “Mirror Displays” is checked. c.
-
Page 12: Operation
6. OPERATION Turn on the Projector Press and hold the power button to turn on the projector. 6A. PLAYING A MOVIE FILE A. From the main menu, use the buttons on the projector, or the direction buttons on the remote to highlight the Movies icon. Use the button on the projector or the OK button on the controller to confirm. -
Page 13: Playing A Music File
Repeat: each time this option is selected, a different repeat setting will be confirmed: R_None: each selected file will play in order. The projector will then return to the file select screen R_One: one file will play on a loop R_ALL: each selected file will play in order, in a loop Random: each selected file will play in a random order Playlist: view and select the files in the current playlist... - Page 14 C. Press the on the projector or the button on the remote to play the files. Music Controls Projector: While playing music, press the button on the projector to open the music controls menu. Use the buttons to cycle through menu options. Use the to select.
-
Page 15: Playing A Picture File
: decreases the volume : increases the volume : use these buttons to cycle through menu options : use this button to open the control menu and confirm menu choice : not available in music mode : press this button to return to the video file list : each press will increase the speed by x2, x4, x8, x16, and x32 : each press will increase the speed by x2, x4, x8, x16, and x32 : play the previous file in the playlist... - Page 16 Picture Controls While viewing photos, press the OK button on the projector to open the photo controls menu. Use the directional buttons to cycle through menu options. Use the OK button to select. NOTE: When viewing photo files, the projector will automatically enter slideshow mode. While in this mode, each photo in the file list will automatically play in order.
-
Page 17: Mirroring The Screen Of A Mobile Device
6D. MIRRORING THE SCREEN OF A MOBILE DEVICE A. Select WiFi® Display from the main menu. B. You can enable the projector for either Apple® or Android™ devices. To switch between these two options, press Confirm button on the projector or the OK button on the controller. For Apple®... - Page 18 NOTE: If the projector does not appear on the device list, you may need to update your device’s firmware. To upgrade, follow the steps below: a. Connect to the MS ID as indicated in steps a–c above. b. Open an internet browser and enter IP: 192.168.203.1 c.
-
Page 19: Care And Maintenance
NOTE: Check your device settings for Cast or Screen Mirror options. The name of the function may vary by model and carrier. Some names include “cast”, “screen mirroring” “smart view”. All devices listed above must be running at least Android version: 4.1.2. 7. -
Page 20: Disposal Precautions
Q Why can some movies not be played? A In this case, there are several possibilities: a. The file size is too large. b. The video resolution is higher than 1080p. The supported resolution is only up to 1080p. c. The file format is not supported. Please refer to the video format support list in the specifications section. -
Page 21: Fcc Compliance Statement
Power supply: DC 5V/2A (Micro USB type) Power consumption: 7W Built-in Speaker: 8Ω1W(x1) Input: mini HDMI®/MicroSD™ slot (up to 64GB) Audio output: ( 3.5mm) Battery: 3.7V 2500MAH Dimensions: 2" x 2" x 2" (55 x 55 x 55mm) Weight: 5.8 oz. (165g) LED working life: above 30000 hrs. -
Page 22: Customer Service Contact Information
13. WARRANTY LIMITED WARRANTY TO ORIGINAL CONSUMER This KODAK Pocket Wireless Pico Projector (“Product”), including any accessories included in the original packaging, as supplied and distributed new by an authorized retailer is warranted by C&A Marketing, Inc. (the “Company”) to the original consumer purchaser only, against certain defects in material and workmanship (“Warranty”) as follows:... - Page 23 Company’s property. Refunds can only be given if the original Product is returned. This Warranty does not apply to: (a) Any non-KODAK Pocket Wireless Pico Projector product, hardware or software, even if packaged or sold with the Product;...
- Page 24 NO ADVICE OR INFORMATION, WHETHER ORAL OR WRITTEN, OBTAINED BY YOU FROM THE COMPANY OR THROUGH ITS AUTHORIZED SERVICE PROVIDERS SHALL CREATE ANY WARRANTY. IN NO EVENT WILL THE COMPANY’S TOTAL CUMULATIVE LIABILITY ARISING FROM OR RELATED TO THE PRODUCT, WHETHER IN CONTRACT OR TORT OR OTHERWISE EXCEED THE FEES ACTUALLY PAID BY YOU TO THE COMPANY OR ANY OF ITS AUTHORIZED RESELLERS FOR THE PRODUCT AT ISSUE IN THE LAST YEAR FROM YOUR PURCHASE.
- Page 25 KODAKPHOTOPLUS.COM The Kodak trademark, logo and trade dress are used under license from Kodak. SD is a trademark of SD-3C LLC in the United States, other countries or both HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and/or other countries.
