Summary of Contents for Kodak Pocket Portable Projector
-
Page 1: User Manual

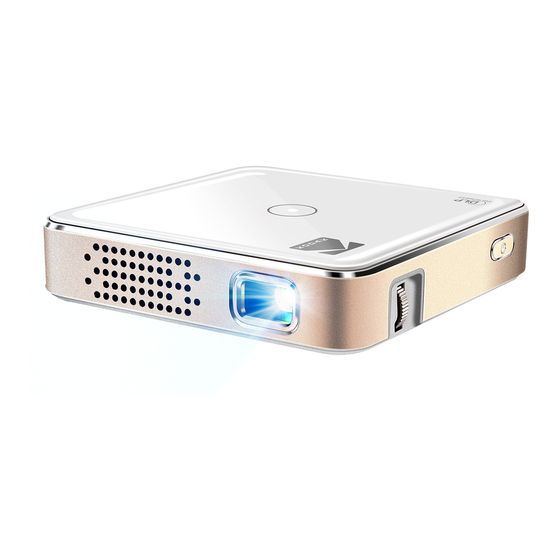

KODAK Pocket Portable Projector User Manual 3"H | 3"W | 0.8"D (8 cm | 8 cm | 2 cm) Please read all directions before using the product and retain this guide for reference. -
Page 2: Table Of Contents
CONTENTS INTRODUCTION BOX CONTENTS SAFETY PRECAUTIONS FEATURES SETUP 6-10 OPERATION 10-11 CARE AND MAINTENANCE DISPOSAL SPECIFICATIONS 12-13 CUSTOMER SERVICE WARRANTY 13-15... -
Page 3: Introduction
1. INTRODUCTION Thank you for purchasing the KODAK Pocket Portable Projector. This User Guide is intended to provide you with guidelines to ensure that operation of this product is safe and does not pose risk to the user. Any use that does not conform to the guidelines described in this User Guide may void the limited warranty. -
Page 4: Features
When Servicing or Replacing Parts • Never attempt to disassemble this product. There are no user serviceable parts. • Do not attempt to remove or disassemble the battery. This will increase the risk of fire or chemical burns. • Always take care that the replacement battery is the correct type. Risk of explosion. •... - Page 5 3. HDMI® Input This port is used to connect the HDMI® (High-Definition Multimedia Interface) connector. It is compatible with HD DVD, Blu-Ray, and other protected content playback. NOTE: If the USB and/or microSD™ inputs are used at the same time as the HDMI®, the HDMI® will take priority.
-
Page 6: Setup
5. SETUP 1. Charge the Projector A. Connect the adapter to the micro USB port of the projector, using the included power cord. B. Plug the adapter into an outlet or other power source. C. You may now use the projector. D. - Page 7 C. Adjust Screen Size The screen size will increase or decrease as the projector is brought closer or further from the wall. The chart below 8 0 i n c h details the correlation between distance and screen size. 6 0 i n c h 4 0 i After the screen is the desired size, use the...
-
Page 8: Setup.
E. Enable your Computer for External Displays If your computer does not automatically recognize the projector, it means that you must first enable the use of external displays. Each computer is different and may require a different setup. To set up Windows 7 for external displays, follow the instructions below. a. - Page 9 To set up a Mac® computer, follow the instructions below. NOTE: In order to connect a Mac® computer to the projector via HDMI®, an adapter is needed (not included). a. Go to the “System Preferences” menu and select “Displays” b. Select the “Arrangements” tab. Make sure that “Mirror Displays” is checked. c.
-
Page 10: Operation
3. Connect Speakers or Headphones A. Connect your speakers or headphones to the projector’s audio output port, using a 3.5mm cable. B. Adjust the volume as needed. 4. Insert MicroSD™ Card or USB Drive Slide the microSD™ card into the microSD™ card slot until it clicks into place. - Page 11 3. Video Controls Before you can use the control panel, you must always tap the confirm button to make it appear first. Pause: Tap the confirm button. Fast Forward: Tap the button. Each tap will increase the speed by x2, x4, x8, and x16. Rewind: Tap the button.
-
Page 12: Care And Maintenance
7. CARE AND MAINTENANCE • Before cleaning your projector, make sure that it is switched off and unplugged. • Wipe the projector’s housing using a clean dry cloth. • Make sure that the lens is cool before cleaning it. Wipe it gently using a lens cleaning paper or cloth. Never touch the lens with bare hands. -
Page 13: Customer Service
11. WARRANTY LIMITED WARRANTY TO ORIGINAL CONSUMER This KODAK Pocket Portable Projector (“Product”), including any accessories included in the original packaging, as supplied and distributed new by an authorized retailer is warranted by C&A Marketing, Inc. (the “Company”) to the original consumer purchaser only, against certain defects in material and workmanship (“Warranty”) as follows:... -
Page 14: Operation
Company’s property. Refunds can only be given if the original Product is returned. This Warranty does not apply to: (a) Any non-KODAK Pocket Portable Projector product, hardware or software, even if packaged or sold with the Product; (b) Damage caused by use with non-KODAK Pocket Portable Projector products;... - Page 15 This warranty gives you specific legal rights, and you may have other rights that vary from state to state or province to province. Contact your authorized retailer to determine if another warranty applies. Kodak does NOT manufacture this Product or provide any Warranty or support.
- Page 16 The Kodak trademark, logo and trade dress are used under license from Kodak. SD is a trademark of SD-3C LLC in the United States, other countries or both HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and/or other countries.
