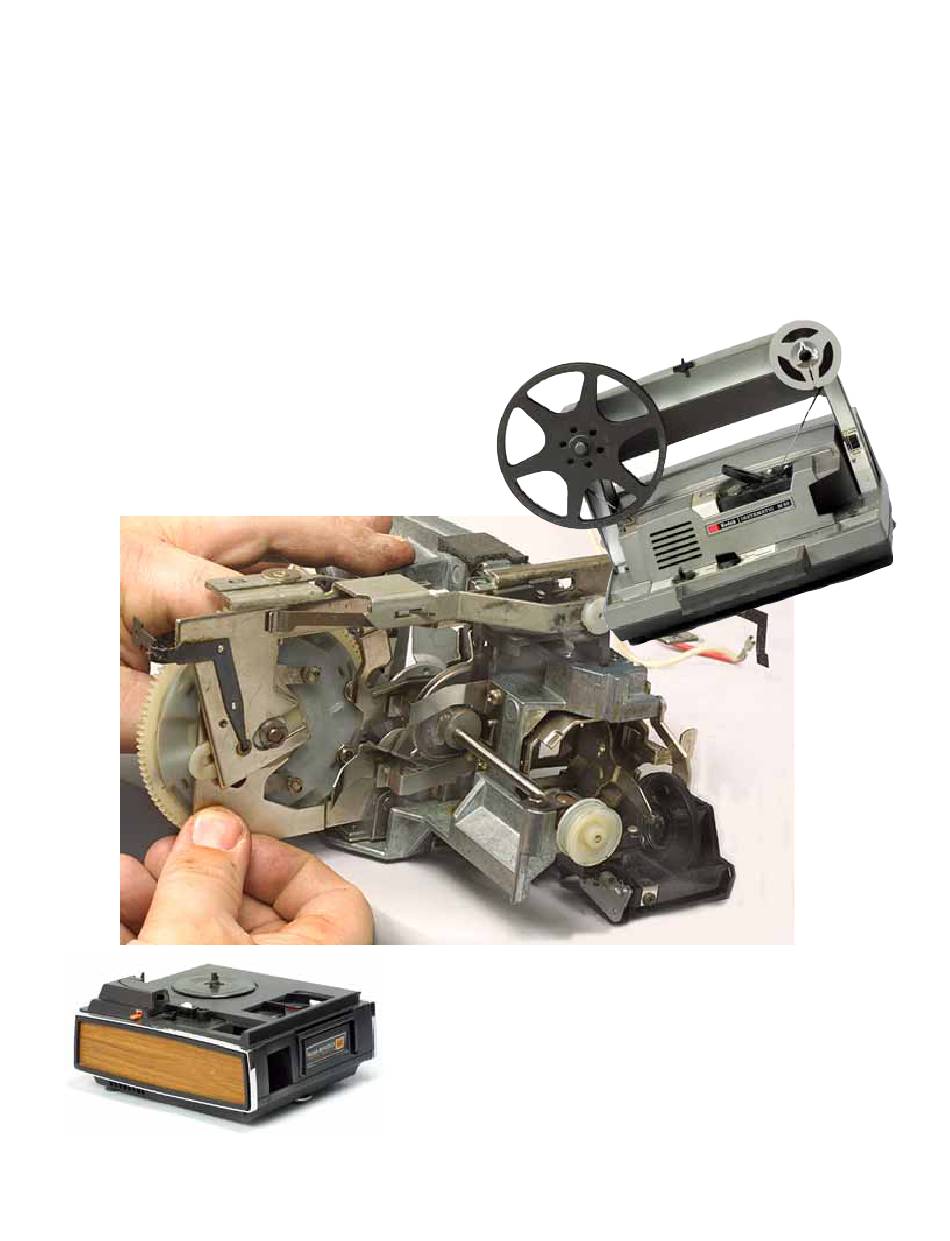

- Page 1 Compliments of: www.KodakParts.com Repairing the Kodak Instamatic Projector Includes the variations in other M-series projectors. Plus...Normal Repairs on the Kodak Moviedeck Projectors. A Publication of Fargo Enterprises, Inc.
-
Page 2: Table Of Contents
Compliments of: www.KodakParts.com REPAIRING THE KODAK INSTAMATIC M80 PROJECTOR ...and other models in the M-series. Plus tips on repairing the Kodak Moviedeck projectors. Contents Contents Contents Contents Contents By Curt Fargo & Larry Lyells M-SERIES M80 SPECS AND OPERATION FROM THE KODAK MANUAL ---------------------- 38... -
Page 3: M-Series
Also, Fargo Enterprises, Inc. acquired the remaining supply of parts from Kodak. If you would like a list of the parts available, contact Fargo Enterprises, Inc. and request a copy of the Micro-Tools catalog. Or check the parts online at www.fargo-ent.com/kodak.htm. -
Page 4: Flow Chart
If you lose a part, original the Kodak manual, a manual that's no longer you may need to keep searching—it's not always possible to available from Kodak. -
Page 5: Recommended Tools
The numbers and letters in italics following the item indicate the order code. For a complete catalog of tools, contact Fargo Enterprises, Inc. Or check the tools online at www.micro-tools.com/ 3/KODAK M-SERIES PROJECTORS... -
Page 6: Inspection, Removing The Bottom Cover
FIG. D3 Bottom of the M80 projector. Not all In Fig. D5, the entire gear is missing—the gear has broken, projectors have the two upper screws. Note and the sections may be inside the projector. that the bottom cover stores the take-up reel. 4/KODAK M-SERIES PROJECTORS... - Page 7 HUB FOR SHUTTER GEAR FIG. D5 Here the shutter gear has completely broken away. FIG. D6 Unplug the lead of the power cord from the switch. SWITCH GUIDE WIRE TIE MOTOR FIG. D7 Bottom cover lifted aside. 5/KODAK M-SERIES PROJECTORS...
-
Page 8: Disassembly
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 screws. The screws secure a critical adjustment. Kodak... - Page 9 FIG. D12 Front view, front PRESSURE cover removed— PLATE removing the film-path cover plate. FILM-PATH COVER PLATE FIG. D13 Front view, front cover removed—removing the lens. FIG. D14 M80 with the parts to remove at the front of the projector. 7/KODAK M-SERIES PROJECTORS...
- Page 10 WIRE CLIP arm, Fig. D18. FIG. D16 Wire clip for the ARIATION: Kodak uses one of two types of springs motor wires, on the forward/reverse arm—a short spring (1/2") or a back of long spring (1"). Your projector may have either type. Fig.
- Page 11 FIG. D21 Motor screw with washer over SCREWS grommet. MOTOR WIRES HOLDING MOTOR FIG. D23 Variation—routing of the motor wires when no wire clip is used; the photo FIG. D22 Back view, lower right-hand corner. shows an M95 projector. 9/KODAK M-SERIES PROJECTORS...
- Page 12 Fig. D29. The other end of this rubber belt goes to the pulley that FIG. D28 Remove the screws holding the drives the spindles. guide—four in this example. 10/KODAK M-SERIES PROJECTORS...
- Page 13 FIG. D30 Using a thin-walled 1/4" nut driver to cam lever in the M95. remove the third mechanism screw. MECHANISM SCREWS FIG. D32 Remove the three mechanism FIG. D33 Lifting the mechanism from the case. screws. 11/KODAK M-SERIES PROJECTORS...
-
Page 14: Checking The Cam Bushing
DISASSEMBLY OF THE MECHANISM FIG. D37 Probing the cam-shaft bushing to test its condition. This one needs to be Locate the still-mask changeover rod in Fig. D35. The still- replaced. mask changeover rod moves the still-mode lever, bringing 12/KODAK M-SERIES PROJECTORS... - Page 15 FLATTEN HERE IN-AND-OUT CAM SPRING CLAMPS SUPER 8/REGULAR 8 MASK TAB ON FILM- CAM-SHAFT BEARINGS SELECTOR SLIDE FIG. D40 Coupling to the super-8/regular-8 FIG. D41 Loosen the screws holding the spring mask. clamps to remove the cam assembly. 13/KODAK M-SERIES PROJECTORS...
- Page 16 7. Loosen the screw holding the spring clamp for the shutter- drive-shaft bearing shown in Fig. D46. Shift the spring FIG. D44 Lamp chamber at the front of the clamp away from the top of the shutter-drive-shaft bearing. projector. 14/KODAK M-SERIES PROJECTORS...
- Page 17 CAM ON SHUTTER-DRIVE SHAFT SHUTTER spare parts—the washers are no longer available from Kodak. And if you lose the washer? Keep searching. As you'll see in a moment, the washer is important. AUTION: The cam followers for the up-and-down claw movement are now loose, Fig. D45. The cam followers can come off the claws once you remove the shutter-drive shaft.
-
Page 18: Shutter Repairs & Installation
Fig. D54. SHUTTER-SIDE BEARING FOR SHUTTER-DRIVE SHAFT CAM FOLLOWER FIG. D52 Cam follower removed from the claw assembly. The cams on the shutter-drive shaft ride against this follower to provide the up- FIG. D51 and-down claw movement. 16/KODAK M-SERIES PROJECTORS... - Page 19 178641 single-blade, 0.185" Also note the disk with two flat springs at the front of the shutter, Fig. D57. The springs are for reducing chatter. Kodak has never LATE-STYLE SHUTTER EARLY STYLE SHUTTER provided the spring unit as a replacement part—the spring unit was only provided as...
- Page 20 Seat the shutter in the mechanism with the spring unit facing the claw assembly. FIG. D60 The groove shows wear in the shutter-side bearing--most likely, the washer FIG. D59 Lubricating the shutter-drive shaft. was left out. 18/KODAK M-SERIES PROJECTORS...
- Page 21 PULL DOWN THIS SECTION OF THE CLAW ASSEMBLY FIG. D63 Variation—claw assembly in the M70 projector. FIG. D64 Lubricate the front of the shutter- drive shaft with shutter oil. 19/KODAK M-SERIES PROJECTORS...
- Page 22 IN-AND-OUT-CAM FOLLOWERS FIG. D68 Lubricate the arms that contact the FIG. D67 Cam assembly. in-and-out-cam followers with grease. 20/KODAK M-SERIES PROJECTORS...
-
Page 23: Repairs On The Cam-Shaft Assembly
M85, a single-speed and the early model (bottom). Note the projector. Use the two-shoulder bushing as it's difference in the bushings and the shoulder at supplied. No modification is necessary. the center of the early style in-and-out cam. 21/KODAK M-SERIES PROJECTORS... - Page 24 SHOULDER GROOVE FIG. D76 Modifying the in-and-out cam by FIG. D75 Early style in-and-out cam. cutting back the shoulder to the groove. 22/KODAK M-SERIES PROJECTORS...
-
Page 25: Installing And Timing The Drive-Cam Assembly
Fully seat the drive-cam assembly. But before you tighten the spring clamps on the cam shaft, we'll time the in-and-out cam to the shutter. FIG. D80 Installing the drive-cam assembly. 23/KODAK M-SERIES PROJECTORS... - Page 26 FIG. D84 Check for proper operation by turning the pulley of the shutter-drive shaft FIG. D83 Replacing the followers at the front counterclockwise. of the in-and-out cam. 24/KODAK M-SERIES PROJECTORS...
-
Page 27: Replacing The Damping Arm
Just loosen the other two cover screws. The projector may DAMPING ARM REMOVE SPRING/ROLLER LOOSEN THIS SCREW MAY BE MISSING FIG. D89 A broken damping arm viewed from FIG. D88 Damping arm, front of projector. the back of the mechanism. 25/KODAK M-SERIES PROJECTORS... - Page 28 FLAT SPRING POSTS DAMPING ARM FIG. D92 With the cover removed, you can see how the flat spring seats over a pair of posts. FIG. D93 New damping arm installed. 26/KODAK M-SERIES PROJECTORS...
-
Page 29: Completing Reassembly Of The Mechanism
In most cases, the snap ring is around 1/4" from the end of the still-mask changeover rod, Fig. D97. Replace the spring for the still-mask changeover FIG. D97 Initial adjustment of snap ring rod, Fig. D95. position on still-frame changeover rod. 27/KODAK M-SERIES PROJECTORS... - Page 30 FIG. D102 Oil the grommet or the screw; the FIG. D101 The spring on the cam lever may oil prevents the rubber grommet from turning jump out of place—here's the proper as you tighten the screw. connection. 28/KODAK M-SERIES PROJECTORS...
- Page 31 Remember to first replace the insulator for the lead that has two wires. ECCENTRIC GUIDE POWER LEADS FORWARD/ REVERSE WIRE TIE UPPER WIRE CLIP WIREWOUND RESISTOR FIG. D106 Mecanism completely BLACK AND WHITE MOTOR WIRES installed housing, back view. 29/KODAK M-SERIES PROJECTORS...
- Page 32 Check the routing of the wires coming from the switch in FIG. D110 Here's the typical rewind problem— Fig. D106. Route the wires as shown; the routing pre- vents the wires from being pinched by the bottom cover. the tabs are broken off the rewind driver. 30/KODAK M-SERIES PROJECTORS...
-
Page 33: Replacing The Rewind Driver
Fig. D111. Be careful to avoid FIG. D114 Tilt the rewind driver to clear the disturbing the belts, Fig. D111, and the parts below the rewind lever. rewind driver (shown in the drawing of the side view, Fig. 31/KODAK M-SERIES PROJECTORS... -
Page 34: Tests And Adjustments
-if the still-frame heat-absorbing filter doesn't move DOG ON SHUTTER-DRIVE SHAFT DOG ON SHUTTER-DRIVE SHAFT OUTER LUG ON SHUTTER INNER LUG ON SHUTTER FIG. D113 Shutter-drive shaft and shutter-- FIG. D114 Shutter-drive shaft and shutter-- position at reverse. position at forward. 32/KODAK M-SERIES PROJECTORS... - Page 35 When you're checking with super 8 film, install the super-8 FIG. D117 Front of projector—pressure plate adapter over the supply spindle. Remove the super-8 adapter to check with regular-8 film. installed. 33/KODAK M-SERIES PROJECTORS...
- Page 36 Then use your compressed air to blow out the cleaner. FIG. D121 View through the lens opening, lens Also check image while running the projector in reverse. removed. Again, the image should not jump. If the image does jump, 34/KODAK M-SERIES PROJECTORS...
- Page 37 Kodak (see, Operation and Repair Tips from Kodak). For a quick test while running film, pull up on the film before it passes through the gate—if you can pull the film out of the gate, the depth of claw engagement is insufficient.
-
Page 38: Final Steps Of Reassembly
Likely cause 1: Connection between power cord and switch or between power cord and motor. Malfunction: Still-frame heat-absorbing filter remains in the Solution: Check, clean, and improve the connections. light path on the slowest running speed (6fps). 36/KODAK M-SERIES PROJECTORS... -
Page 39: Lubrication Summary
-surfaces of claw levers that ride against in-and-out cam followers -front surface of in-and-out cam Oil lubrication: -ball bearings on claw assembly -shutter drive shaft (where the shutter-drive shaft passes through the bearings) -cam shaft (where the cam shaft passes through the bearings) 37/KODAK M-SERIES PROJECTORS... -
Page 40: M80 Specs And Operation From The Kodak Manual
Kodak service manuals provide good background information in the operation of the M-series projectors. Since you can no longer obtain all of the special tools described, we have edited the following section of Kodak's M80 service manual. 1. TOOLS, SPECIFICATIONS... -
Page 41: Film Selector
8 claw or the regular-8 claw is in the operating position. One window in the control panel plate indicates which film (super 8 or regular 8) the projector is ready to accept. The two remaining windows indicate Forward and Reverse settings of the speed-control knob. FIG. K7 39/KODAK M-SERIES PROJECTORS... -
Page 42: Spindle Operation
The rewind spindle (front) has a certain amount of slippage which is necessary for proper operation. When the rewind switch is moved to the "On" position, the front spindle is driven by a pin which prevents slippage, thereby rewind- ing the film. FIG. K11 40/KODAK M-SERIES PROJECTORS... -
Page 43: Direction Of Shifting Operation
The cam-drive dog rotates 180° until it reaches the short shutter lug, Fig. K14 and Fig. K18. This is the regular-8 Forward running position. The pulldown claw enters the film perforations at the FIG. K17 FIG. K18 start of the downstroke. 41/KODAK M-SERIES PROJECTORS... -
Page 44: Moviedeck Series
Compliments of: www.KodakParts.com NORMAL REPAIRS IN THE KODAK MOVIEDECK PROJECTORS nother popular series of Kodak projectors—the Moviedeck series—still has widespread use. Even after SUPPLY years of service, there are very few problems with the SPINDLE Moviedeck projectors. As with the M-series projectors, the shutter gear breaks and/or deterio- rates. - Page 45 At the back of the projector, top cover Fig. MD6, you can see the in-and-out cam and the end of the cam shaft; the cam shaft passes through a gear that's held by removed. an E-clip. 43/KODAK M-SERIES PROJECTORS...
-
Page 46: Disassembly To Remove The Shutter
11. You now have a clear view of the shutter at the front of FIG. MD10 Bottom the projector, Fig. MD15. Note the plastic cap at the front of of projector, take- up-reel removed. BLACK WHITE WIRES ACCESSORY OUTLET FIG. MD11 Top of projector. FIG. MD12 Front of projector. 44/KODAK M-SERIES PROJECTORS... - Page 47 LAMP HOUSING REMOVE SCREW FIG. MD13 Underside of projector mechanism. LAMP HOUSING FIG. MD14 Bottom of projector mechanism from back. IN-AND-OUT CAM SHUTTER SHUTTER CAP CAM-SHAFT GEAR FIG. MD15 Bottom of projector, viewed from the back—lamp housing removed. 45/KODAK M-SERIES PROJECTORS...
-
Page 48: Removing And Replacing The Shutter
HIGHLIGHTED TIMING MARK ON IN-AND-OUT CAM COIL SPRING TIMING NOTCH ON SHUTTER FIG. MD19 After freeing the shutter-drive shaft, lift out the old shutter. Send in the FIG. MD20 Timing the shutter to the in-and-out shutter for the exchange rate. cam. 46/KODAK M-SERIES PROJECTORS... - Page 49 M80). To change the depth of claw engagement, you can add or remove washers to the cam-shaft gear, Fig. MD15 (between the cam-shaft gear and the E-clip). The effect is to FIG. MD24 move the complete in-and-out cam. 47/KODAK M-SERIES PROJECTORS...
- Page 50 Compliments of: www.KodakParts.com...
- Page 51 Compliments of: www.KodakParts.com...
- Page 52 Compliments of: www.KodakParts.com...
- Page 53 Compliments of: www.KodakParts.com...
- Page 54 Compliments of: www.KodakParts.com...
- Page 55 Compliments of: www.KodakParts.com...
- Page 56 Compliments of: www.KodakParts.com...
