Page 2: Disclaimer
DJI Technology Co., Ltd. and its affiliated companies assume no liability for damage s or injuries incurred directly or indirectly from using, installing or refitting this product improperly, including but not limited to using non‐designated accessories. DJI is the registered trademark of SZ DJI Technology Co., Ltd. abbreviated as “DJI” . Names of products, brands, etc., appearing in this manual are trademarks or registered trademarks of their respective owner companies. This product and manual are copyrighted by DJI with all rights reserved. No part of this product ... -
Page 3: Table Of Contents
Disclaimer ........................................ 2 Warnings ........................................ 2 About .......................................... 4 Part Description * ...................................... 4 Installation and Connection .................................. 5 Usage .......................................... 6 Linking Procedures .................................. 6 Configuring Parameters Using the DJI Assistant 2 ...................... 6 Using the DJI Ground Station .............................. 7 Working Status LED .................................. 7 Appendix ........................................ 8 Specifications ..................................... 8 Compliance Information .................................. 9 FCC Compliance Notice .................................. 9 ... -
Page 4: About

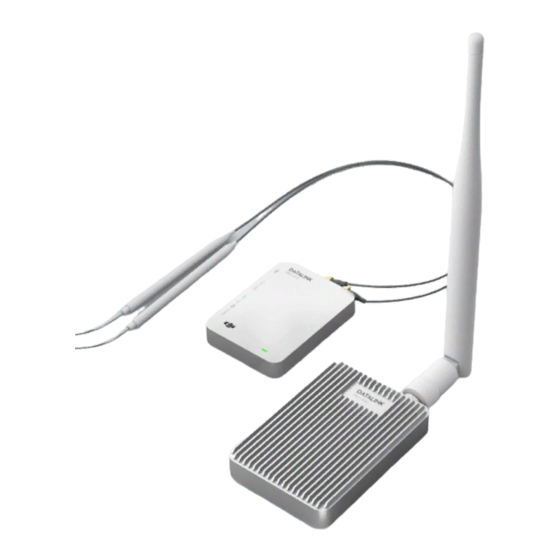

The Datalink Pro is used for wireless data transmission, including communication between the Mobile Station and Base Station. There are 400M and 900M versions to meet the requirements of different regions. The multi‐functional bidirectional transmission link is perfect for the DJI A3 flight control system, D‐RTK and Ground Station. Use frequency bands of near 400 MHz and 900 MHz to avoid radio interference with the DJI Lightbridge and remote controller. Support for multiple interfaces, such as USB, CAN and UART, offers additional connectivity. Part Description * ... -
Page 5: Installation And Connection
Double‐sided tape *The 400M and 900M Datalink Pro use different antennas but have the same functions. Installation and Connection The following uses the 900M Datalink Pro, DJI Matrice 600, D‐RTK and DJI Intelligent Flight Battery to illustrate a typical installation and connection. Attach the Base Station antenna and install it on the D‐RTK Ground System’s base board with a screw included with the D‐RTK product . Then connect the Base Station and the D‐RTK Ground System via an 8‐pin cable. Install the Mobile Station to the DJI Matrice 600 with double‐sided tape. Attach the antennas to the ... -
Page 6: Usage
Refer to the “D‐RTK Quick Start Guide” for details if using the D‐RTK. Usage Use the Datalink Pro in an open environment free from radio interference. Linking Procedures Base Station and Mobile Station are linked before leaving the factory. Note that frequency linking is required if any device is changed or added. Enable the D‐RTK Ground System’s battery to power on the Datalink Pro Base Station. Hold the Base Station’s Linking Button for about 3 seconds to enter the linking mode with the Working Status LED blinks red and green alternatively. Enable the D‐RTK Ground System’s battery to power on the Datalink Pro Mobile Station. Hold the Mobile Station’s Linking Button for about 3 seconds and wait for linking. The Base Station and Mobile Station will connect with each other if successfully linked. Follow procedures 2–5 to link other Mobile Stations to set up a single‐to‐multiple system. Configuring Parameters Using the DJI Assistant 2 DJI Assistant 2 should be used to upgrade the Datalink Pro. Full Duplex Mode and Broadcast Mode can be switched in DJI Assistant 2 Download DJI Assistant 2 from www.dji.com and install it on your computer. Toggle the 4‐position switch to the COMBO_SW4 position, connect the Base Station to the computer with DJI Assistant 2 launched, and then configure parameters according to the message prompts. ... -
Page 7: Using The Dji Ground Station
Configure the Mobile Station in the same way. If multiple Mobile Stations are used, you must configure each Mobile Station one by one. Notes: Power cycle the Datalink Pro, Flight Control System and D‐RTK after upgrading. Supports Windows 7 or later or Mac OS X 10.9 or later . Using the DJI Ground Station Ensure the A3 Flight Control System, Datalink Pro and D‐RTK are connected correctly before powering on. Connect the Base Station to the PC via a Micro USB cable, and then run the Ground Station. Enable the D‐RTK Ground System’s battery to power on the Datalink Pro Base Station first. Enable the D‐RTK Ground System’s battery to power on the Datalink Pro Mobile Station. Note: The DJI Ground Station supports up to five Air Systems in Full Duplex Mode. The 4‐position switch should be set to the COMBO_SW4 position. Download the User Manual from www.dji.com to learn more. Refer to the “DJI Ground Station User Manual” for details if using the DJI Ground Station. Working Status LED LED Description Blinking Red Parameter error after powering on. If not resolved by power ... -
Page 8: Appendix
Taiwan: 10dBm FCC: 25.42dBm South Korea: 10dBm Canada: 25.42dBm Australia: 24dBm Japan: 13dBm Power Consumption Mobile Station: 0.65 W Mobile Station: 0.65 W Base Station: 2.1 W Base Station: 1.2 W Features Frequency Band MHz China: 430‐432 CE: 869.525 Taiwan: 429.175‐429.2375 FCC: 906‐924 South Korea: Canada: 906‐924 447.8625‐447.9875 Australia: 918‐925 Japan: 923.1‐926.3 Serial Data Rate Max. 115200bps Antenna Options Vertically polarized Supported Interfaces USB, UART, CAN Supported DJI Products A3, D‐RTK, Ground Station... -
Page 9: Compliance Information
Operating Temperature 32° to 113°F 0° to 45°C Storage Temperature ‐40° to 185°F ‐40° to 85°C Humidity 5% to 95%, non‐condensing Dimension without Antenna Base Station: 83 mm x 51 mm x 14.5 mm Mobile Station: 58 mm x 42.3 mm x 9.5 mm Weight without Antenna Base Station: 24 g Mobile Station: 53 g Power Supply Voltage Base Station: DC 9 V Mobile Station: DC 9 V Max. Current Transmitting ... -
Page 10: Ic Rss Warning
電機須忍受合法 法通信 或工 工業、科學及醫 醫療用電波輻射 射性電機設備之 之干擾。 EU C ompliance Stat tement SZ D DJI TECHNOLO OGY CO., LTD . hereby decl ares that this s device is in n compliance with the ess ential requ uirements and o other relevant t provisions of the R&TTE Dir rective. ... - Page 11 EU contact address: DJI GmbH, Industrie Strasse. 12, 97618, Niederlauer, Germany 制 造 商：深圳市大疆创新科技有限公司 地 址：深圳市南山区高新南四道18号创维半导体设计大厦西座14层 服务热线：400-700-0303 Manufactured by: 14th floor, West Wing, Skyworth Semiconductor Design Building NO.18 Gaoxin South 4th Ave, Nanshan District, Shenzhen, Guangdong, China ...
