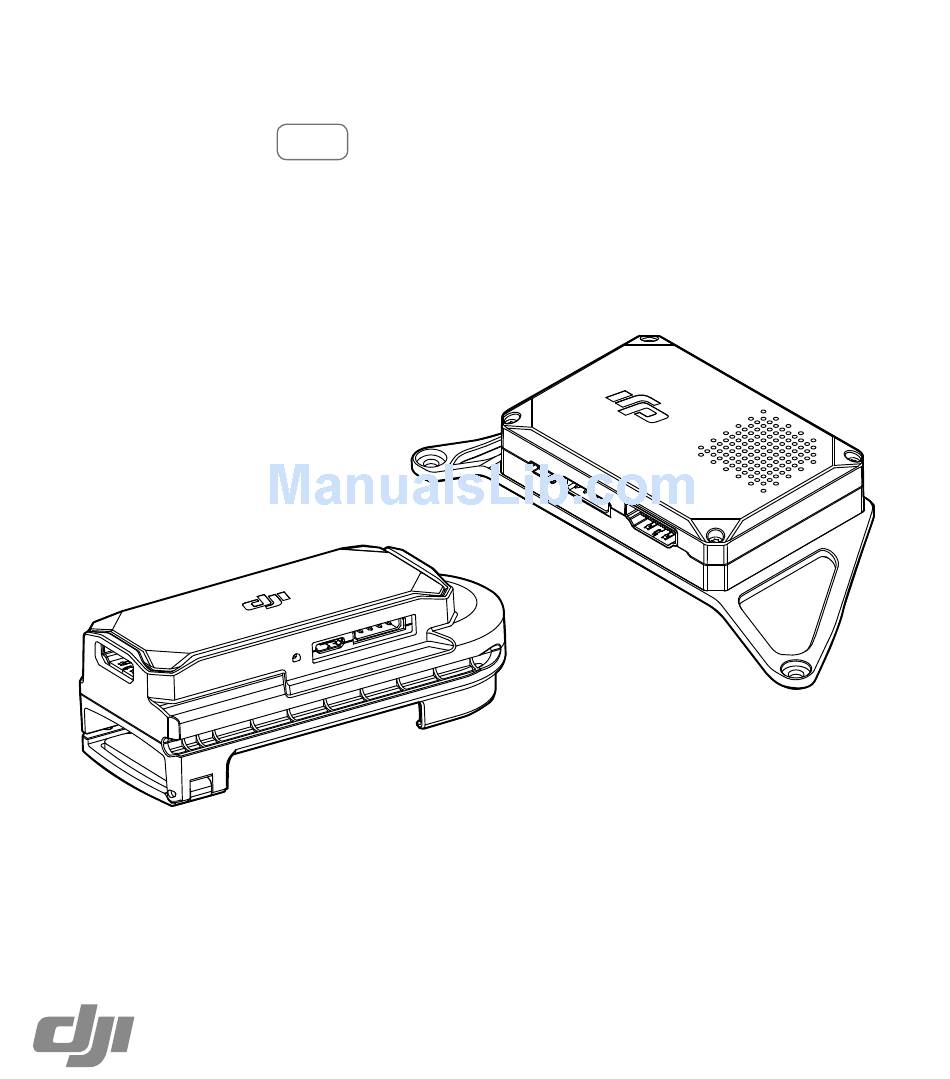

- Page 1 DJI SRW-60G User Manual V1.0 2016.06...
-
Page 2: Disclaimer And Warning
DJI product or damage to other objects in the vicinity. This User Manual and all other collateral documents are subject to change at the sole discretion of DJI. For up-to-date product information, visit http://www.dji.com and click on the product page for this product. - Page 3 Screw (M3×5.5) ×4 Introduction The DJI SRW-60G is a short range wireless video link, which can transmit real time HD video or images for up to 10 meters. Containing both a transmitter and a receiver, it can also be used with the Ronin series of handheld gimbals. Convenient video transmission in a meeting room or at home are also a breeze with the SRW-60G.
- Page 4 2. Power Port For power supply. 3. HDMI Port For connecting to HDMI input for HDMI transmission. 5. Status LED 4. Mounting Adapter Indicates the communication status The adapter can be removed. with the Transmitter. © 2016 DJI All Rights Reserved.
- Page 5 Usage Using the SRW-60G with a Ronin Series Gimbal 1. Loosen the screw of the clamp on the gimbal mounting adapter of the Transmitter. Then attach the Transmitter to the arm of the Ronin-MX or Ronin-M and tighten the screw.
- Page 6 Antenna Position Ensure both the Transmitter and Receiver are not obstructed during use. NOTICE Using the SRW-60G in a Meeting Room or at Home 1. Remove the mounting adapters. 2. Connect the HDMI output and input to the Transmitter and Receiver separately.
- Page 7 Linking successful and working Solid green Solid green — — normally If the linking process does not complete after 15 seconds, check the HDMI TIPS connection on both the Transmitter and Receiver. © 2016 DJI All Rights Reserved.
-
Page 8: Specifications
Antenna Gain 16 dBi Operating Voltage (DC) 7.4-18 V (CAN Port) or 5 V (USB Port) Max Consumption 2.5 W Operating Temperature 32° to 104° F (0° to 40° C) Antenna Type Built-in Antenna © 2016 DJI All Rights Reserved. -
Page 9: Fcc Compliance Notice
L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. © 2016 DJI All Rights Reserved. -
Page 10: Eu Compliance Statement
“해당 무선설비는 운용 중 전파혼신 가능성이 있음” EU Compliance Statement SZ DJI TECHNOLOGY CO., LTD. hereby declares that this device is in compliance with the essential requirements and other relevant provisions of the R&TTE Directive. A copy of the EU Declaration of Conformity is available online at www.dji.com/euro-compliance EU contact address: DJI GmbH, Industrie Strasse. - Page 11 The content is subject to change. Download the latest version from http://www.dji.com/product/ronin-mx If you have any questions about this document, please contact DJI by sending a message to DocSupport@dji.com. RONIN is a trademark of DJI. Copyright © 2016 DJI All Rights Reserved.
