ELE-EV3-FFSBP
QUICKSTART GUIDE

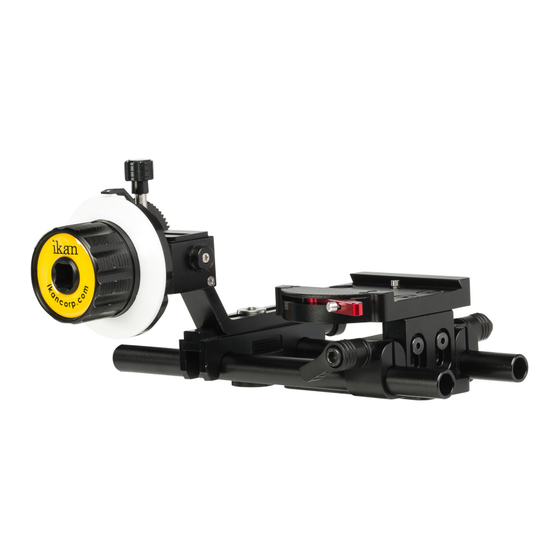

EV3 DSLR Quick Release Baseplate & Follow Focus Kit
CHECKED BY
What's Included
1 x EV3 Baseplate
2 x 12" 15mm Aluminum Rods
1 x FG Follow Focus Cine-Kit (ELE-FGK)
www.ikancorp.com
713.272.8822
Support@ikancorp.com
© 2015 ikan Corporation. All rights Reserved
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ikan ELE-EV3-FFSBP
Summary of Contents for Ikan ELE-EV3-FFSBP
- Page 1 EV3 DSLR Quick Release Baseplate & Follow Focus Kit CHECKED BY What’s Included 1 x EV3 Baseplate 2 x 12" 15mm Aluminum Rods 1 x FG Follow Focus Cine-Kit (ELE-FGK) www.ikancorp.com 713.272.8822 support@ikancorp.com © 2015 ikan Corporation. All rights Reserved...
- Page 2 Getting to know your Quick-Release Baseplate EV3 Quick-Release Baseplate The EV3 baseplate system enables you to quickly and efficiently mount and dismount your camera - Simply press one level and the quick-release button. Anti-Rotation plate prevents your camera from rotating out of alignment. Height Adjustable Use the riser plate to adjust the height of the baseplate to adapt...
- Page 3 Getting to Know your Follow Focus Reaching Out The included 17" FG Follow Focus Whip features vinyl covering and a crank stability grip for smooth control. Utilizing a standard ¾" square connector, the FG Whip provides leverage over distance and smoother focus pulls all around.
- Page 4 Getting Started Adjust FG Follow Focus vertically to slide away or towards the lens, depending on the barrel width. This is an example of the basic completed Follow Focus application.
- Page 5 Follow Focus Specifications Follow Focus Specifications Dimensions 12.25 x 7 x 4.375 In. Weight Rig Specifications EV3 Baseplate Specifications Weight 1.15 lbs Baseplate Type Quick Release Rod Compatibility 15 mm Rod Spacing 60 mm Tripod Mounting 4 x 1/4"-20 Threaded Holes 4 x 3/8"-16 Threaded Holes 1 x 1/4"-20 Threaded Screw Camera Compatibility...
- Page 6 (*Even if the product is still within the warranty period.) • Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company. • Damage caused by natural disaster, abnormal voltage, and environmental factors, etc. ©2015 ikan Corporation. All rights reserved...
