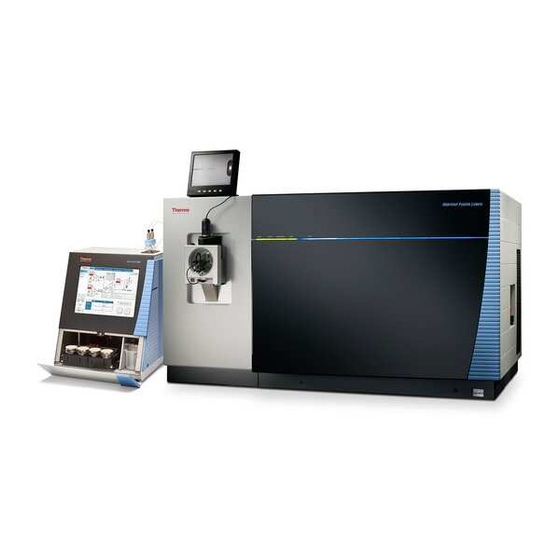

Summary of Contents for Thermo Scientific Orbitrap Fusion
- Page 1 Orbitrap Tribrid Series Getting Connected Guide 80000-97025 Revision A June 2018...
- Page 2 © 2018 Thermo Fisher Scientific Inc. All rights reserved. Fusion, ID-X, Lumos, and Orbitrap ID-X are trademarks, and Orbitrap Fusion, Orbitrap Fusion Lumos, Thermo Scientific, Tribrid, and Xcalibur are registered trademarks of Thermo Fisher Scientific Inc. in the United States.
- Page 3 • Order replacement parts (as specified in the instrument manual) and additional components, options, and periph- erals directly from Thermo Fisher Scientific or an authorized representative. Regulatory compliance results for the following Thermo Scientific™ mass spectrometers: • Orbitrap Fusion Lumos •...
- Page 4 Orbitrap Fusion and Orbitrap ID-X Low Voltage Directive 2014/35/EU This device complies with Low Voltage Directive 2014/35/EU and the harmonized safety standard IEC/EN/CSA/ UL 61010-1, 3rd Edition. EMC Directive 2014/30/EU and other EMC test standards This device was tested by TÜV Rheinland of North America and complies with the following EMC standards:...
- Page 5 WEEE Directive 2012/19/EU Thermo Fisher Scientific is registered with B2B Compliance (B2Bcompliance.org.uk) in the UK and with the European Recycling Platform (ERP-recycling.org) in all other countries of the European Union and in Norway. If this product is located in Europe and you want to participate in the Thermo Fisher Scientific Business-to-Business (B2B) Recycling Program, send an email request to weee.recycle@thermofisher.com with the following information:...
-
Page 7: Table Of Contents
Dual Mechanical Pumps Kit ........23 Thermo Scientific... - Page 8 Index ..............27 viii Orbitrap Tribrid Series Getting Connected Guide Thermo Scientific...
-
Page 9: Preface
This guide describes how to install the MS system in your laboratory and connect any external liquid chromatography (LC) devices. External devices include those that are controlled from or are independent of Thermo Scientific mass spectrometry applications, such as the Thermo Xcalibur™ data system. For a list of hardware differences for this MS series, see Model Differences. -
Page 10: Accessing Documentation
Providing Documentation Feedback To suggest changes to the documentation or to the Help Complete a brief survey about this document by clicking the button below. Thank you in advance for your help. Orbitrap Tribrid Series Getting Connected Guide Thermo Scientific... -
Page 11: Special Notices, Symbols, And Cautions
Risk of eye injury: Eye injury can occur from splattered chemicals, airborne particles, or sharp objects. Wear safety glasses when handling chemicals or servicing the instrument. Trip obstacle: Be aware of cords, hoses, or other objects located on the floor. Thermo Scientific Orbitrap Tribrid Series Getting Connected Guide... -
Page 12: Model Differences
Advanced EASY-IC EASY-ETD 1M Orbitrap UVPD peak ion source ion source resolution laser module determination Orbitrap Fusion Lumos Orbitrap Fusion Orbitrap ID-X Orbitrap Tribrid Series Getting Connected Guide Thermo Scientific... -
Page 13: Contacting Us
Note To provide feedback for this document, go to surveymonkey.com/s/PQM6P62 or send an email message to Technical Publications (techpubs-lcms@thermofisher.com). You can use your smartphone to scan a QR Code, which opens your email application or browser. Thermo Scientific Orbitrap Tribrid Series Getting Connected Guide xiii... - Page 14 Preface Orbitrap Tribrid Series Getting Connected Guide Thermo Scientific...
- Page 15 Before you begin, lift up and remove the workbench’s front panel. To determine which instrument requires two forepumps, see Model Differences. CAUTION Possible pinch points. Be aware where you place your hands when you remove or attach the workbench’s front panel. Thermo Scientific Orbitrap Tribrid Series Getting Connected Guide...
-
Page 16: Chapter 1 Connecting The Forepump For The Vacuum System
• For a single-forepump MS system, place the forepump under the workbench or within 2.4 m (8 ft) of the instrument. • Prevent the forepump from overheating by ensuring that there is sufficient air clearance around each forepump. Orbitrap Tribrid Series Getting Connected Guide Thermo Scientific... -
Page 17: Connecting The Forepumps To The Lab Exhaust System
To connect the forepumps to the exhaust system (Orbitrap Fusion Lumos MS) If you removed the workbench’s front panel (as shown), reattach it. Connect one end of the exhaust tubing to the forepump exhaust ports. -
Page 18: Locking The Workbench Wheels
The locking levers have three positions. To fully unlock the roll and swivel movements, push the levers back to the third position (almost horizontal). 3. Reattach the front panel when you are ready. Orbitrap Tribrid Series Getting Connected Guide Thermo Scientific... - Page 19 690 ±140 kPa 11 500–26 700 L API source auxiliary gas, (100 ±20 psi) (406–943 ft sheath gas, and sweep gas Approximate value when operating 24 hours and 7 days a week Thermo Scientific Orbitrap Tribrid Series Getting Connected Guide...
-
Page 20: Chapter 2 Connecting The Nitrogen And Helium Gases
To connect the gas lines to the back of the MS (Orbitrap Fusion Lumos MS) (HP nitrogen gas) Cut a length of the Teflon™ PFA tubing and push it into the Nitrogen In inlet. On the other end, connect an appropriate fitting that connects to your HP nitrogen gas supply. - Page 21 • Do not shut off the UHP nitrogen gas unless you have vented the MS. • If you intend to use helium for sparging your LC solvents, you must have a second tank and regulator. Thermo Scientific Orbitrap Tribrid Series Getting Connected Guide...
- Page 22 Connecting the Nitrogen and Helium Gases Connecting the Instrument Gas Lines Orbitrap Tribrid Series Getting Connected Guide Thermo Scientific...
- Page 23 Connecting the API Source and Waste Container To install the Thermo Scientific API source and the solvent waste container to the Orbitrap Tribrid Series MS, follow these procedures. Contents • Installing the API Source • Setting Up the Fume Exhaust Connections •...
-
Page 24: Chapter 3 Connecting The Api Source And Waste Container
Tygon™ drain tube (or any vent tubing connected to the waste container) to the same fume exhaust system that connects to the forepump. The exhaust system for the API source must accommodate a flow rate of up to 30 L/min (64 ft /h). Orbitrap Tribrid Series Getting Connected Guide Thermo Scientific... -
Page 25: Connecting The Solvent Waste Container
To connect the solvent waste container to the MS Connect the tubing to the MS’s Drain/Waste port and (Orbitrap Fusion Lumos MS) the external vent system. Connect the filling/venting cap to the solvent waste container Then, connect the Tygon waste tubing (1 in. - Page 26 Connecting the API Source and Waste Container Connecting the Solvent Waste Container Orbitrap Tribrid Series Getting Connected Guide Thermo Scientific...
-
Page 27: Installing The Syringe Pump And Modular Valve
Place the valve on the bottom shelf; using the (Not shown) Place the assembly on the top, left screwdriver and two screws, attach the top shelf. surface of the MS and adjust its position as needed. Thermo Scientific Orbitrap Tribrid Series Getting Connected Guide... - Page 28 Installing the Syringe Pump and Modular Valve Orbitrap Tribrid Series Getting Connected Guide Thermo Scientific...
-
Page 29: Connecting The Cables And Power Cords
CAUTION Safety and EMC regulations require the use of Category 5e, shielded Ethernet communication cables, maximum 3 m (10 ft) long. CAUTION After completing these connections, route all cables and power cords so that they are not a trip hazard. Thermo Scientific Orbitrap Tribrid Series Getting Connected Guide... - Page 30 Tip For troubleshooting purposes, you might want to record which devices connect to which ports on the Ethernet switch. The back of the data system computer might not be as shown. Orbitrap Tribrid Series Getting Connected Guide Thermo Scientific...
- Page 31 Contact Closure Signal The Orbitrap Tribrid Series MS can start data acquisition upon receiving a contact closure (start) signal from an external LC device, which is typically an autosampler. Thermo Scientific mass spectrometry applications can control external devices (for example, autosamplers, pumps, and detectors) from several manufacturers including Thermo Fisher Scientific, Agilent Technologies, and Waters Corporation.
- Page 32 Peripheral Control Ground Earth ground. Provides a 5 Vdc, 500 mA output (with pin 1). Orbitrap Tribrid Series Getting Connected Guide Thermo Scientific...
-
Page 33: Chapter 6 External Devices
10V Max: (Channel 1) Provides a connection for an external + (positive, pin 7) and device, such as an LC instrument. – (negative, pin 8) Input: 0–10 Vdc (voltage clamps at 15 Vdc) Thermo Scientific Orbitrap Tribrid Series Getting Connected Guide... -
Page 34: Communication Connectors
Ethernet 1000 Base T Provides a connection for the Ethernet switch. Figure 1. Communication connectors (left side of the MS) Reset button Peripheral Control connector Analog Input connector USB ports Ethernet port Orbitrap Tribrid Series Getting Connected Guide Thermo Scientific... -
Page 35: Syringe Pump And Modular Valve Assembly
Chemyx™ Fusion 100T syringe pump with a power cord 00109-99-00045 and USB interface cable Rheodyne™ MX Series II™ modular divert/inject valve 00109-99-00046 (six-port, two-position) with an ac adapter, power cord, USB interface cable, and high-pressure fitting sets Thermo Scientific Orbitrap Tribrid Series Getting Connected Guide... -
Page 36: Single Mechanical Pump Kit
NW40 Swing clamp, aluminum, NW32/40 00108-02-00004 Exhaust waste connection Tubing, Tygon, 3/4 in. (19.1 mm) OD, 0.5 in. 00301-22920 (12.7 mm) ID, 3 m (10 ft) long Only one piece is required. Orbitrap Tribrid Series Getting Connected Guide Thermo Scientific... -
Page 37: Dual Mechanical Pumps Kit
Exhaust waste connection Fitting Tee, barbed, nylon, for 0.5 in. (12.7 mm) ID 00103-01-00012 tubing Tubing, Tygon, 3/4 in. (19.1 mm) OD, 0.5 in. 00301-22920 (12.7 mm) ID, 6 m (20 ft) long Thermo Scientific Orbitrap Tribrid Series Getting Connected Guide... - Page 38 (1.57 mm) thick, 4.6 m (15 ft) long (for the HP nitrogen gas) – Fittings to connect the copper and PFA tubings to the – – gas supplies (customer provided) Solvent waste connection Container, Nalgene™, 4 L heavy-duty; filling/venting cap 80100-20265 Orbitrap Tribrid Series Getting Connected Guide Thermo Scientific...
- Page 39 Part numbers are provided for Thermo Fisher Scientific field service use only. “International” designation is for countries or territories that do not use the North American plug configuration. Not specified in this guide Thermo Scientific Orbitrap Tribrid Series Getting Connected Guide...
- Page 40 Installation Kits and Power Cords Power Cords Orbitrap Tribrid Series Getting Connected Guide Thermo Scientific...
- Page 41 FCC compliance start signal forepump connections See contact closure, start instrument signal fume exhaust system cautions vacuum hose symbols, meaning forepumps fume exhaust system cautions gas ballast valve, opening maintenance instructions Thermo Scientific Orbitrap Tribrid Series Getting Connected Guide...
- Page 42 Index: T Thermo Fisher Scientific website, user documents tools troubleshooting, Ethernet switch valve, LED viewing documents WEEE directive workbench forepump placement wheels Orbitrap Tribrid Series Getting Connected Guide Thermo Scientific...
