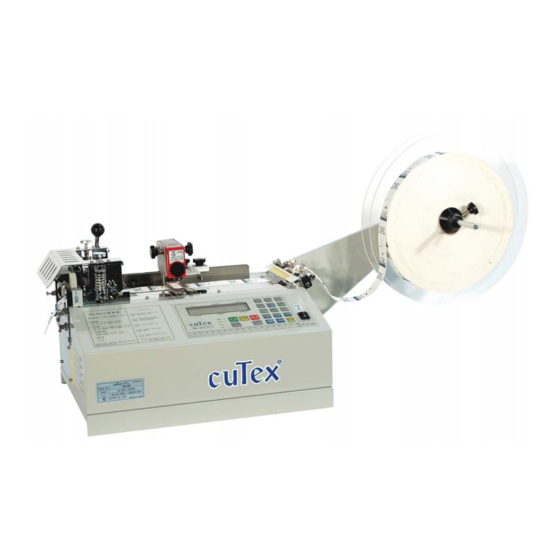

- Page 2 How to operate TBC-50S 1. An example (Cutting length : 70mm, Cutting quantity : 120 pcs) ▷ Turn on the POWER SW. ▷ Set cutting length 70mm. (Press the following buttons in order.) ☞ S E T LENGTH LENGTH ⇒ ⇒...
- Page 3 ▷ Set function.(Sensor cutting: "1", Normal cutting : "0") ☞ FILE S E T EXTRA Sensor cutting : ⇒ ⇒ ☞ FILE S E T LENGTH Normal cutting : ⇒ ⇒ CLEAR ▷ Locate the cutting line of label on the lower knife blade. (This step must go ahead of sensor adjustment.) ▷...
- Page 4 R58 EXPERT How to use sensor ① Mount the sensor on the guide-rail and connect the jack of sensor into the connector of machine downside. ★② Locate the cutting line of label on the lower knife blade precisely & move the sensor close to the knife. (This step is essential just before fix the location of sensor.) ③...
- Page 5 ★④ Position the light spot on the background of label and when you press STATIC button 2 seconds, Lamp "Delay" & "L/D" blink & flicker too. ⑤ Move the light spot to the mark(cutting line or figure, letters) and when you press TEACH button, lamp delay, L/D will be off and Q/T will stop blinking.
- Page 6 2. Key functions FILE : Function for label cutting LENGTH : Current length on display will be back to “0” at a stop. CLEAR RESET : All of current length and current q‘ty on display will be back to "0". M/CUT : Moving knife only.
- Page 7 3. Specification Cutting Max. Model Main Cutting Cutting Power Range of Machine Size Packing Size Q'ty/min. Cutting Name Materials Knife Supply Cutting Length (Net weight) (Gross weight) Width (Length: 50mm) TBC-50S AC110/220V 1mm~ 850×320×380 535×430×340 (Label Label Cold 110mm 120～140 cuts 50/60Hz 300M (19.5kgs)
- Page 8 Take off the power plug and exchange as picture. Cleaning of anti-static brush If anti-static function becomes weak, clean the anti-static brush by other brush. 泰 友 精 密 TAEWOO CO., LTD. ADDRESS : A-302, 1025-1 DOGOK-RI, WABU-EUP, NAMYANGJOO, KYONGGI-DO, KOREA TEL ＋82 31 521-6904～7 FAX ＋82 31 521-6908...
- Page 9 TBC-50S Part Drawing A (Feeding part) E-mail : cutex@chol.com http://www.cutex.kr - 8 -...
- Page 10 TBC-50S Part List A (Feeding part) Part No. Description Part No. Description Clamping Bolt(M3×5L) A-26 Guide Clamping Bracket Knife Safety Cover A-27 Stopper Space Plate of Roller Bracket A-27-1 Stopper Bracket Clamping Bolt(M3×5L) A-27-2 Pressure Stopper Shaft Pressure-control Bolt A-27-3 Rubber Ring Pressure-control Spring Cover A-27-4...
- Page 11 TBC-50S Part Drawing B (Cutting part) E-mail : cutex@chol.com http://www.cutex.kr - 10 -...
- Page 12 TBC-50S Part List B (Cutting part) Part No. Description Part No. Description Upper Knife Case B-27 Clamping Bracket Upper Knife B-28 Clamping Bolt (M3×5L) B-10 Neck Washer B-29 Lower Knife Case B-11 Wrench Bolt (M5×15L) B-30 Wrench Bolt (M5×15L) B-12 Counting Sensor Bracket B-31 Pressure Plate (Right)
- Page 13 TBC-50S Part Drawing C (Other part) E-mail : cutex@chol.com http://www.cutex.kr - 12 -...
- Page 14 TBC-50S Part List C (Other part) Part No. Description Part No. Description Roll-hanger Wheel C-32 Liner Clamping Bolt of Holder C-33 Height-control Bolt of Sensor Holder C-34 Position-control Bolt of Sensor Roll-hanger Shaft C-35 Plate-nut of Sensor Guide Roll-hanger Shaft Washer C-36 Sensor Guide Check Nut(M6)
- Page 15 E-mail : cutex@chol.com http://www.cutex.kr - 14 -...
- Page 16 Trouble-shooting of TBC-50 series Troubles Appicable model Causes & Measures - Check if electric cord is connected well. No power supply All models - Check if the fuse blows out or not. - Check if there is inserted any alien substance in roller.
