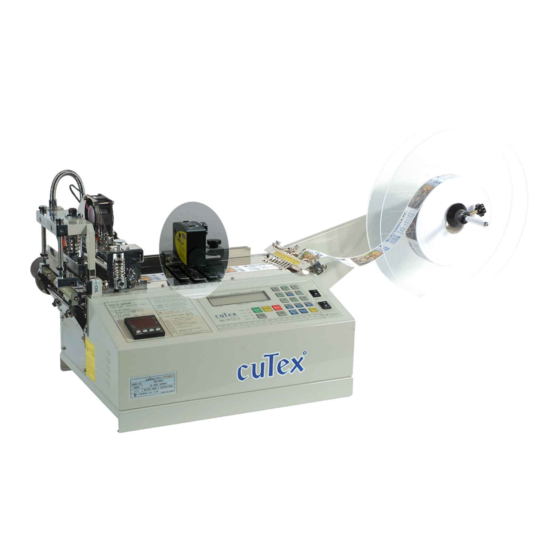

- Page 2 CLEAR Button "0" has a double functions of "0" and eraising current length. Set cutting quantity 120 PCs. ☞ SPEED ⇒ ⇒ ⇒ ⇒ LENGTH EXTRA Q ‘T Y S E T CLEAR E-mail : taewoo@cutex.kr http://www.cutex.kr - 1 -...
- Page 3 Troubles in cutting, - Check if you adjust sensor after locating cutting line of label on the knife blade. - Move the sensor forwards or backwards. - Check sensitivity & height of the sensor. E-mail : taewoo@cutex.kr http://www.cutex.kr - 2 -...
- Page 4 & move the sensor close to the knife. (This step is essential just before fix the location of sensor.) ③ Adjust the sensor with guide-control bolt for lightening the beam on the center of marking point. E-mail : taewoo@cutex.kr http://www.cutex.kr - 3 -...
- Page 5 Move the light spot over the mark (cutting line or figure, letters) and then press SET button. ⑤ Move the light spot on the background (blank, not printed area) and then press "SET" button again. E-mail : taewoo@cutex.kr http://www.cutex.kr - 4 -...
- Page 6 If you did it correctly, when you make sensor light indicate cutting line, the "out" lamp is on. (Caution) ※ In the case of objects with reflective or shiny surface, tilt sensor by 10° to 15° relative to surface. E-mail : taewoo@cutex.kr http://www.cutex.kr - 5 -...
- Page 7 R E S E T button or power off & on. : to insert new program between programs inputted already in time of program- input. E-mail : taewoo@cutex.kr http://www.cutex.kr - 6 -...
- Page 8 First of all, move up the upper knife to top level and power off and take off the presser of upper knife after unscrewing 2 bolts by 4mm-wrench. ② Take off the upper knife frame by 6mm-wrench. E-mail : taewoo@cutex.kr http://www.cutex.kr - 7 -...
- Page 9 & lower knife plate and power off & adjust gap or pressure by 7mm-spanner. (Clockwise turn of spanner makes the lower knife plate up, anti-clockwise turn makes it down.) E-mail : taewoo@cutex.kr http://www.cutex.kr - 8 -...
- Page 10 Exchange of fuse Fix the roll triangle by 4mm-wrench. Take off the power plug and exchange as picture. Cleaning of anti-static brush If anti-static device does not work, clean the anti-static brush by other brush. E-mail : taewoo@cutex.kr http://www.cutex.kr - 9 -...
- Page 11 And, wait until it reaches set temperature. Please turn off machine, before cleaning the knife blade. 1. Please raise up the pressing roller set. 2. Scrape dregs off. 3. After cleaning, please set pressing roller back. E-mail : taewoo@cutex.kr http://www.cutex.kr - 10 -...
- Page 12 And the upper front feeding roller is lower than hot knife, the front feeding roller will pull out the label before the label is sealed well. So the other side will be hairy. E-mail : taewoo@cutex.kr http://www.cutex.kr - 11 -...
- Page 13 So the one side is sealed well and the other side is hairy, just like below image. The next page, you can see how to adjust the height of upper front feeding roller. E-mail : taewoo@cutex.kr http://www.cutex.kr - 12 -...
- Page 14 Please set proper height of upper front feeding roller, refer to below images. If you need any further information, please contact us at any time. Mail : cutex@chol.com E-mail : taewoo@cutex.kr http://www.cutex.kr - 13 -...
- Page 15 TBC-50SH Part Drawing A (Feeding part) E-mail : taewoo@cutex.kr http://www.cutex.kr - 14 -...
- Page 16 A-17 Clamping Bolt(M3×5L) A-39 Clamping Bolt(M3×5L) A-18 Feed-timing Gear(MXL30T) A-40 Left Roller Bracket A-19 Detent Screw(M4×6L) A-41 Oilless A-20 Drive-timing Gear(MXL20T) A-42 Space Plate of Roller Bracket A-21 Detent Screw(M3×6L) A-22 Timing Belt(MXL75) E-mail : taewoo@cutex.kr http://www.cutex.kr - 15 -...
- Page 17 TBC-50SH Part Drawing B (Cutting part) E-mail : taewoo@cutex.kr http://www.cutex.kr - 16 -...
- Page 18 Heater Wiring Pipe(2) B-36 Wrench Bolt(M5×15L) B-77 Upper Pipe Bracket B-37 Hexagon-head Bolt(M4×8L) B-78 Wrench Bolt(M4×15L) B-38 Lower Knife Case B-79 Lower Pipe Bracket B-39 Ball Bearing(#6004) B-80 Wrench Bolt(M4×15L) B-40 Snap Ring E-mail : taewoo@cutex.kr http://www.cutex.kr - 17 -...
- Page 19 TBC-50SH Part Drawing C (Other part) E-mail : taewoo@cutex.kr http://www.cutex.kr - 18 -...
- Page 20 Operation Circuit Board(OP) C-31 Height-control Bolt of Sensor C-65 Drive Circuit Board(DR) C-32 Liner C-66 SMPS(Power Supply,SP) C-33 Height-control Knob of Sensor C-67 Toggle Switch C-34 Position-control Knob of Sensor C-68 Power Switch E-mail : taewoo@cutex.kr http://www.cutex.kr - 19 -...
- Page 21 E-mail : taewoo@cutex.kr http://www.cutex.kr - 20 -...
- Page 22 E-mail : taewoo@cutex.kr http://www.cutex.kr - 21 -...
- Page 23 - While auto-tuning, if you want to stop auto-tuning, plesae press “ ” and “ ” simultaneously. If so, AT lamp turns off and auto-tuning stops. - If you change SV (set temperature) during auto-tuning, auto-tuning stops and temp. controller will use previous parameter. E-mail : taewoo@cutex.kr http://www.cutex.kr - 22 -...
- Page 24 E-mail : taewoo@cutex.kr http://www.cutex.kr - 23 -...
- Page 25 After exchange ROM, you should do initialize the controller, due to error message, if you cannot do initialization, please press "SHIFT/ESC' button to escape error message screen and then initialize the controller. E-mail : taewoo@cutex.kr http://www.cutex.kr - 24 -...
- Page 26 Please contact following address for further information. 태 우 정 밀 TAEWOO CO., LTD. ADDRESS : A-302, 1025-1 DOGOK-RI, WABU-EUP, NAMYANGJOO, KYONGGI-DO, KOREA (Postcode : 472-908) ＋ ～ 82 31 521-6904 ＋ 82 31 521-6908 E-mail : taewoo@cutex.kr Homepage : http://www.cutex.kr Please do not disassemble / modify machine or its part without any permission.
