Control Panel Interface

See Figure 3-5. The control panel interface (A) is located
under the lid of the enclosure. Verify that both the left and
right side locks are unlocked before attempting to lift the
lid of the enclosure. Open the lid as directed in
the Lid.
The 7.5A fuse is located beneath the rubber cover (B) to
the right of the control panel.
Verify that both the left and right side locks are securely
out of the way before closing the unit.

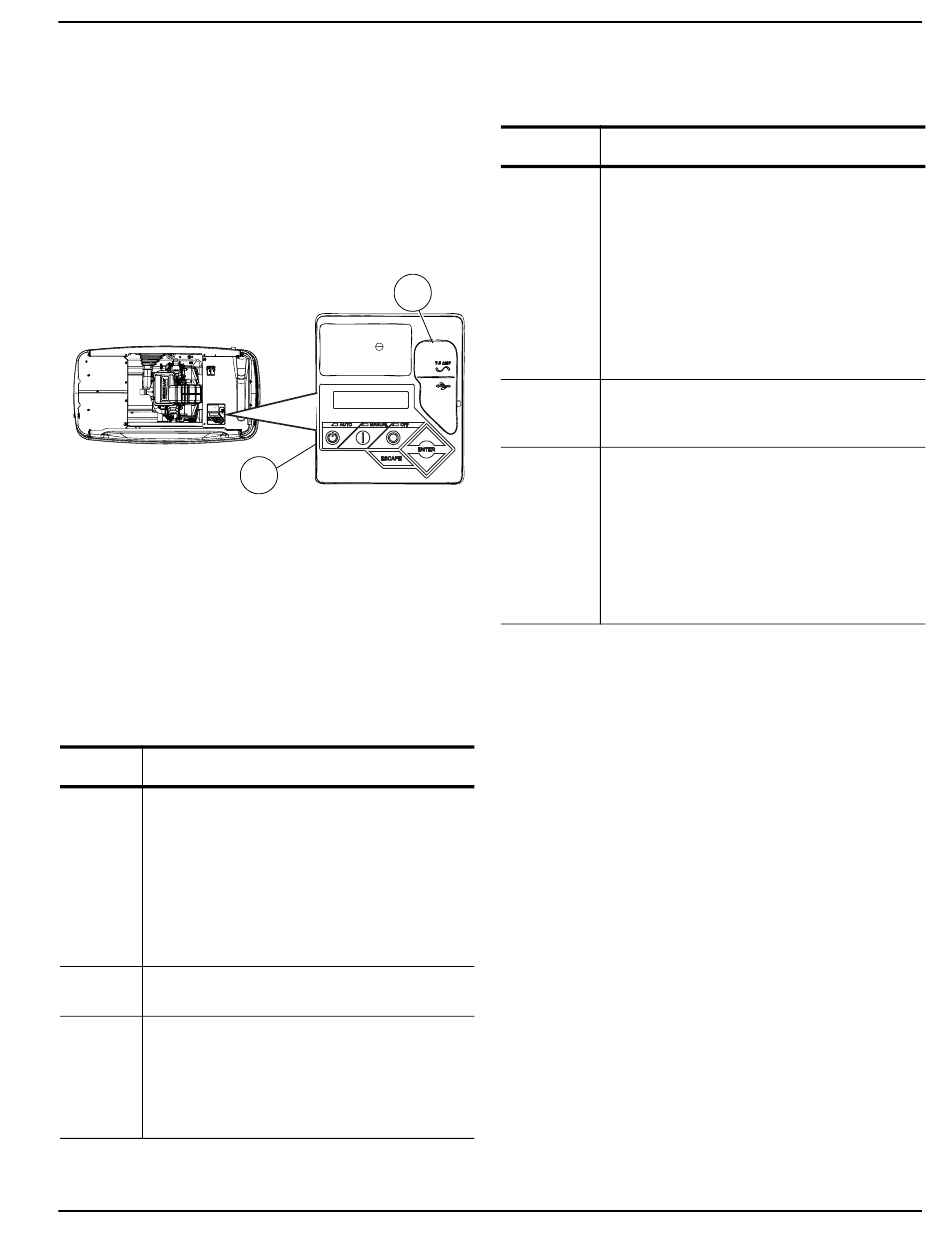

Figure 3-5. Generator Control Panel
All appropriate panels must be in place during any
operation of the generator. This includes operation by a
servicing technician while conducting troubleshooting
procedures.
Using the AUTO/OFF/MANUAL
Interface
Button Description of Operation
This button activates fully automatic system
operation. It allows the unit to automatically
start and exercise the generator according to
the exercise timer (see
Timer
AUTO
).
The Green LED on this button will flash if
running in Automatic mode and the connected
loads are running under generator power (utility
is lost).
This button shuts down the engine and
OFF
prevents automatic operation of the unit.
This button cranks and starts the generator.
Transfer to standby power will not occur unless
there is a utility failure.
MANUAL
The blue LED on this button will flash if running
in manual mode and the connected loads are
running under generator power (utility is lost).
NOTE: Damage caused
interconnect wires is not warrantable.
Owner's Manual for 60 Hz Air-Cooled Generators
Opening
B
A
001798
Setting the Exercise
by mis-wiring of

Interface Menu Displays

The LCD Panel

Feature
Default page that is displayed if no buttons are
pressed for 60 seconds. Normally shows
current status message and the current date
and time. The highest priority active alarm/
warning is automatically posted on this page,
HOME
as well as flashing the backlight when such a
page
condition is detected. In the case of multiple
alarms/warnings, only the first message will be
displayed. Press the OFF button and then
press the ENTER button to clear an alarm or
warning.
Normally off. The backlight will automatically
Display
light and remain on for 30 seconds if the
Backlight
operator presses any button.
Allows the operator to navigate to all other
pages or sub-menus by using the arrow keys
and the ENTER button. Page can be accessed
MAIN at any time with several presses of the
MENU dedicated ESCAPE button. Each press of the
page ESCAPE button takes the operator to the
previous menu until the MAIN MENU displays.
This page contains information for - History;
Status; Edit; Debug.
the
Operation
Description
13
