Ikan PT-Elite-UGK Quick Start Manual

Elite ipad teleprompter upgrade kit
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual

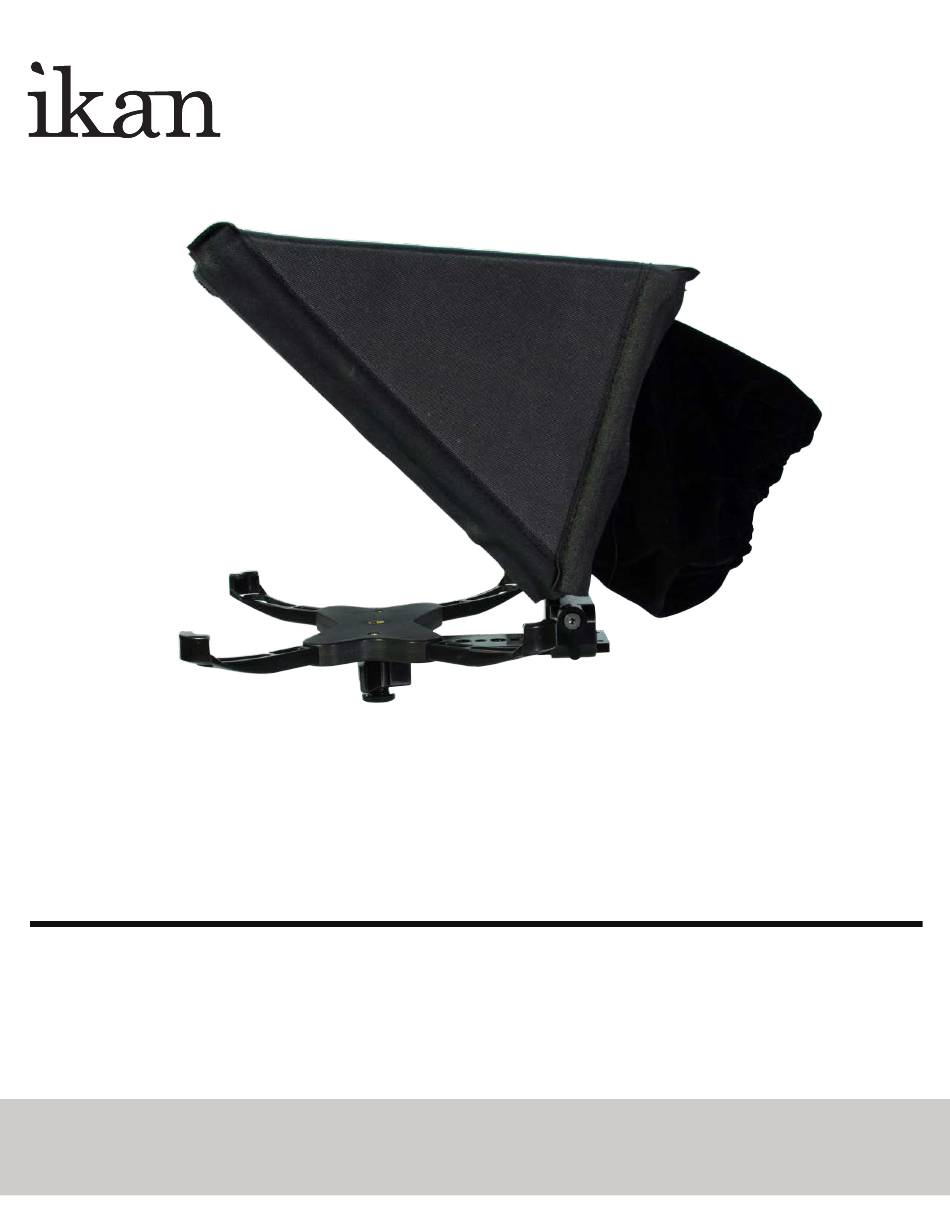

PT-Elite-UGK
Elite iPad Teleprompter Upgrade Kit
QUICKSTART GUIDE
CONDITIONS OF WARRANTY SERVICE
• Free service for one year from the day of purchase if the problem is caused by manufacturing errors.
• The components and maintenance service fee will be charged if the warranty period has expired.
Free Service will not be Provided in the Following Situations: (*Even if the product is still within the warranty period.)
• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.
• Damage caused by natural disaster, abnormal voltage, and environmental factors etc.
www.ikancorp.com
3903 Stoney Brook Dr. Houston TX 77063
1.713.272.8822
support@ikancorp.com
© 2010 ikan Corporation. All right reserved

Advertisement

loading
Need help?

Need help?

Do you have a question about the PT-Elite-UGK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ikan PT-Elite-UGK

Summary of Contents for Ikan PT-Elite-UGK

  • Page 1 • Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company. • Damage caused by natural disaster, abnormal voltage, and environmental factors etc. 3903 Stoney Brook Dr. Houston TX 77063 1.713.272.8822 support@ikancorp.com © 2010 ikan Corporation. All right reserved...
  • Page 2 PT-Elite-UGK Page 1 Elite iPad Teleprompter Upgrade Kit QUICKSTART GUIDE What’s included  Hood  30/70 Prompter Glass  Glass Frame LBP-03  iPad Teleprompter Mount  iPad Protection Bumper  1 x HEX KEY 3mm  1 x D-Ring ...

  • Page 3: Getting Started

    PT-Elite-UGK Page 2 Elite iPad Teleprompter Upgrade Kit QUICKSTART GUIDE GETTING STARTED 1. Loosen the thumb screw. Turn LBP-03 90° and tighten it. LBP-03 2. Slide the iPad Mount through the iPad Protection Bumper. Note: The use of the iPad Protection Bumper is optional.
  • Page 4 PT-Elite-UGK Page 3 Elite iPad Teleprompter Upgrade Kit QUICKSTART GUIDE 3. Fit Frame to iPad Mount. Secure with 2 x Socket Head Countersink Screw. Bottom view of iPad Mount and Frame. ** Align the 2 holes under the iPad Mount to the highlighted sets of holes on LBP-03.
  • Page 5 PT-Elite-UGK Page 4 Elite iPad Teleprompter Upgrade Kit QUICKSTART GUIDE 4. Remove 4 x small frame screws and 2 x brackets. Insert prompter glass into frame. Secure prompter glass by replacing brackets and screws. NOTE: Each side of a piece of 30/70...
  • Page 6 PT-Elite-UGK Page 5 Elite iPad Teleprompter Upgrade Kit QUICKSTART GUIDE 5. Secure your 15mm rod based system to the Rod Clamp. Rod Clamp www.ikancorp.com 713-272-8822...
  • Page 7 PT-Elite-UGK Page 6 Elite iPad Teleprompter Upgrade Kit QUICKSTART GUIDE 6. Apply Velcro to Glass Frame border. Attach Hood. www.ikancorp.com 713-272-8822...
